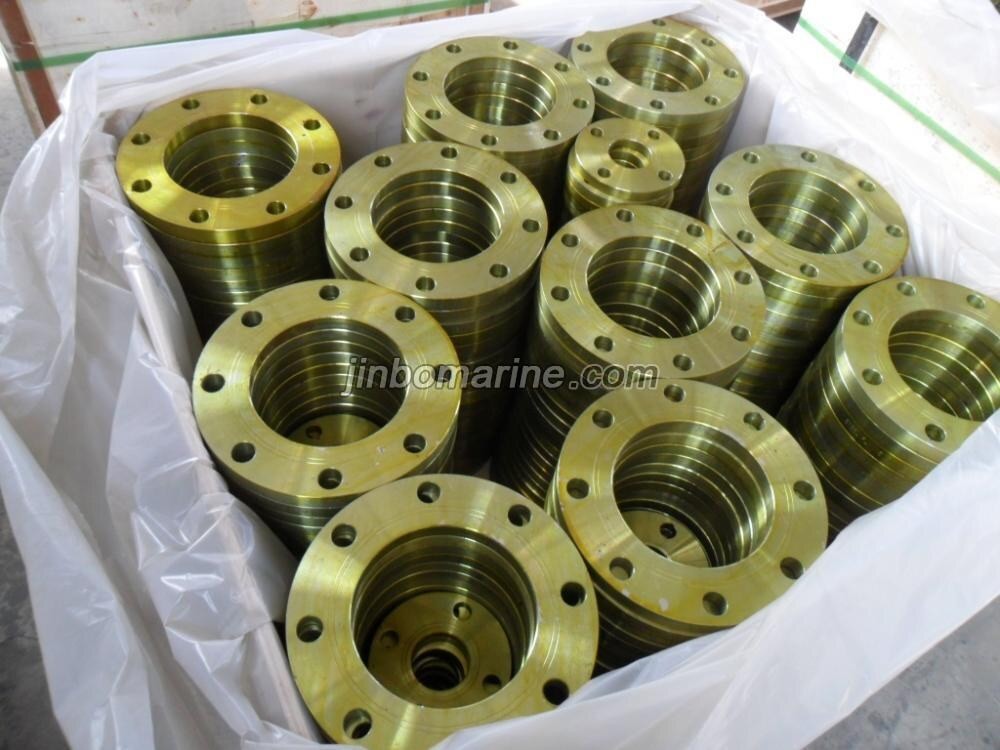

HG20593-97 Raised Face 16bar Varnish Plate Flange

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

Product Description:

HG20593－97 Chemical standard 16bar Varnish Plate Flange.

16bar Plate Flange Outside Diameter:14mm-530mm.

16bar Bolt Hole Spacing Varnish Plate Flange:60mm-650mm.

RF Plate Flange Thickness:14mm-46mm.

Specification:

Norminal
Diamete

Pipe Outside
Diameter

PN1.6MPa RF Plate Flange

Flange OD

Flange ID

Bolt Hole
Spacing

Flange
Thickness

Diameter of
Bolt Hole

10

14

90

15

<
