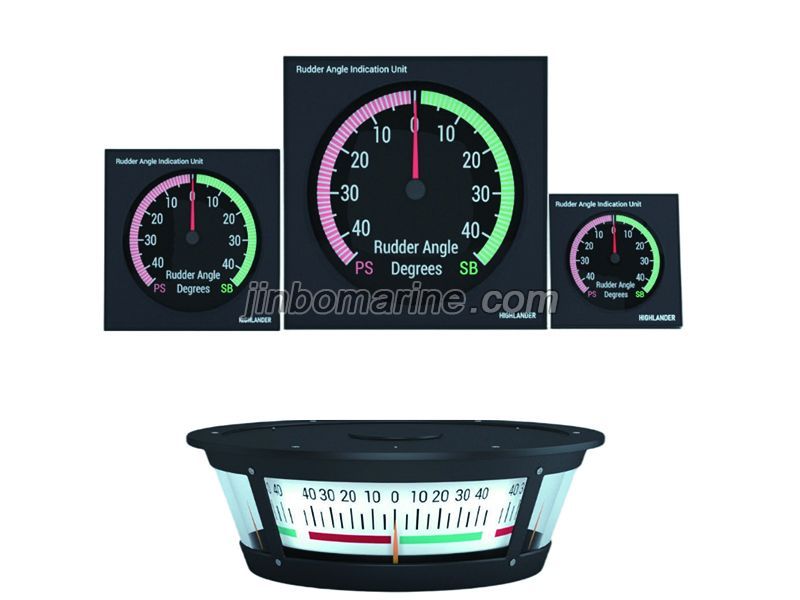

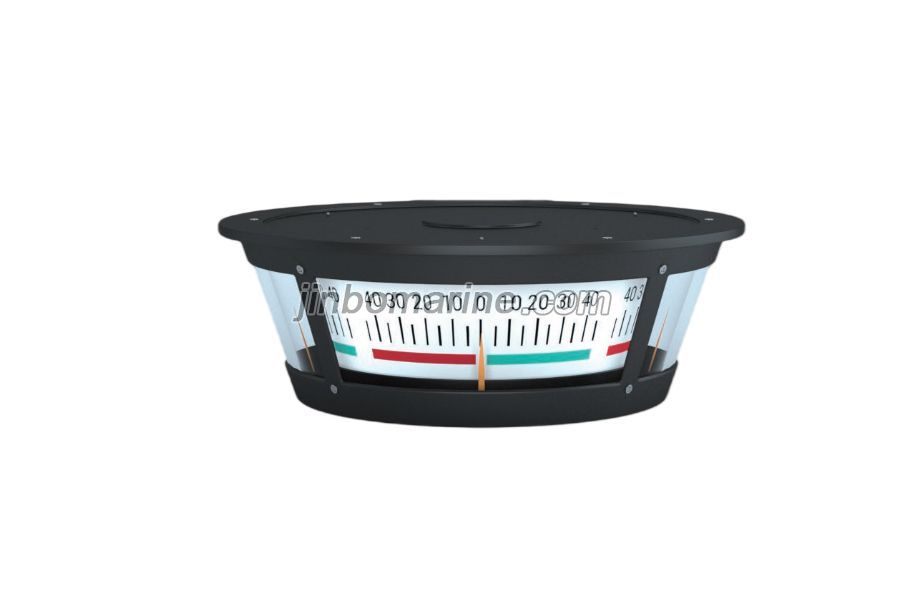

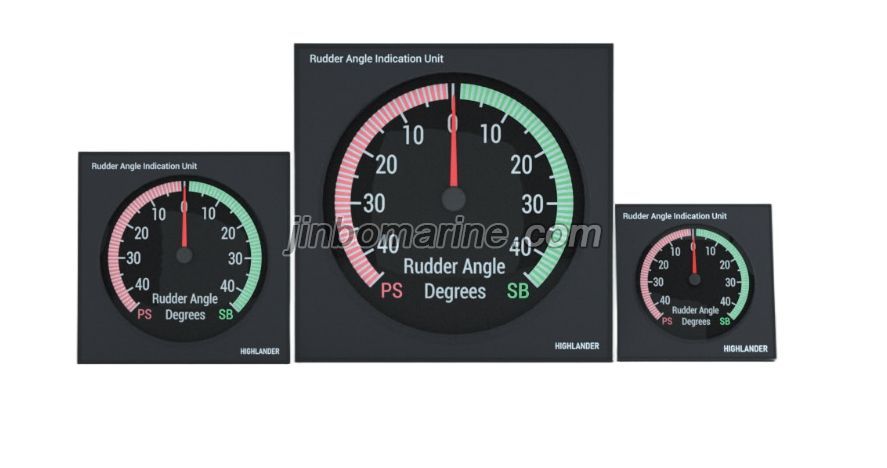

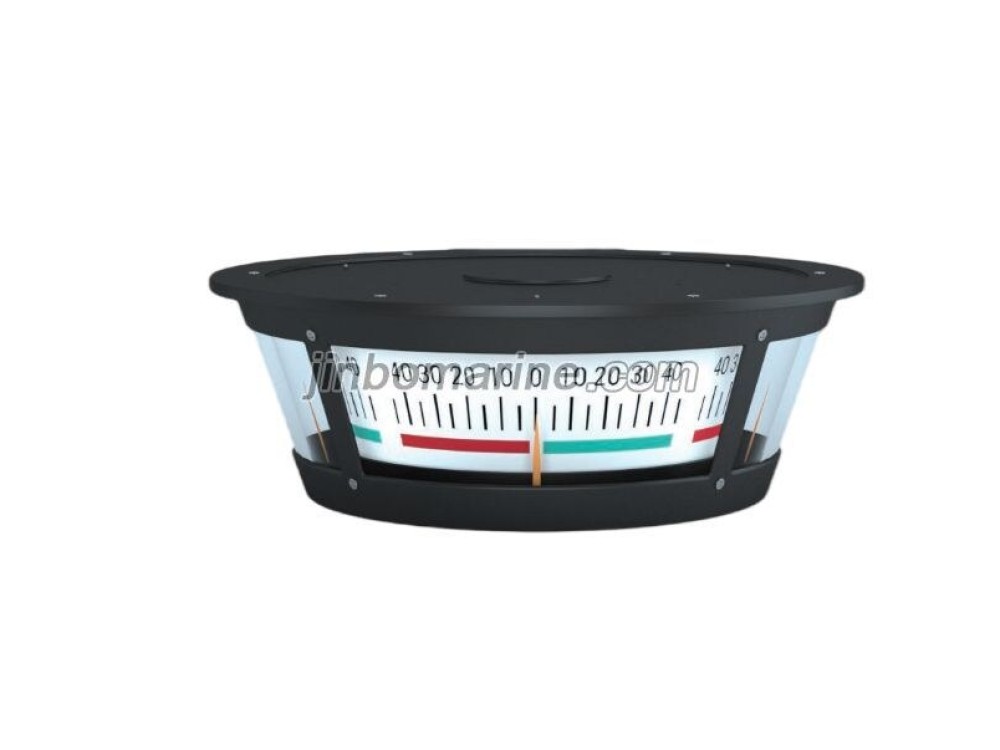

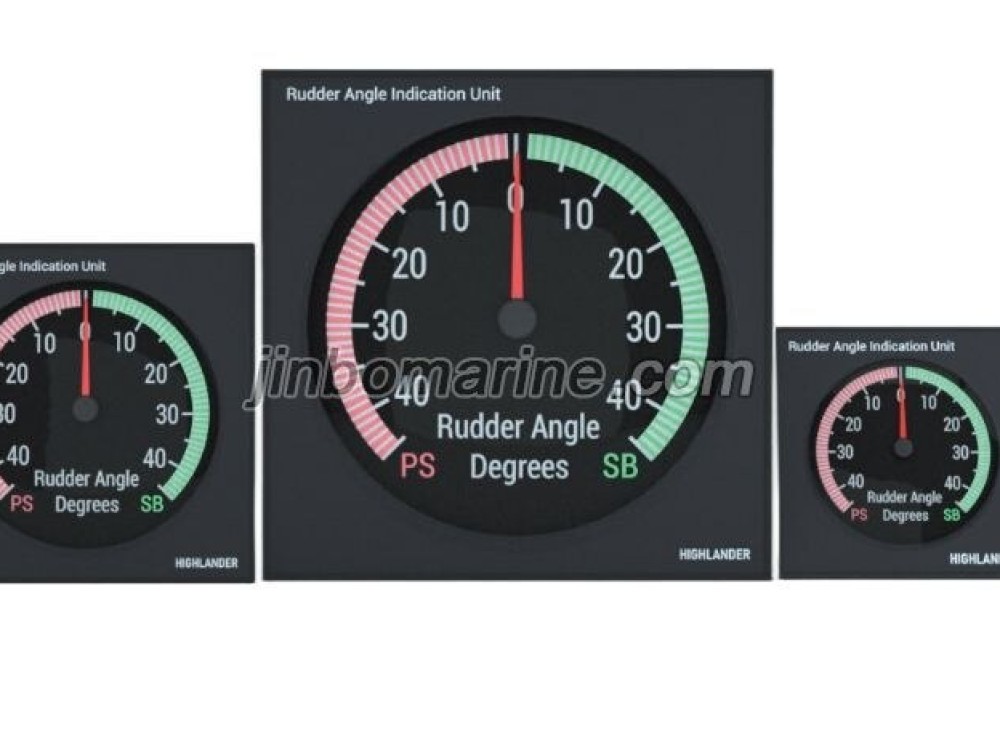

HLD-RAIS100 Rudder Angle Indication System

HLD-RAIS100 Rudder Angle Indication System

The Rudder Angle Transmitter is mechanically linked and synchronised to the rudder stockto simultaneously transmit the rudder angle information to the connection unit, Theconnection unit process the rudder angle value and transmits rudder angle value to allconnection indicators,The transmission is a chieved using with the latest CAN bus technol-ogy that allows self-synchronization of the indicators and ease of calibration of the system.An unlimited number of indicators can be connected to the system, The system alsoprovides outputs in IEc 61162 format for external equipment.

System specifications:

Performance Standards: According tol5020673-2007、1M0 Resolution A.1021、MSC64(67)

EMC/EMI: According to lEC 60945 ed4.0 (2002)

Power Supply: 110/220VAC,50/60Hz and 24VDC; Consumption<30W

Language:English

Interface: 8x Output for Indicators、2x IEC 61162 for VDR, etc

1x ON/OFF Volt-free Alarm contact for system failure

Scale ranges: 士35、士45 or +65 degrees,Division scale:1 degree

Accuracy: Less than 0.5 degree error

Damping time：<3 seconds
