HLD Series-Single Stage Hydraulic Bolt Tensioner

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

China HLD Series-Single Stage Hydraulic Bolt Tensioner:

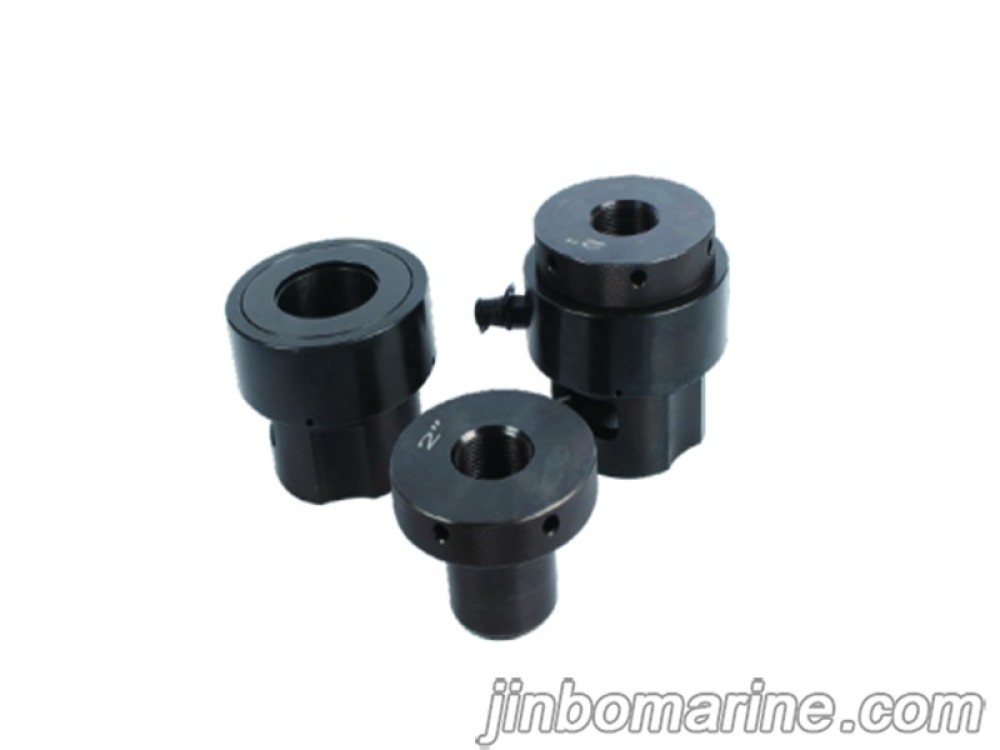

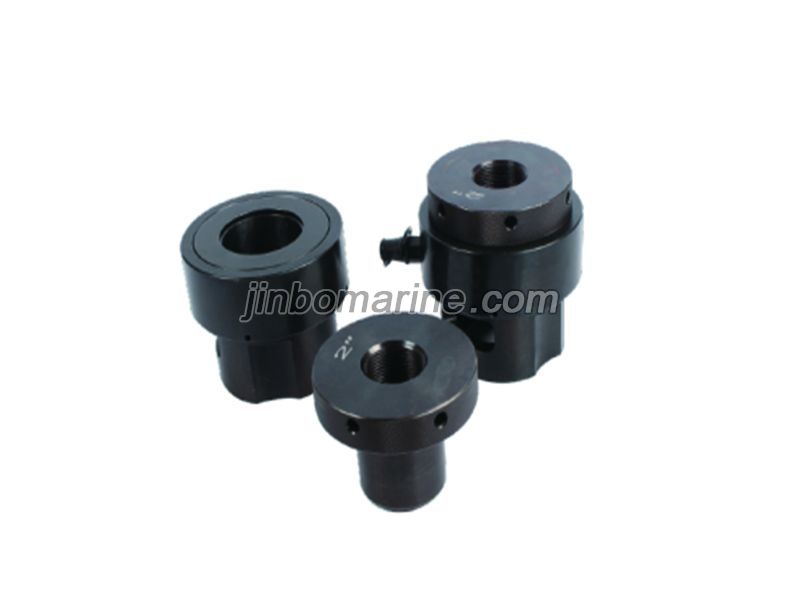

HLD Series-Single Stage Hydraulic Bolt Tensioner

Use a maximum pressure of 150 MPa.

Compact and easy to maintain.

Small size and light weight.

Easy to replace the tie rod.

Commonly used in petrochemical industry conditions.

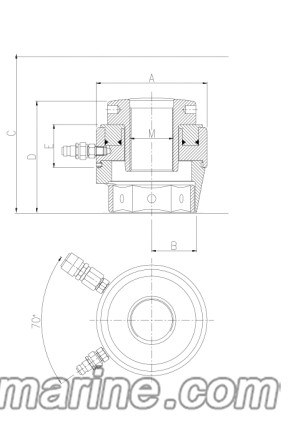

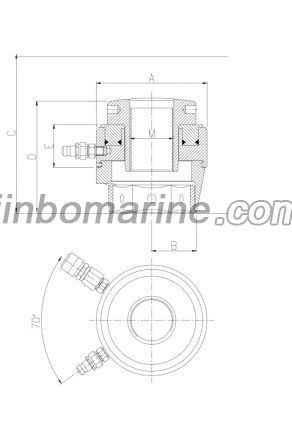

Model Bolt Diameter Maximum Load Oil Pressure Area Weight A B C D E F
Inch mm KN mm² Kg mm mm mm mm mm mm
HLD1 16 226 1506 3.5 73 24 110 74 45 49
3/4 18 226 1506 3.5 73 24 110 74 45 49
20 226 1506 3.5 73.5 27 110 74 45 49.5
7/8 22 226 1506 3 73.5 27 115 74 45 53
1 24 226 1506 3 73.5 30 125 78 45 58.5
1 1/8 27 226 1506 3 73.5 32 130 78 45 63.5
HLD2 30 455 3031 5 102 30 150 90 54 69
11/4 33 455 3031 5 102 34 150 90 54 72
1 3/8 36 455 3031 5 102 36 160 95 54 78
11/2 39 455 3031 5 102 38 170 100 54 80
HLD3 1 1/2 39 803 5357 9 133 42 175 95 56 83.5
1 5/8 42 803 5357 9 133 42 185 100 56 92.5
1 3/4 45 803 5357 9 133 44 195 103 56 98
17/8 48 803 5357 9 133 46 205 107 56 101
2 52 803 5357 9 133 48 210 112 56 106
HLD4 1 7/8 48 1288 8591 15 163 50 205 105 58 108
2 52 1288 8591 15 163 52 215 108 58 108
21/4 56 1288 8591 15 163 54 235 117 58 118.5
60 1288 8591 15 163 54 238 120 58 127
2 1/2 64 1288 8591 15 163 58 254 129 58 130.5
HLD5 2 1/2 64 1978 13188 25 193 64 254 125 60 130.5
68 1978 13188 25 193 72 258 130 60 138
2 3/4 72 1978 13188 25 193 72 258 130 60 143
3 76 1978 13188 25 193 74 258 141 60 153
