Hot Dip Galvanized Anchor Chain
- Category:Anchor Chain
- Material:Steel Bars
- Certificate:LR, ABS, BV,DNVGL,NK,
- Delivery Time:15-20 Days
- Supply Ability:600Tons each month
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details

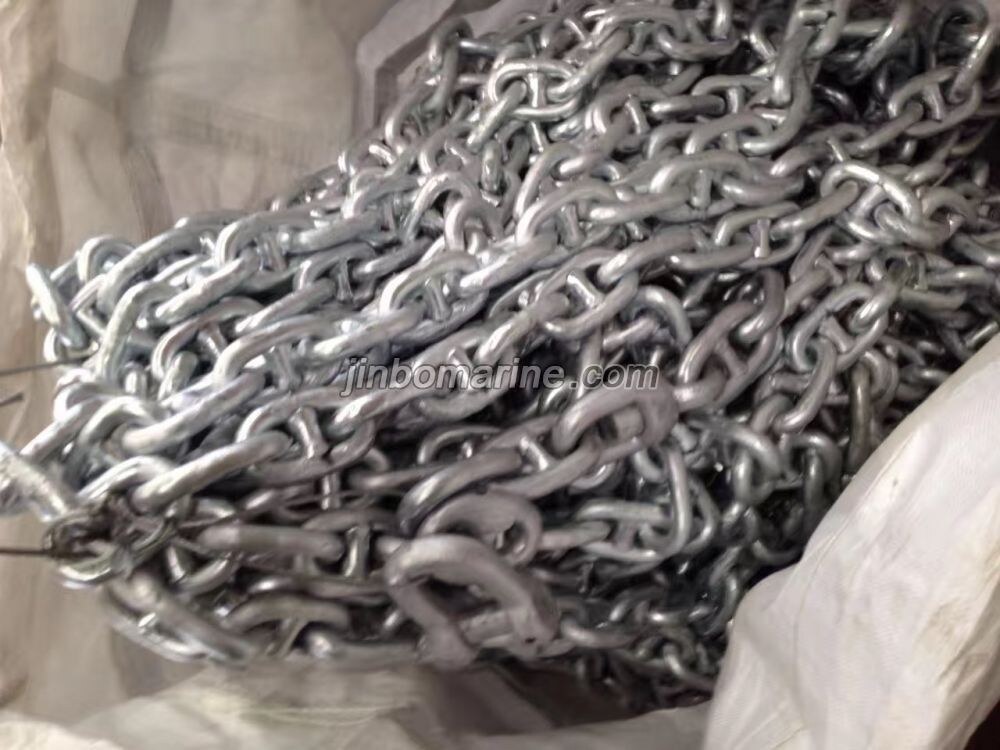

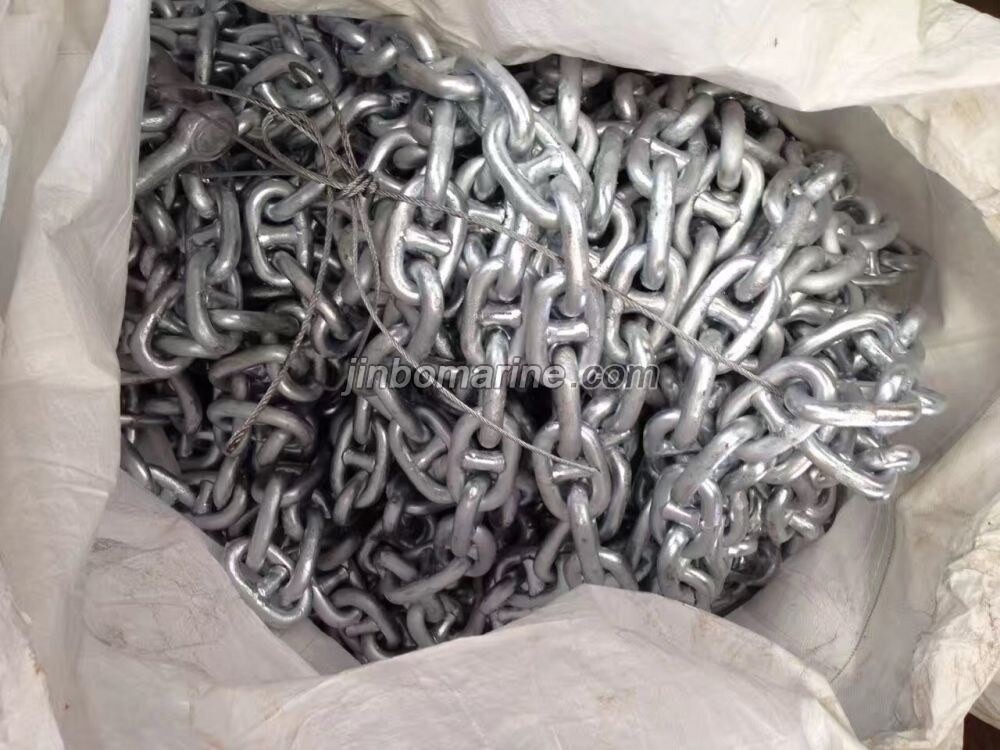

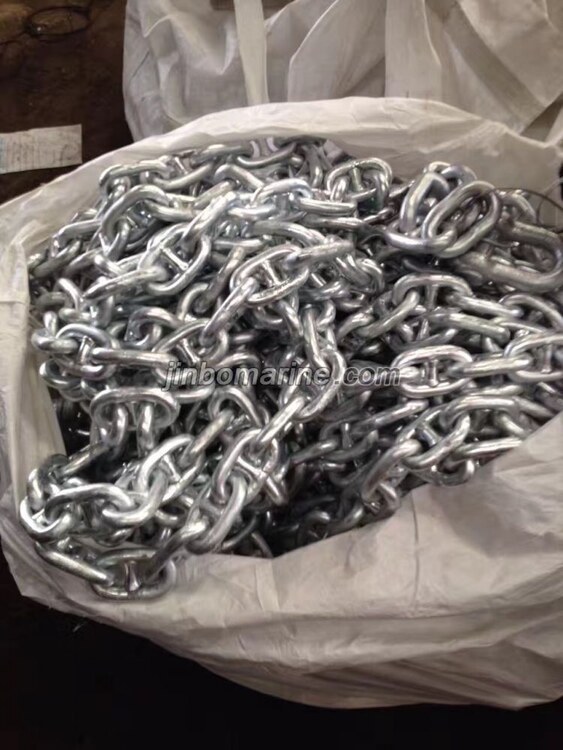

China Hot Dip Galvanized Anchor Chain:
Hot Dip Galvanized(HDG) Anchor Chain has the good feature of anti-corrosion, size range from 12.5mm to 76mm. HDG Finish is made according to client request, please inform when inquiry. We supply the HDG Anchor Chain to Malaysia, Singapore, Indonedisa, Thailand and other countries.
Delivery time usually is 15-25 days, packed by tonne bags and shipped by sea.
HDG Anchor Chain Size
| Chain Diameter mm | Proof Load | Breaking Load | Chain Diameter mm | Minimum Weight Kg per lenght of 27,5 m | ||
| Grade 2 kN | Grade 3 kN | Grade 2 Kn | Grade 3 kN | |||
| 12.5 | 66 | - | 92 | - | 12.5 | 98 |
| 14 | 82 | - | 116 | - | 14 | 119 |
| 16 | 107 | 150 | 150 | 216 | 16 | 160 |
| 17.5 | 127 | 179 | 179 | 256 | 17.5 | 190 |
| 19 | 150 | 211 | 211 | 301 | 19 | 225 |
| 20.5 | 175 | 244 | 244 | 349 | 20.5 | 265 |
| 22 | 200 | 280 | 280 | 401 | 22 | 300 |
| 24 | 237 | 332 | 332 | 476 | 24 | 360 |
| 26 | 278 | 389 | 389 | 556 | 26 | 420 |
| 28 | 321 | 449 | 449 | 642 | 28 | 490 |
| 30 | 368 | 514 | 514 | 735 | 30 | 565 |
| 32 | 417 | 583 | 583 | 833 | 32 | 635 |
| 34 | 468 | 655 | 655 | 937 | 34 | 720 |
| 36 | 523 | 732 | 732 | 1050 | 36 | 800 |
| 38 | 581 | 812 | 812 | 1160 | 38 | 895 |
| 40 | 640 | 896 | 896 | 1280 | 40 | 995 |
| 42 | 703 | 981 | 981 | 1400 | 42 | 1100 |
| 44 | 769 | 1080 | 1080 | 1540 | 44 | 1200 |
| 46 | 837 | 1170 | 1170 | 1680 | 46 | 1320 |
| 48 | 908 | 1280 | 1280 | 1810 | 48 | 1440 |
| 50 | 981 | 1370 | 1370 | 1960 | 50 | 1560 |
| 52 | 1060 | 1480 | 1480 | 2110 | 52 | 1675 |
| 54 | 1140 | 1590 | 1590 | 2270 | 54 | 1820 |
| 56 | 1220 | 1710 | 1710 | 2430 | 56 | 1935 |
| 58 | 1290 | 1810 | 1810 | 2600 | 58 | 2075 |
| 60 | 1380 | 1940 | 1940 | 2770 | 60 | 2220 |
| 62 | 1470 | 2060 | 2060 | 2940 | 62 | 2365 |
| 64 | 1560 | 2190 | 2190 | 3130 | 64 | 2550 |
| 66 | 1660 | 2310 | 2310 | 3300 | 66 | 2695 |
| 68 | 1750 | 2450 | 2450 | 3500 | 68 | 2890 |
| 70 | 1840 | 2580 | 2580 | 3690 | 70 | 3030 |
| 73 | 1990 | 2790 | 2790 | 3990 | 73 | 3290 |
| 76 | 2150 | 3010 | 3010 | 4300 | 76 | 3555 |
