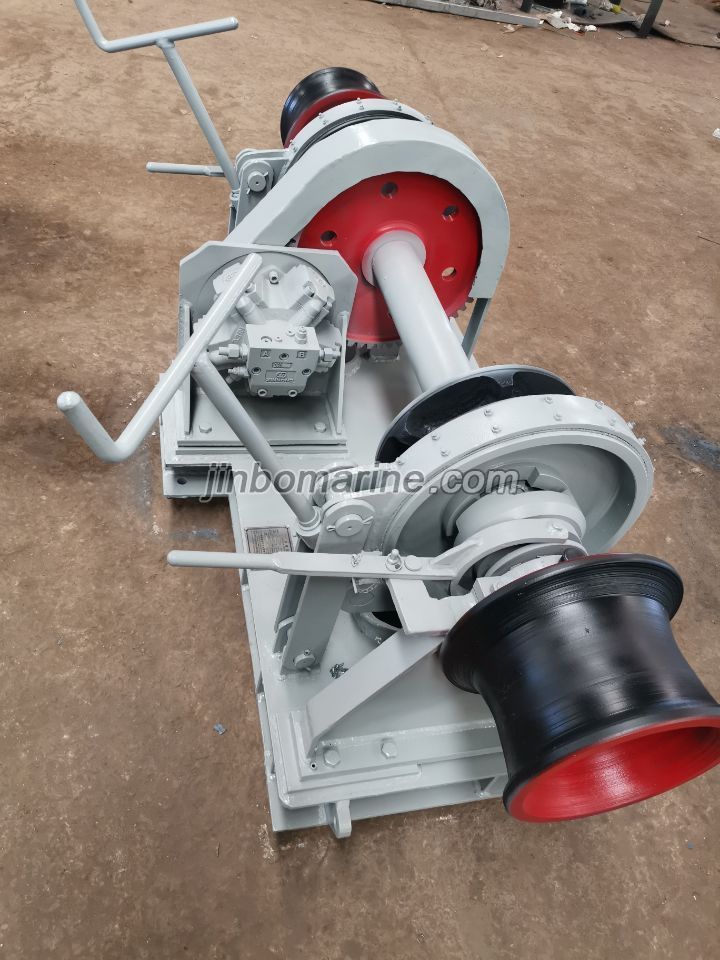

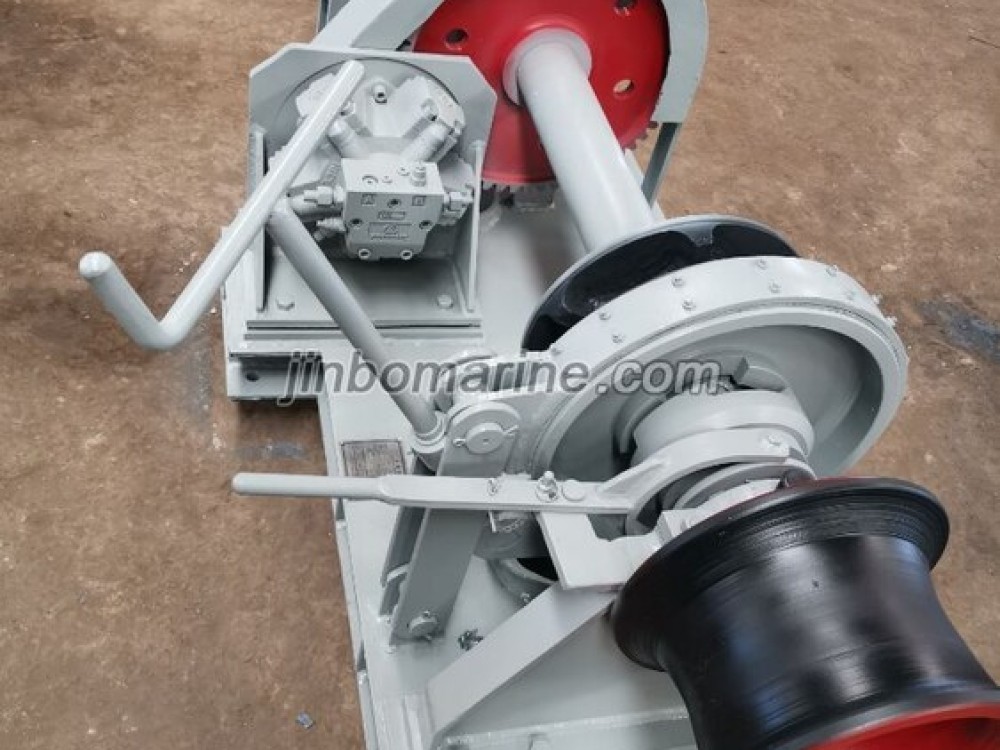

Hydraulic Double Gypsy Windlass

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

China Hydraulic Double Gypsy Windlass:

We can design the windlass for anchor chain from 12.5~114mm. The windlass can be driven by the electric motor, hydraulic pump station.

Speed:9~20m/min

Chain Diameter(mm) Rated Load(KN AM2) Overload (KN AM2) Holding Load(KN AM2) Power (KW)
12.5 6.6 9.9 41.4 4
14 8.3 12.5 52.2 4
16 10.9 16.4 67.5 5.5
17.5 13 19.5 80.5 5.5
19 15.3 23 94.9 5.5
20.5 17.9 26.9 109.8 7.5
22 20.6 30.9 126 7.5
24 24.5 36.8 145 11
26 28.7 43 175 11
28 33.3 49.9 202 15
30 38.3 57.5 231 15
32 43.5 65.3 262 18.5
34 49.1 73.6 295 22
36 55.1 82.6 329 30
38 61.3 91.9 365 30
40 68 102 403 30
42 74.5 111.7 442 30
44 82.3 123.5 486 37
46 89.9 134.9 527 37
