Impressed Current Cathodic Protection Systems

Request a Quote Not what you need, please send your RFQs via Email.

Details

Product Description

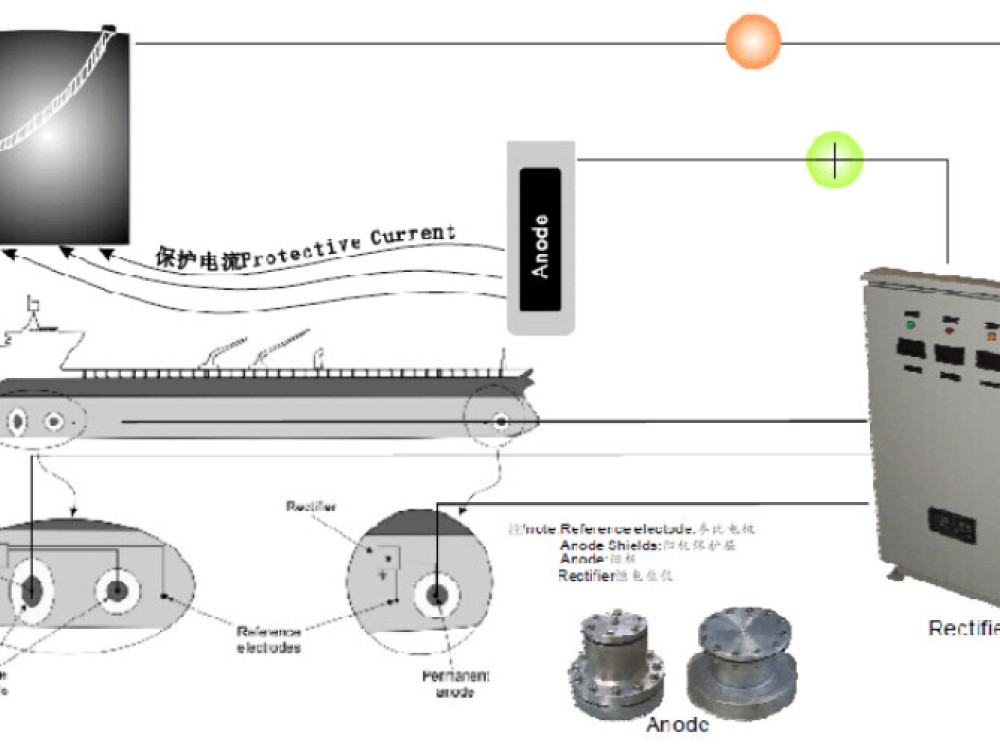

Although modern hull, large underground pipes, land coating can provide some coating protection of large storage tanks to prevent corrosion. But this kind of coating could not provide a full range of solutions. For this reason, most of the operators according to the actual situation, choose the plus cathodic protection system to solve the corrosion problem of the equipment. On the equipment installed using the anode electrode and reference electrode, and then through the control box to control and to provide a more powerful external current land, to curb underwater pipe section of natural electric chemical. Not only inhibits the formation of the protected equipment corrosion on the surface of the electronic, and avoided by welding or near other different material corrosion caused by the different problems.

Technical Data

Model ICCP-CP100 ICCP-CP200 ICCP-CP300 ICCP-CP400
former model RDSF-100 RDSF-200 RDSF-300 RDSF-400
power source 380V50HZ ,3Φ/440V60HZ,3Φ
(220V50HZ/230V60HZ,3Φonly for CP100)
output voltage DC:0-12V (0-16V)
output current DC:0-100A DC:0-200A DC:0-300A DC:0-400A

Reference
electrode type
Electrode
shape
Electrode
type
Stability of
electrode
potential(v)
Service life
(year)
Potential of
ship hull(v)
Ag-agcl
electrode
Helical
shape
Fixed type
protable type
≤±0.05 10 0.75~1.0
Zinc alloy
electrode
Plate
shape
Fixed type
<0.015 10 +0.25~+0.05
