JM-BL130 Solar Navigation Lamp

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

China JM-BL130 Solar Navigation Lamp:

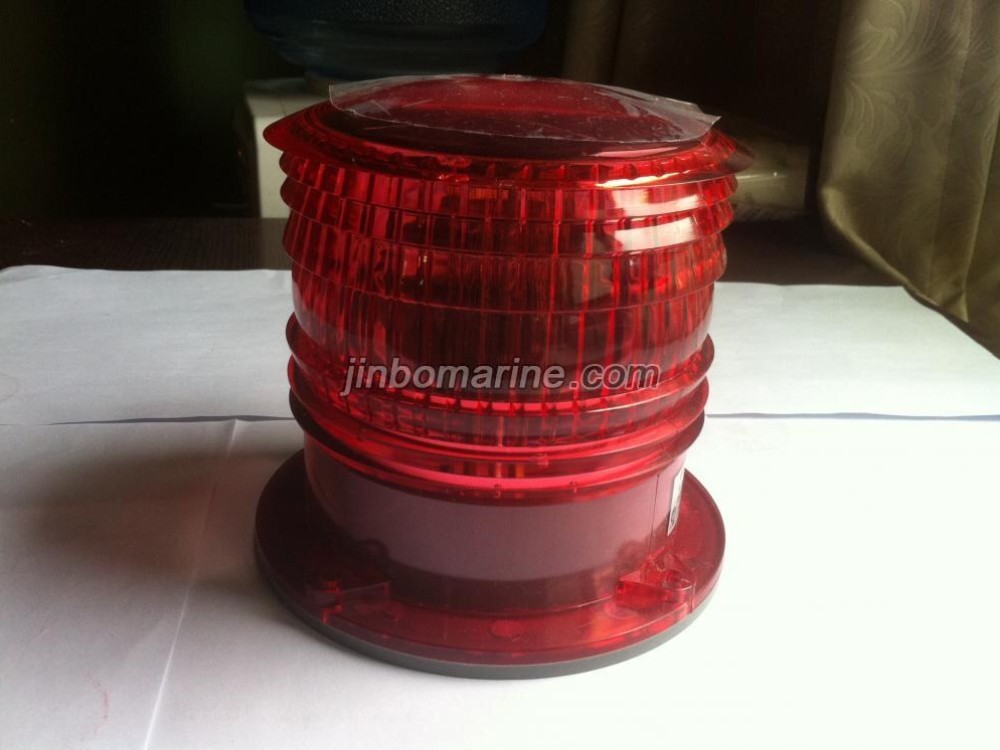

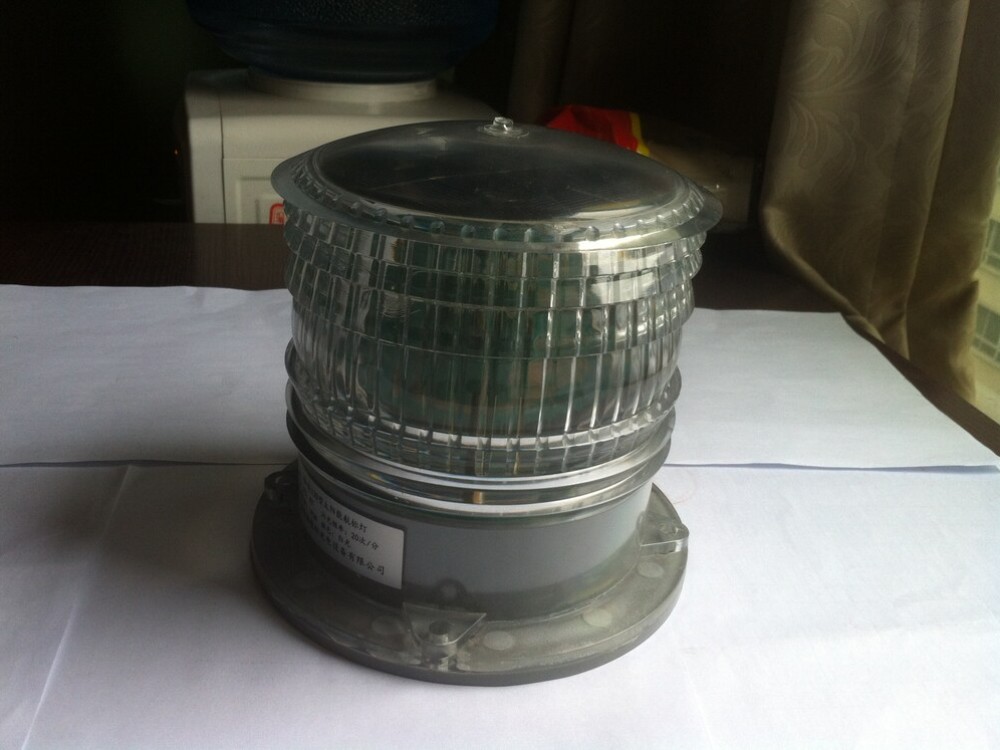

JM-BL130 Solar Navigation Lamp

JM-BL130 solar navigation lamps are the lightest navigation lights which are specially designed for inland or coastal channel. It consists of built-in solar panels, LED light source, and sunlight switch. The lamp shade select imported polycarbonate material injection into the Fresnel lens (navigation professional set), which can focus the light source, improve the luminous intensity, and expand the flash divergence angle. Lamp circuit assembly is controlled by an advanced single-chip computer chip, working according to intelligence program stably and reliably. Beautiful shape, salt fog resistance, waterproof, light structure. They can works automatically once installed without any external power supply.

Product applications

1. Water application: buoy marking, water safety warning, small wharf, coastal warning, and signal lamp for ship.
2. Airport application: airport runway, airport taxi parking place, runway edge lighting, airfield runway edge lighting, runway threshold starting point lighting.
3. Marking application: roadblocks, safety signs, direction signs, mobile emergency lighting.

Technical SPecification

Light intensity

White

Red

Amber

Blue

Green

Flashing(candela)

52cd

32.5cd

28cd

19cd

22cd

Constant(candela)

32cd

28cd

17cd

10cd

15cd

Light color

Red, amber, blue, white, green

Maximum continuous operating time

140hours

70hours

Luminous mode

flash

constant

Visible distance

3nm

3nm

Quantity for luminous body

8 or 16 nos. of LED

Life time for light source

100,000 hours

Solar panels and their conversion efficiency

polysilicon ( >14% )

Life time for solar panels

20 years

Solar battery specifications

2.4W

Storage battery type

Replaceable Ni-MH rechargeable battery

Capacity

4600mAH

Weight

1.1kg

Material of outer case

Industry PC

Environment temperature for working

-40℃～+80℃

Optimum environment temperature

-20℃～+35℃

Waterproof index

IP68
