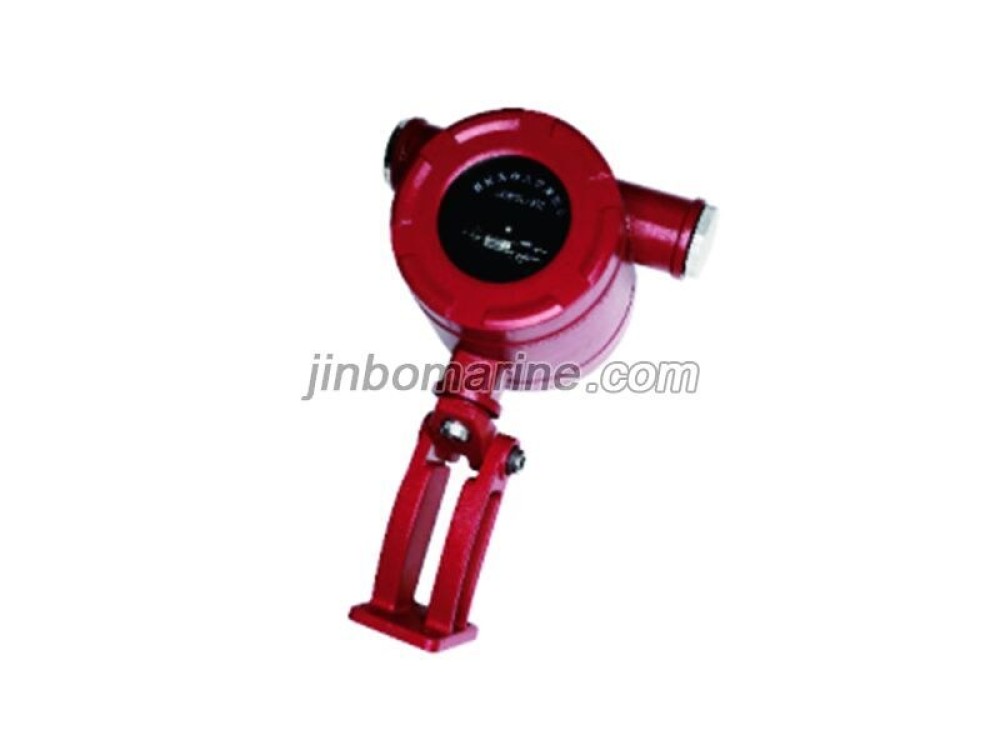

JTH-CH386Ex Explosion-Proof Flame Detector

JTH-CH386Ex Explosion-Proof Flame Detector

1)Chapter of international code for fire safetysystems as amended by MSC.3119880;
2)Chapter of international code for fire safetysystems as amended by MSC.339(91);
3)EN54-2:1997,Fire detection and fire alarm systems Part2:control and indicating equipment.

Colour: Red

Shell material:Gast aluminum

Power supply: DC24V

Spectral range:3.8um~11um/180nm~290nm

Explosive-proof Grade: Exd IIC T6 Gb

Alarm current:≤80mA

IP rating: IP67
