JZ Marine Shaft Mechanical Brake

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

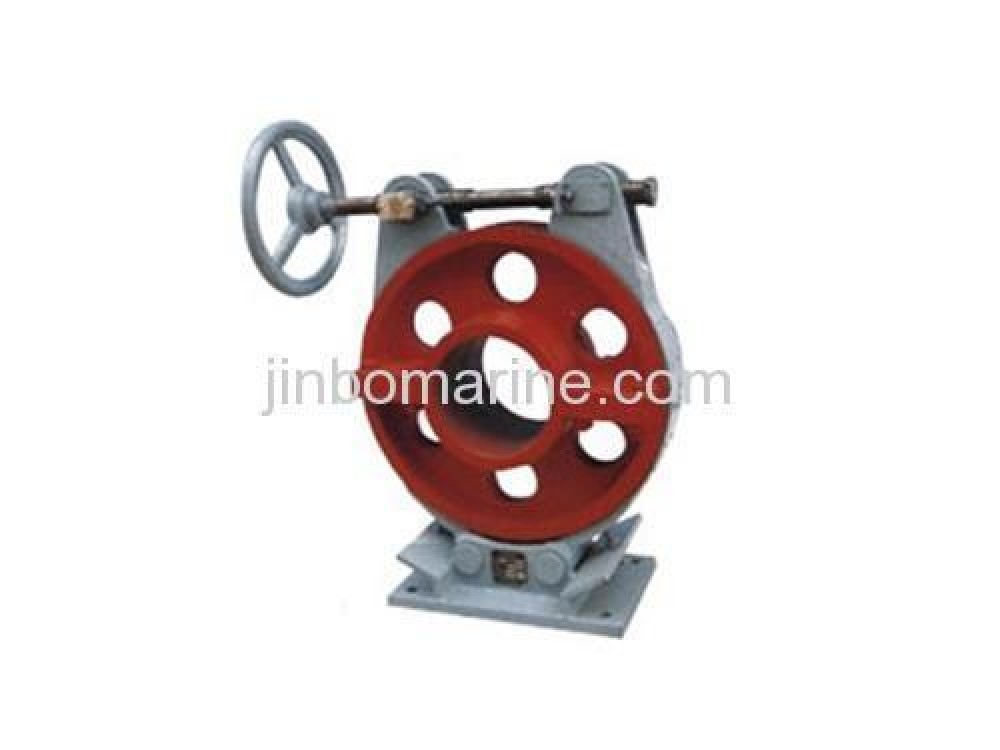

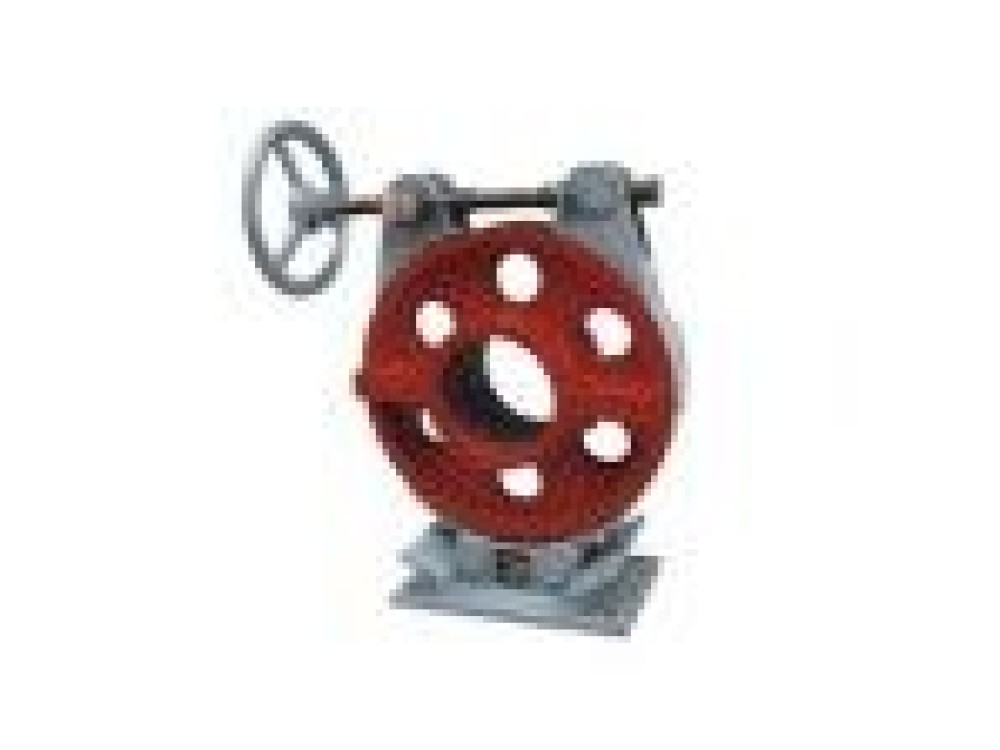

China JZ Marine Shaft Mechanical Brake:

It is suitable for small and medium vessels whose stern shafts need to be locked when they anchor.
Accept customization

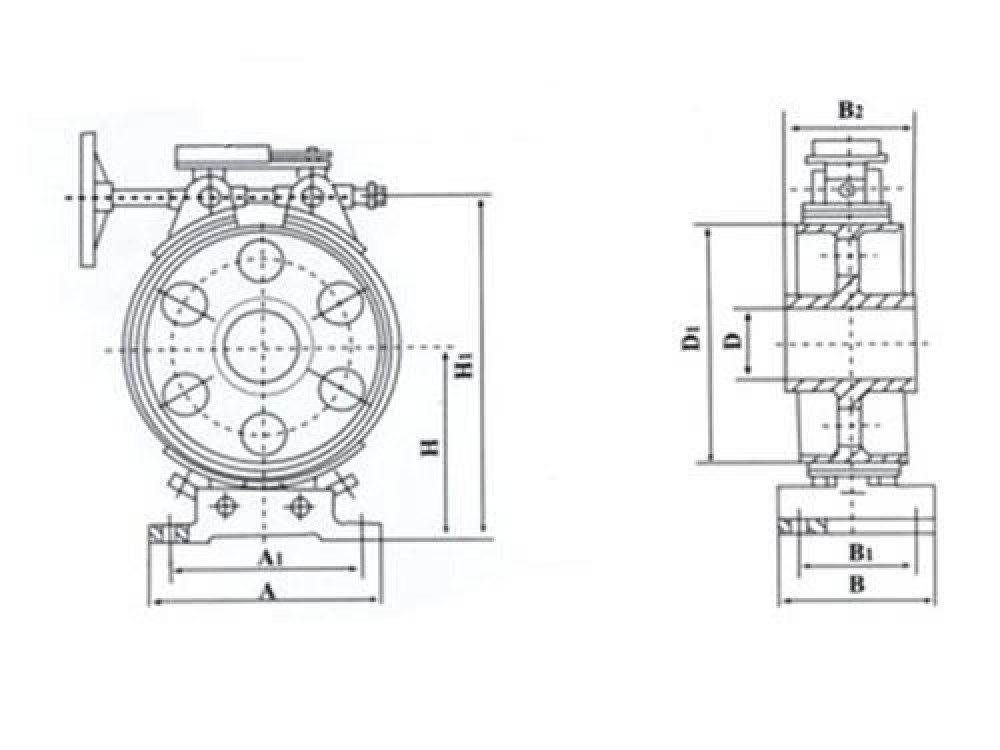

Specification D D1 H H1 A A1 B B1 B2 Weight (kg)
JZ60 60 450 360 640 320 260 160 110 160 84
JZ70 70 450 360 640 320 260 160 110 160 83
JZ80 80 450 360 640 320 260 160 110 160 82
JZ90 90 450 360 640 320 260 160 110 160 81
JZ100 100 450 360 640 320 260 160 110 160 80
JZ110 110 520 400 700 380 320 200 150 200 124
JZ120 120 520 400 700 380 320 200 150 200 123
JZ130 130 520 400 700 380 320 200 150 200 122
JZ140 140 520 400 700 380 320 200 150 200 121
JZ150 150 520 400 700 380 320 200 150 200 120
JZ160 160 620 450 820 440 380 260 200 240 190
JZ170 170 620 450 820 440 380 260 200 240 188
JZ180 180 620 450 820 440 380 260 200 240 186
JZ190 190 620 450 820 440 380 260 200 240 184
JZ200 200 620 450 820 440 380 260 200 240 182
JZ210 210 750 520 960 500 540 300 240 280 300
JZ220 220 750 520 960 500 540 300 240 280 295
JZ230 230 750 520 960 500 540 300 240 280 290
JZ240 240 750 520 960 500 540 300 240 280 285
JZ250 250 750 520 960 500 540 300 240 280 280
