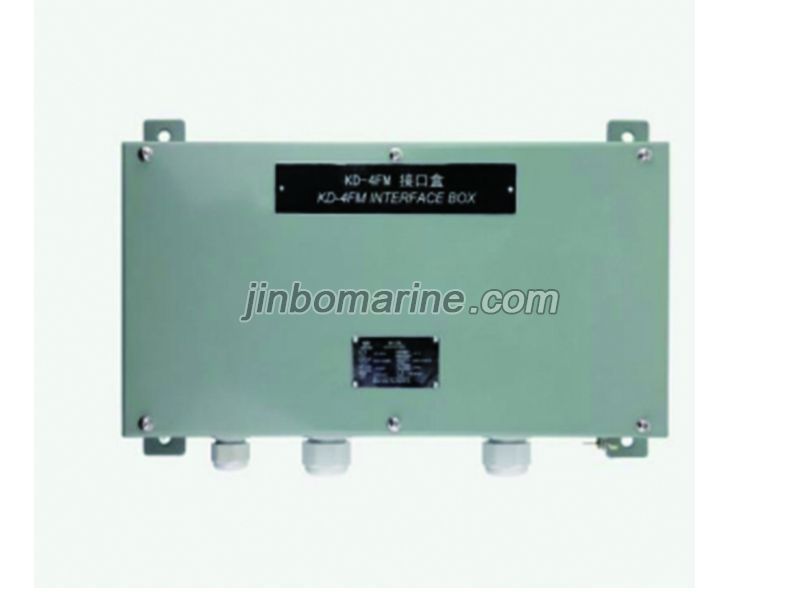

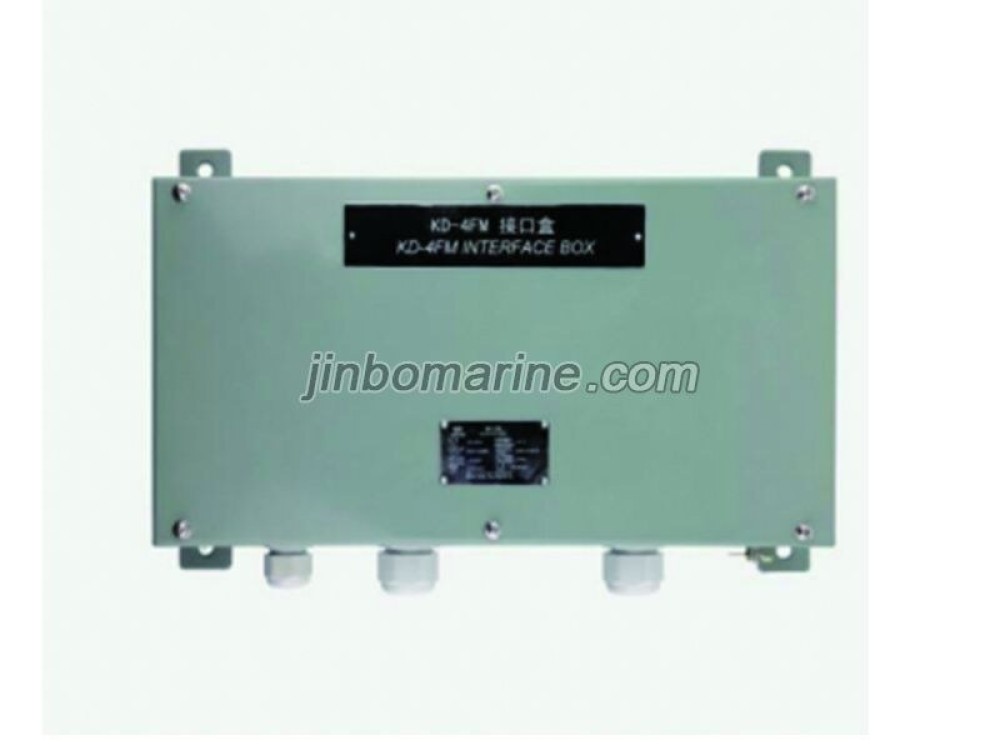

KD-4FM Interface Box

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

China KD-4FM Interface Box:

KD-4FM Interface Box

Explosion-proof class:Ex ib Gb Il B

Power supply: DC24V -25% +30%

Color: Green gray（RAL6034）

IP class:IP44

Weight:3.88Kg

Power:≤15W

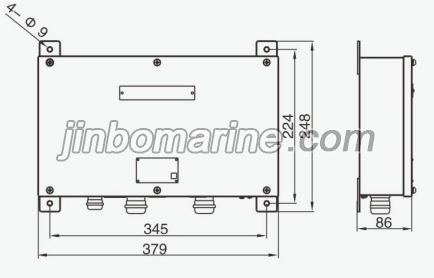

Stuffing box cable entrance hole size:1-Φ14mm,2-Φ18mm

Um=250V Uo=14.85V lo=125mA

Po=465mW Co=3.65uF Lo=0.9mH
