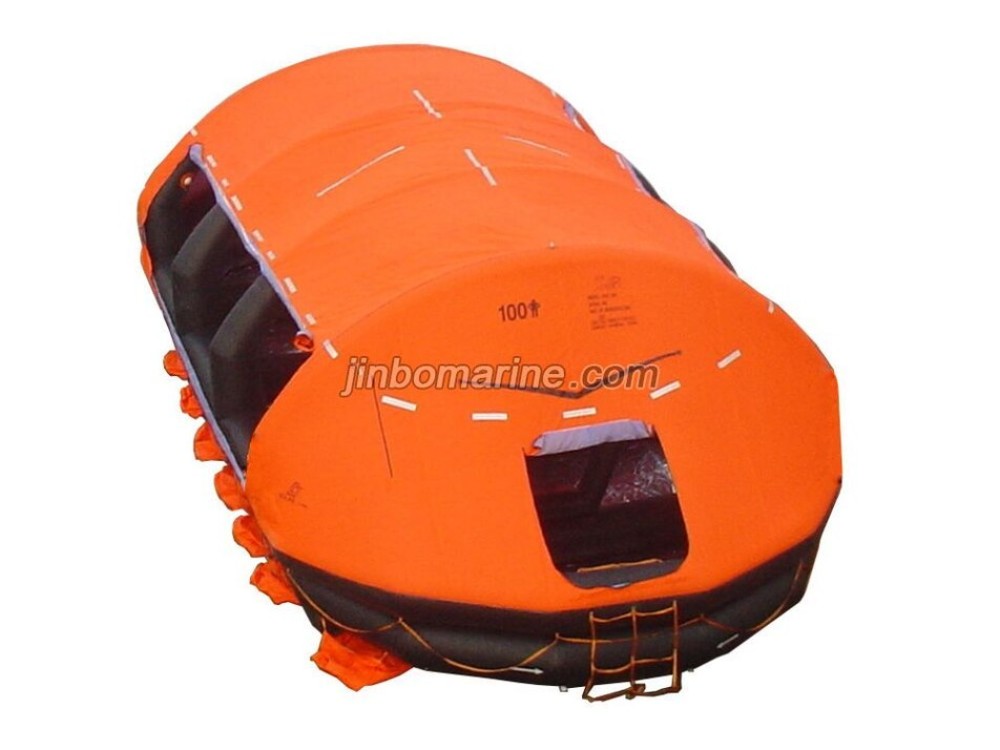

KHZ Type Self-Righting Inflatable Liferafts

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

Product Description:

KHZ type self-righting inflatable liferafts are in accordance with 1996 Amendment to the International Convention for the Safety of Life at Sea, 1974, MSC.81 (70) , MSC.218(82), MSC.226(82) and ISO 15738-2002. This product has been approved by CCS, EC (GL), and ABS. It can be used in the ships engaged on international voyages.

Available Model:

Type KHZ-6 KHZ-10 KHZ-15 KHZ-20 KHZ-25 KHZ-50 KHZ-100 KHZ-110 KHZ-125
Physical form rectangular
octagon 		rectangular
octagon 		rectangular
octagon 		rectangular
octagon 		rectangular
octagon 		rectangular
dodecagon 		rectangular
dodecagon 		rectangular
dodecagon 		rectangular
dodecagon
Capacity 6 10 15 20 25 50 100 110 125
Length (mm) ，±1000 2800 3510 4300 4900 5300 7311 11060 11550 12000
Width (mm)，±1000 1660 2000 2400 2700 3100 4240 5260 5600 6100
Height (mm)，±50 1500 1700 2050 2250 2350 3000 3250 3450 3650
Pack Dia (mm) 615 670 690 730 745 895 1050 1050 1050
Length (mm) 1095 1135 1285 1440 1485 2095 2400 2400 2400
Weight，kg ≤ 85 114 142 185 212 445 780 860 920
