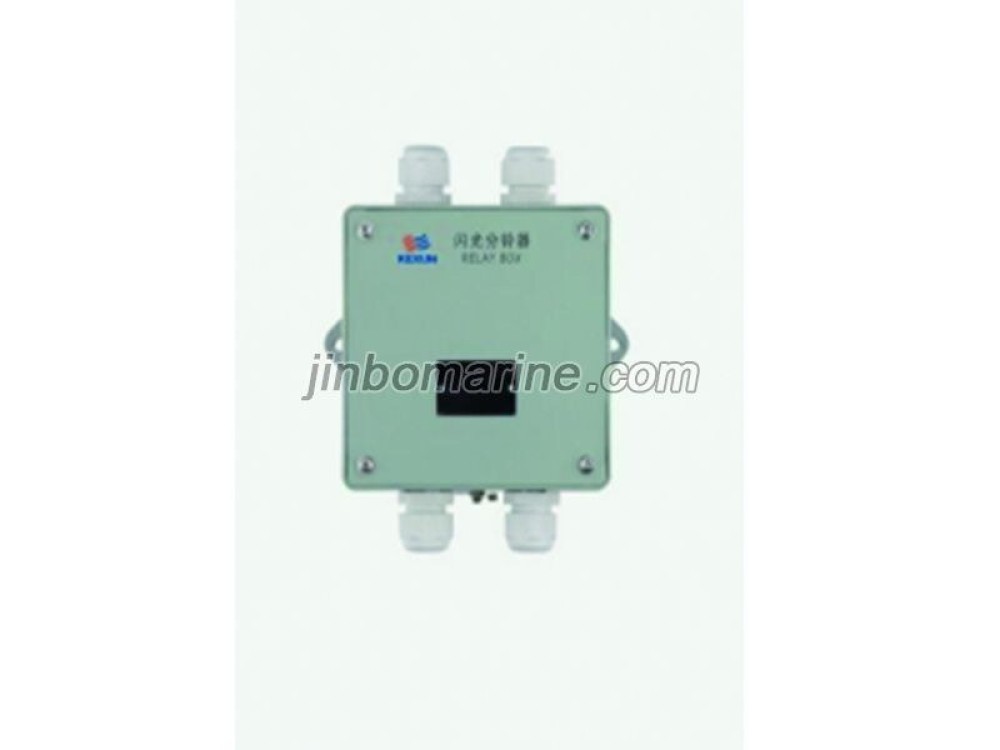

KL-1G/2G Relay Box

KL-1G/2G Relay Box

Power supply: KL-1G DC24V -25% +30%

KL-2G AC220V±10%

Color: Green gray（RAL6034）

IP class:IP44

Weight:0.6/1.0Kg

Power:≤30/50W

Active output capacity: KL-1G DC24V/1A

KL-2G AC220V/1A

Passive contact load (resistance): 8A/250VAC

Passive contact maximum switchover voltage:440VAC/125VDC

Stuffing box cable entrance hole size: 4-Φ14mm
