China KLCD Series-Hollow Torque Wrench:

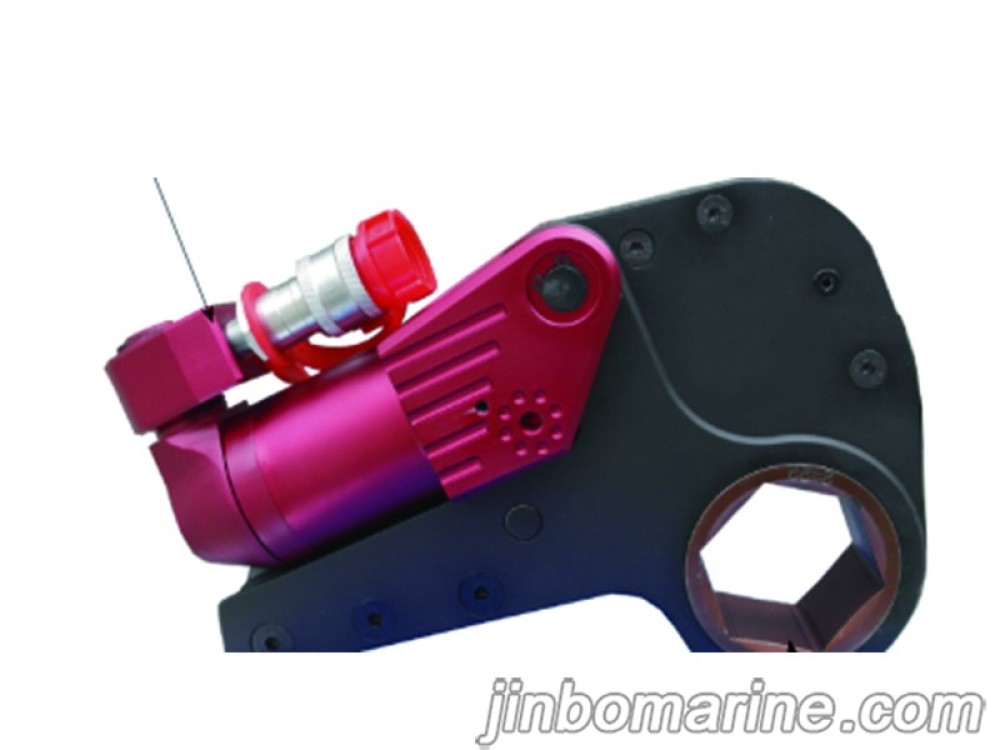

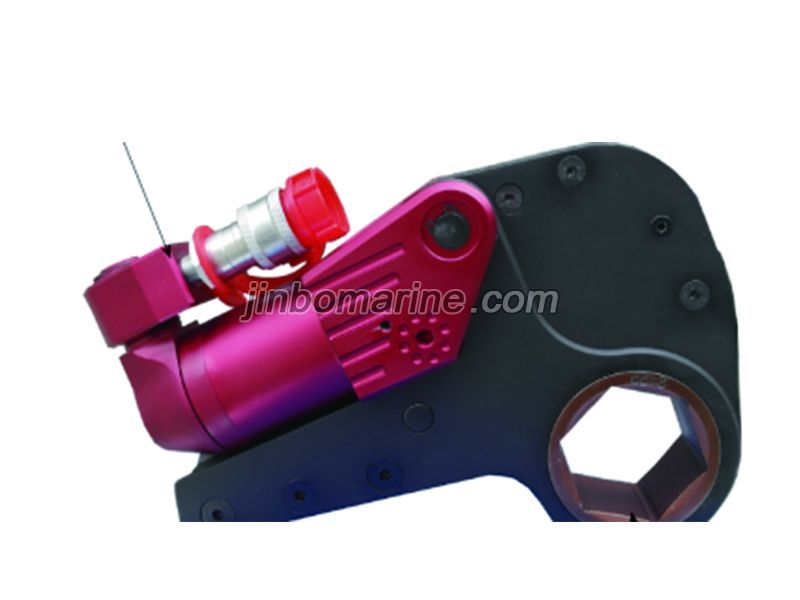

KLCD Series-Hollow Torque Wrench
Aviation aluminum titanium alloy, integrated molding body,high strength, high toughness.
Precise check button structure to overcome tool reverse phenomenon caused by bolt torsion springback.
360°x 180°rotatable tubing joint, no space restriction, one-piece lengthening design, more longer force arm, more portable.
The working head and the reaction fulcrum force structure design improves the service life.
Torque constant output, torque repeatability accuracy ±3%.
A variety of working heads can be replaced, and the reaction arm can also be customized according to the site space.
| Model | 2KLCD | 3KLCD | 4KLCD | 8KLCD | 14KLCD | 18KLCD | 20KLCD | 30KLCD | 40KLCD | 45KLCD | 60KLCD |
|
Torque Nm |
237 | 345 | 546 | 1055 | 1848 | 2481 | 2909 | 4231 | 5209 | 6057 | 8415 |
| 2370 | 3446 | 5458 | 10550 | 18484 | 24814 | 29089 | 42311 | 52088 | 60566 | 84150 | |
|
Nuts Range S |
36-55 | 36-60 | 46-80 | 70-105 | 80-115 | 85-120 | 90-130 | 95-145 | 120-145 | 130-155 | 135-180 |
|
Weight of Power Head Kg |
0.8 | 0.8 | 1.9 | 4.2 | 6.8 | 8.1 | 10.5 | 12.7 | 15.2 | 16.3 | 23 |
|
Weight of Working Head Kg |
1.5 | 1.7 | 3.6 | 7.6 | 12.2 | 19.3 | 22.3 | 32.3 | 47.5 | 58.7 | 75 |

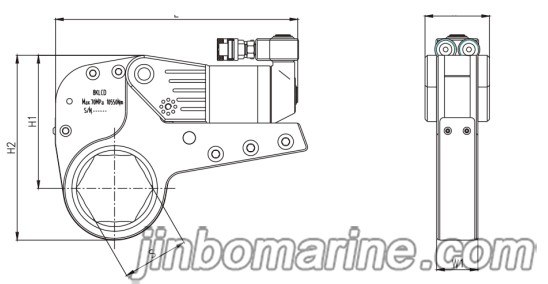

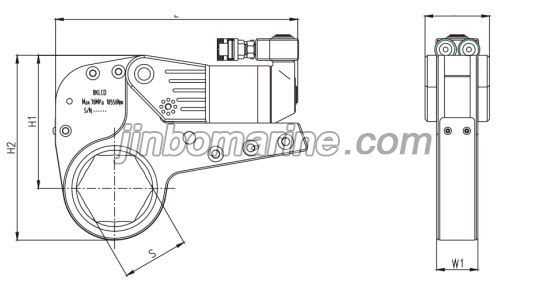

| L | 192 | 218 | 266 | 324 | 382 | 404 | 427 | 479 | 479 | 486 | 514 |
| H1 | 105 | 118 | 139 | 171 | 205 | 229 | 240 | 268 | 285 | 311 | 336 |
| H2 | 147 | 156 | 167 | 198 | 231 | 255 | 265 | 289 | 302 | 352 | 375 |
| W1 | 32 | 32 | 42 | 53 | 64 | 68 | 70 | 85 | 98 | 108 | 117 |
| W2 | 50 | 50 | 66 | 83 | 99 | 105 | 110 | 132 | 148 | 160 | 177 |
