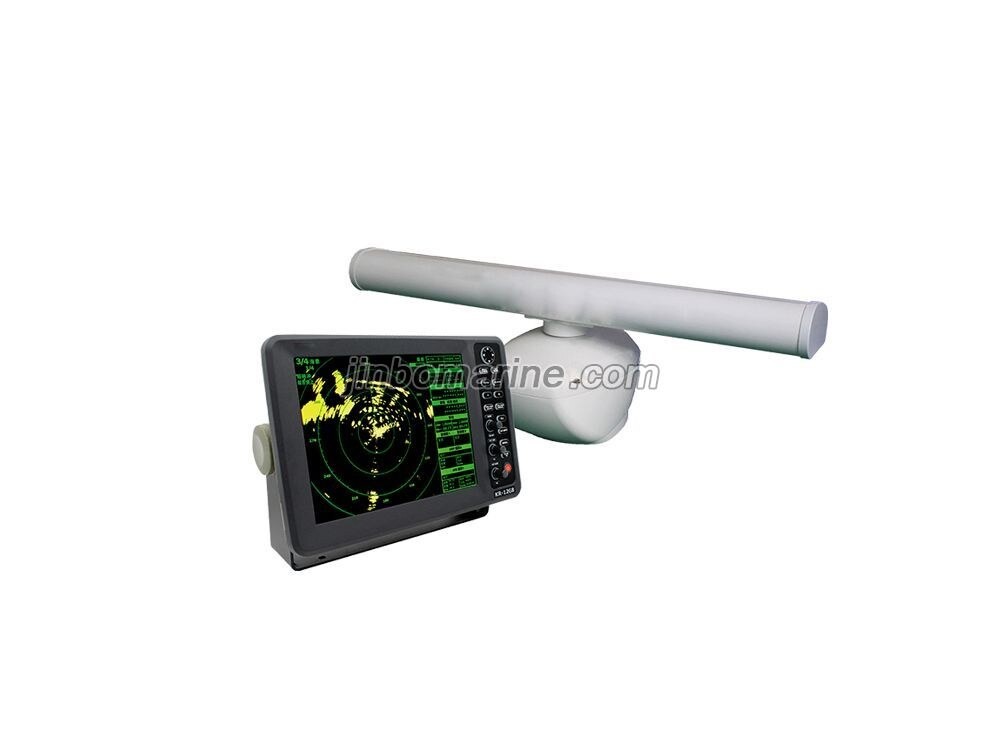

KR-1568 15inches-Color-LCD-Marine-Radar

Request a Quote Not what you need, please send your RFQs via Email.

Details

China KR-1568 15inches-Color-LCD-Marine-Radar:

15inches Color LCD Marine Radar/ with AIS Display and Target Tracking (APRA)

FEATURE:

1.Customizable Data Field, more flexible data display.
2.System Software can be upgraded via USB.
3. AIS display function.
4.Multiple-Color selection for target and background.
5. Rugged die-cast, waterproof housing.
6. Target Tracking (TT) function, can track and trace up to 20 targets.
7. User-programmable function keys.
8. Automatic optimization of radar picture.
9. Newly enhanced performance.
10. Head-up, Course-up and North-up representation mode.

11.Economy Mode, Guard Zone Alarm and Watch Mode.

ANTENNA RADIATOR
Type KR-1538: 55cm hybrid array
Length and Rotate speed KR-1538: Radome 60cm (KRA-1004) 24RPM
Wind load Relative wind 100 knots
Beam width KRA-1004: Hor: 4″ Vert: 25″
RF TRANSCEIVER
Frequency 9410 +/-30MHz (X-band)
Pulse length PRR 0.08 µ s/2100 Hz(0.125, 0.25, 0.5, 0.75, 1, 1.5* nm)
0.3µ s/1200 Hz(1.5*, 2, 3 nm)
0.8 µ s/600 Hz(3*, 4, 6, 8, 12, 24, 36, 48**, 64**nm)
Pulse length & PRR for 1.5 and 3nm ranges can be select in menu** KR-1568
Peak Output Power 4KW nominal
Mixer and Local Oscillator Microwave Inter grated Circuit
IF 60MHz Bandwidth: 25MHz (0.08/0.3 µ s), 3MHz (0.8 µ s)
Noise Figure 10dB nominal
ENVIRONMENT Temperature:
Display unit: -15 to +55 C (Display Unit)
Antenna unit: -25 to +70 C (Antenna Unit)
POWER SUPPLY 13.8 VDC, 24 VDC, 36 VDC; 60W (30W in economy mode)
DISPLAY UNIT
Type 15″ LED backlight, 32-bit TFT Color LCD Display
1024(V) x 768(H) dots
Display Modes Head-up, Course-up*, North-up*, True Motion**
* Heading input required
** Heading and speed inputs required
Range Scale (nm) Range: 0.125, 0.25, 0.5, 0.75, 1, 1.5, 2, 3, 4, 6, 8, 12, 16, 24, 36, 48**, 64**, 72**
Ring:0.0625,0.125,0.125,0.25,0.25,0.5,0.5,1,1,2,2,3,4,6,12
