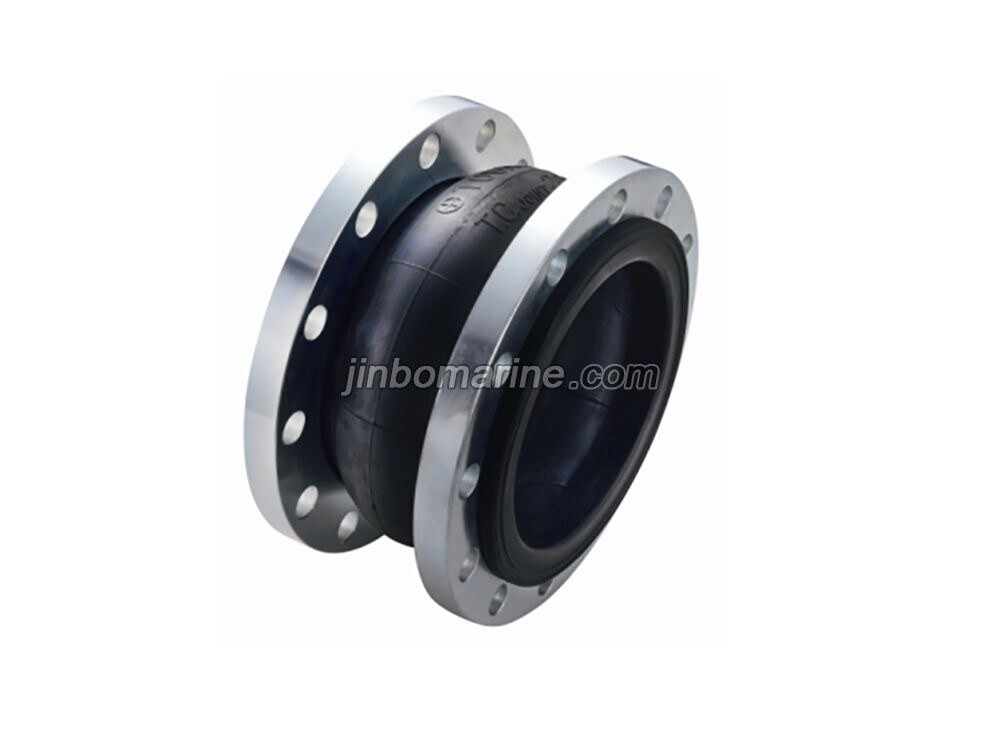

KXT Single Ball Rubber Expansion Joint

Request a Quote Not what you need, please send your RFQs via Email.

Details

China KXT Single Ball Rubber Expansion Joint:

They are used in all systems transporting fluids, slurries or gases under pressure, at ambient pressure or under vacuum over a wide range of temperatures.

Rubber Expansion Joints are designed for piping systems to absorb pipe movements, relieve stress, reduce system noise/vibration, and compensate for misalignment/offset and to protect rotating mechanical equipment against start-up surge forces. Internal pressure within a “sphere” is exerted in all directions, distributing forces evenly over a larger area. The spherical design “flowing arch” reduces turbulence and sediment buildup.

KXT Single Ball Rubber Expansion Joint Main Specifications

Nominal Diameter Length Flange Bolt Bolt hole Bolt hole circle Axial displacement Lateral Deflection
Thickness Quantity Diameter Diameter Stretching Compression Displacement Angle
(mm) (Inch) (mm) (mm) (mm) (mm) (mm) (mm) (a1 +a2 )
40 1.5 95 18 4 18 110 6 10 9 15
50 2 105 18 4 18 125 7 10 10 15
65 2.5 115 20 4 18 145 7 13 11 15
80 3 135 20 4 18 160 8 15 12 15
100 4 150 22 8 18 180 10 19 13 15
125 5 165 24 8 18 210 12 19 13 15
150 6 180 24 8 23 240 12 20 14 15
200 8 210 24 8 23 295 16 25 22 15
250 10 230 26 12 23 350 16 25 22 15
300 12 245 28 12 23 400 16 25 22 15
350 14 255 28 16 23 460 16 25 22 15
400 16 255 30 16 25 515 16 25 22 15
450 18 255 30 20 25 565 16 25 22 15
500 20 255 32 20 25 620 6 25 22 15
600 24 260 36 20 30 725 6 25 22 15
700 28 260 36 24 30 840 16 25 22 15
800 32 260 38 24 34 950 16 25 22 15
900 36 260 42 28 34 1050 6 25 22 15
1000 40 260 44 28 34 1160 18 26 24 15
1200 48 260 48 32 41 1380 18 26 24 15
1400 56 350 44 36 34 1560 20 28 26 15
1600 64 350 46 40 34 1760 25 35 30 10
1800 72 350 52 44 41 1970 25 35 30 10
2000 80 420 54 48 48 2180 25 35 30 10
2200 88 400 40 52 48 2390 25 35 30 10
2400 96 400 41 56 48 2600 25 35 30 10
2600 104 450 42 60 54 2810 25 35 30 10
2800 112 450 45 64 54 3020 25 35 30 10
3000 120 450 50 68 54 3220 25 35 30 10
