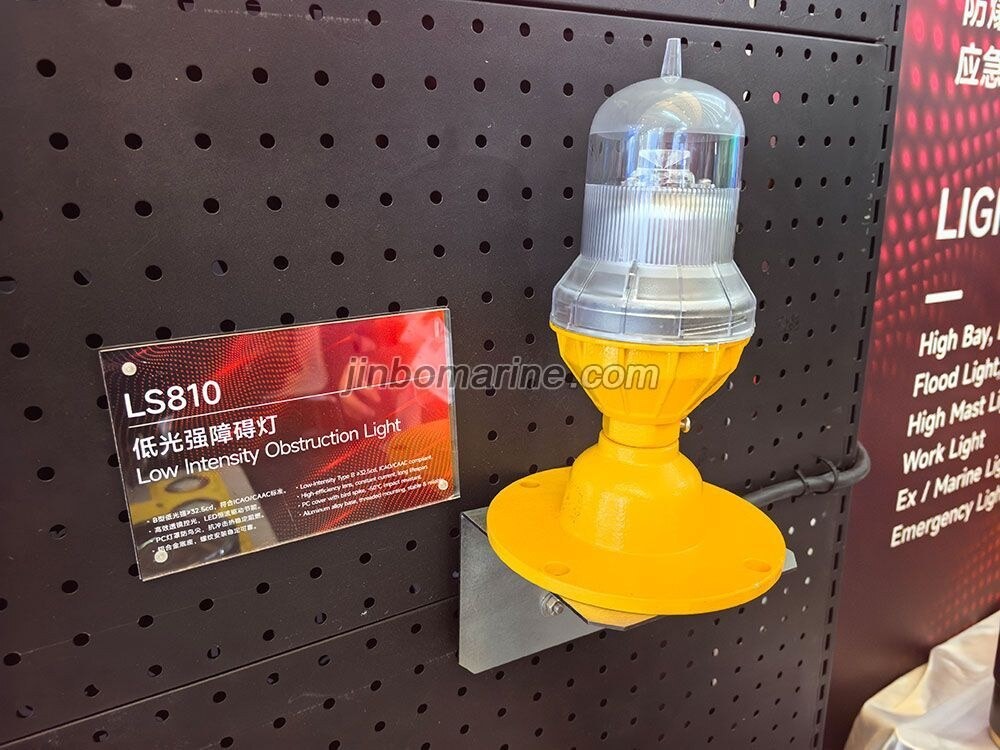

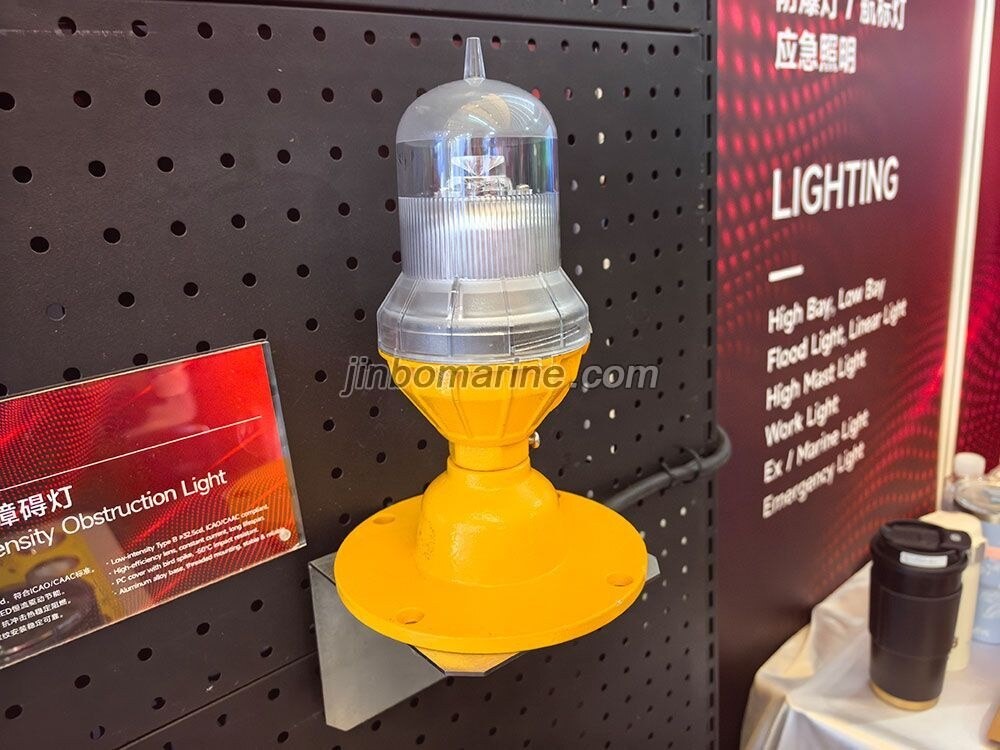

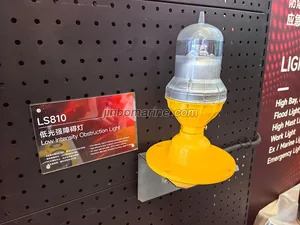

LS810 Low Intensity Obstruction Light
- Category:Life-Saving Light
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
Product Description
LS810 series is a low intensity obstruction light, designed to mark tall structures that ensures aviation safety.It is typically used on structures below 45 meters above ground level, such as telecommunication towers, chimneys, high-rise buildings,bridges, port machinery, large engineering machinery, and wind turbines.
Product Features
The lens has high utilization of light, valid keeping light beam in the scope as required.
Based on LED technology, low power consumption, and high efficiency.
Lamp housing - Polycarbonate, with good anti-impact strength, thermal stability, high transmittance.
Die casting aluminum enclosure with powder-coat paint finishes, providing corrosion resistance and durability.
G3/4"pipe is available, ease of mount.
Work stable,safe and reliable.
Based on LED technology, low power consumption, and high efficiency.
Lamp housing - Polycarbonate, with good anti-impact strength, thermal stability, high transmittance.
Die casting aluminum enclosure with powder-coat paint finishes, providing corrosion resistance and durability.
G3/4"pipe is available, ease of mount.
Work stable,safe and reliable.
Diameter is 171mm,Height 85mm.
Weight 0.3kgs
Electrical
Peak power consumption: 4W
Operating voltage 48VDC/100-240VAC or 12V-24VDC 50/60HZ
Fault alaram:Dry contact @ NO or NC optional
Battery capacity:3.6V/10Ah Ni-MH 20 days:at 25℃ 10 hours per day(0.5s ON 3.5s OFF)
ESD:IEC61000-4-2
Contact discharge:±8kV，Air
discharge:±15kV
IEC61000-4-5
L-L:±6kV，L-G:±6kV
Photometric
Light source:LED
Working state:Steady burning
Light color:RED
Effective intensity:32.5cd
Flash character：256 kinds of flash rate adjustable
Vertical Beam spread:≥8°
Horizontal beam spread：360°
LEDs lifetime:100000h
On/off Level 50-100lux
Housing material:ADC12+PC
Cover material:PC
Operating temperature:-40℃~+55℃
