Marine Aluminum Quick Acting Watertight Door

  • Category:Marine Door
  • Material:Aluminum
  • Standards:CB/T3477-96 & CB/T454-1997 for reference
  • Certificate:CCS, BV, ABS, GL, LR, DNV, NK,RINA, KR,IRS
  • Fob Price:Get Latest Price Now
  • Place of Origin:China
Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

China Marine Aluminum Quick Acting Watertight Door:

Standard: CB/T3477-96 & CB/T454-1997 for reference

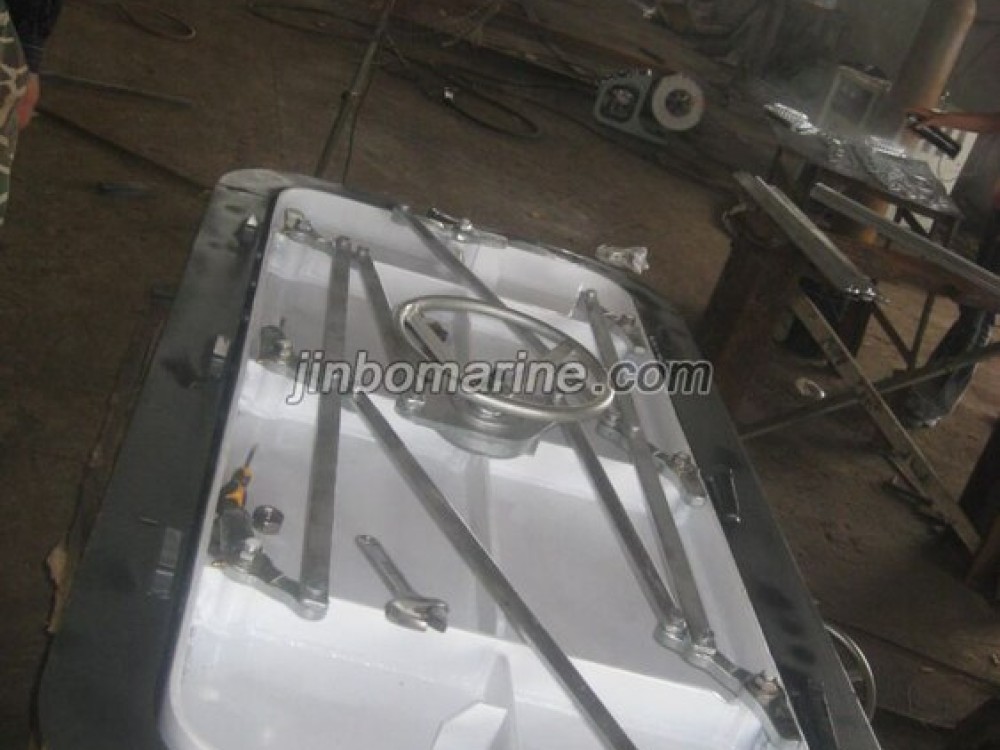

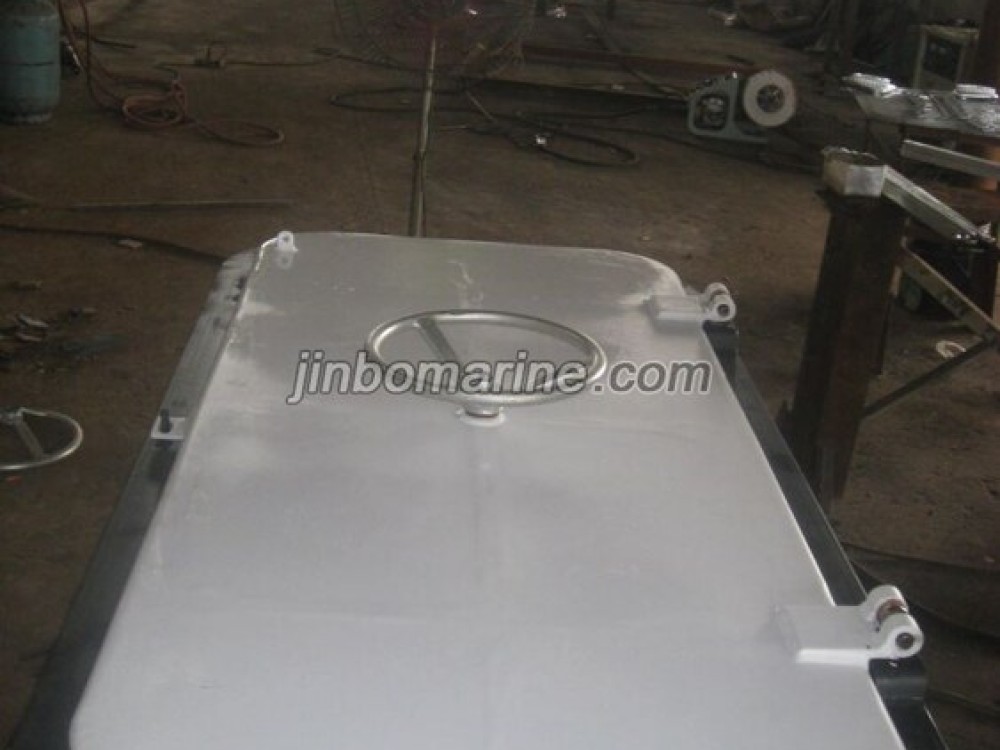

The Aluminum quick acting watertight door is much lighter than the steel one, the door leaf is aluminum, the door frame is steel, operated by the central hand wheel. The hand wheel is made of carbon steel or stainless steel. It also can be with the window.

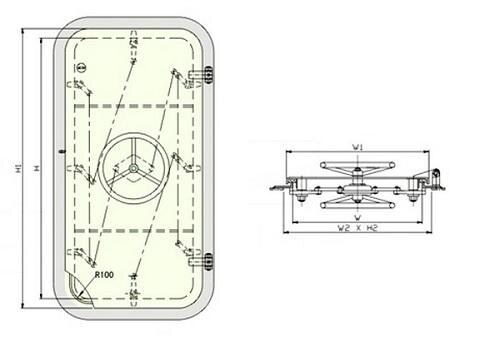

Main Size List(mm):

Doorway Size Door Leaf Size Wall Cut Out Size
WXHXR W1XH1XR1 W2XH2XR2
600x1200x100 645x1245xR124 680X1280XR140
650x1400x100 695X1445XR124 730X1480XR140
650x1600x100 698X1645XR124 730X1480XR140
700x1600x100 745X1645XR124 780X1680XR140
