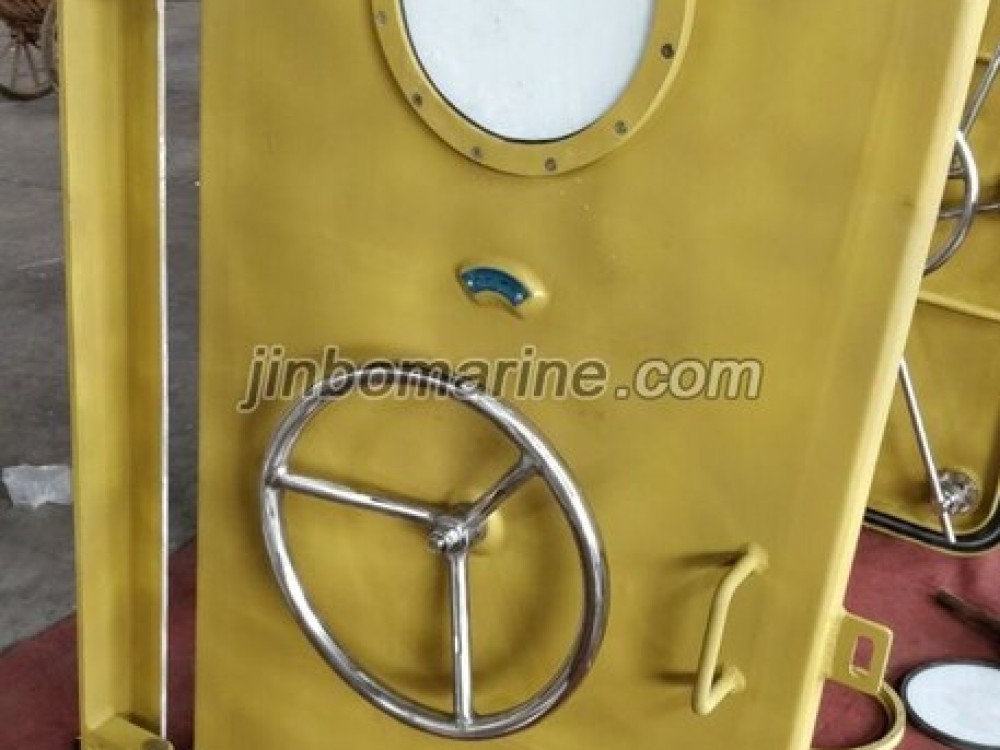

Marine Aluminum Quick Acting Weathertight Door with Central Handwheel

  • Category:Marine Door
  • Material:Aluminum Alloy
  • Standards:CB/T3477-1996
  • Certificate:CCS, BV, ABS, DNV/GL, LR, NK, IRS, RMRS
  • Fob Price:Get Latest Price Now
  • Place of Origin:China
Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

China Marine Aluminum Quick Acting Weathertight Door with Central Handwheel:

Standard: CB/T3477-96 for reference

Marine Aluminum Quick Acting Weathertight Door with Central Handwheel can be with round/square window.

Thickness: 6mm or 8mm.

Material:

Door Leaf---Aluminum Alloy

Door Frame---Aluminum Alloy or Steel

Handwheel---Carbon Steel with hot dip galv or Stainless Steel

Main Size List(mm):

Doorway Size Door Leaf Size Wall Cut Out Size
WXHXR W1XH1XR1 W2XH2XR2
600x1200x100 645x1245xR124 680X1280XR140
650x1400x100 695X1445XR124 730X1480XR140
650x1600x100 698X1645XR124 730X1480XR140
700x1600x100 745X1645XR124 780X1680XR140
