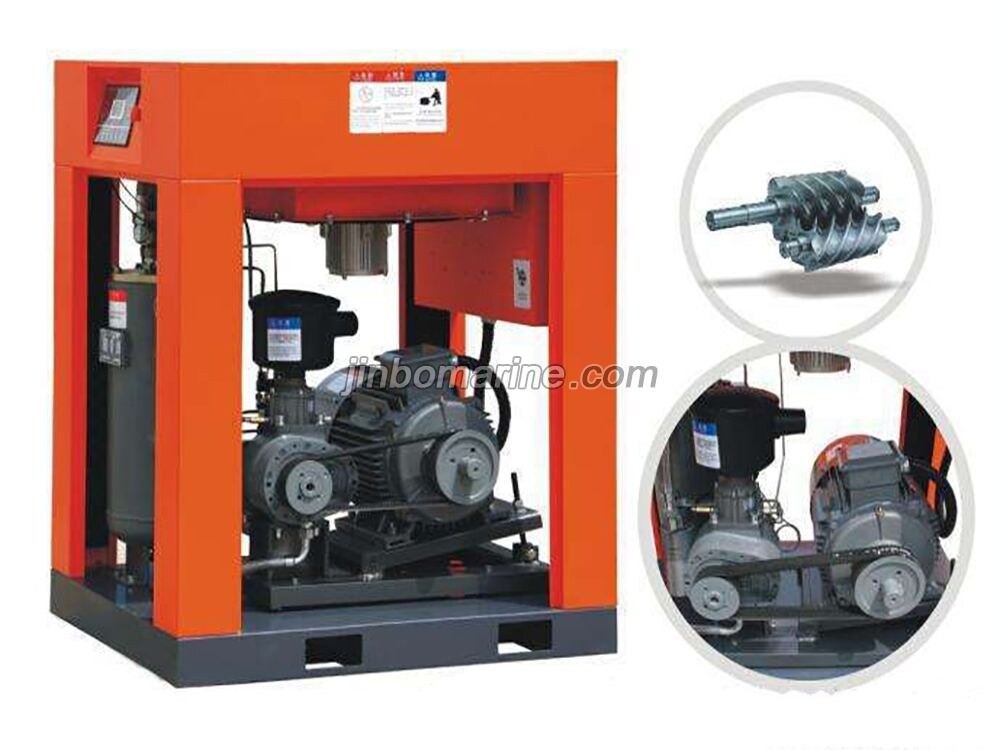

Marine Belt Screw Compressor
- Category:Screw Compressor
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
China Marine Belt Screw Compressor:
The elastic belt will be automatically tensioned in use. Through adjusting the tension, minimize the loss of the pressure and power, to enhance the efficiency of compression.
Using the precise spin-oil separator and special two-pole buffer separation, it can minimize the oil consumption, guarantee the outlet gas purity and extend the lifetime of filler elements.
With the toothed V-belt, it has a good heat dissipation, long life, higher gear drive and transmission efficiency, as high as over 98%.
Specification
| Model | Displacement | Exhuast Pressure | Power | Weight | Dimension |
| (m3/min) | (bar) | (KW) | (KG) | (L*W*Hmm) | |
| GRF-10A | 1.2 | 7 | 7.5 | 350 | 1120*600*1420 |
| 1.1 | 8 | ||||
| 1.0 | 10 | ||||
| 0.8 | 13 | ||||
| GRF-15A | 1.7 | 7 | 11 | 360 | 1120*600*1420 |
| 1.60 | 8 | ||||
| 1.4 | 10 | ||||
| 1.1 | 13 | ||||
| GRF-20A | 2.6 | 7 | 15 | 511 | 1050*775*1100 |
| 2.4 | 8 | ||||
| 2.1 | 10 | ||||
| 1.6 | 13 | ||||
| GRF-25A | 3.0 | 7 | 18.5 | 550 | 1050*775*1100 |
| 2.8 | 8 | ||||
| 2.6 | 10 | ||||
| 1.9 | 13 | ||||
| GRF-30A | 3.6 | 7 | 22 | 678 | 1200*1000*1150 |
| 3.4 | 8 | ||||
| 3.1 | 10 | ||||
| 2.7 | 13 | ||||
| GRF-40A | 5.2 | 7 | 30 | 736 | 1200*1000*1150 |
| 5.0 | 8 | ||||
| 4.5 | 10 | ||||
| 3.7 | 13 | ||||
| GRF-50A | 6.6 | 7 | 37 | 940 | 1500*1100*1350 |
| 6.4 | 8 | ||||
| 5.6 | 10 | ||||
| 4.8 | 13 | ||||
| GRF-60A | 8.0 | 7 | 45 | 1089 | 1500*1100*1350 |
| 7.6 | 8 | ||||
| 7.0 | 10 | ||||
| 5.8 | 13 | ||||
| GRF-75A | 10.3 | 7 | 55 | 1397 | 1750*1250*1520 |
| 10.0 | 8 | ||||
| 8.5 | 10 | ||||
| 7.5 | 13 | ||||
| GRF-100A | 13.6 | 7 | 75 | 1600 | 1750*1250*1520 |
| 12.4 | 8 | ||||
| 11.1 | 10 | ||||
| 10.0 | 13 |
