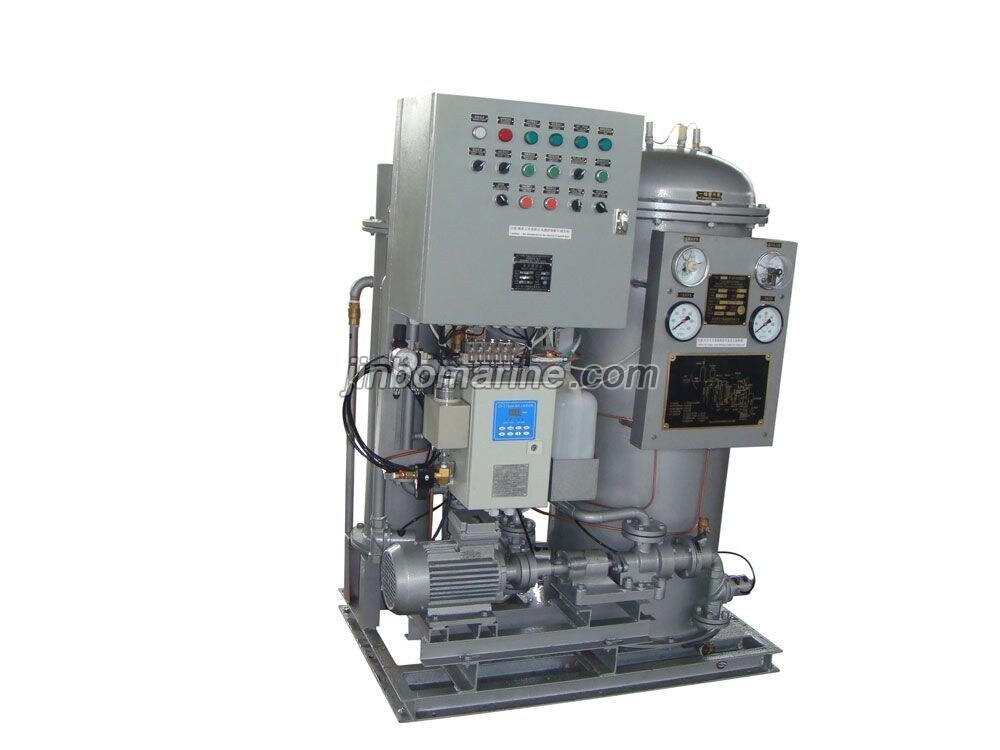

China Marine Bilge Water Separator

This Marine Bilge Water Separator can treat in bilge water effectively,make the oil content in effluent water≤15ppm,satisfy with the requirements of IMO MEPC.107(49).

The device adopts the combination of 1st stage, cone plate gravity and coalesce separation

2nd stage, fiber filter and 3rd stage, membrane permeation in order to make the treated bilge water to reach the requirements of discharge standard of the resolution of IMO MEPC.107 (49).

Technical Data:

Type YWC-
Technical Specifications 0.25 0.5 1 1.5 2 2.5 3 4 5
Rated capacity(m3/h) 0.25 0.5 1 1.5 2 2.5 3 4 5
Oil content of the discharged water Not more than 15ppm
Power of the electric heater(kw) 1kw 3kw 6 6 6 6 6 12 12
Electrical System AC 380V、50Hz、3φ/ AC 415V、50Hz、3φ/AC 440、60Hz、3φ/AC 480V、60HZ、3φ
Power of the electric motor 0.37kw 0.55kw 0.75kw 1.1kw 1.1kw 1.5kw 1.5kw 2.2kw 2.2kw
Suction head Not more than 6m-H2O
Pressure of the discharged water 5-10m-H2O
Outline Dimension(Length×Width×Height)(mm) 1000×600 1100×690 1050×1000 1100×1130 1900×1120 1900×1120 1700×1500 2280×1700 2590×2000
×1250 ×1460 ×1620 ×1650 ×1700 ×1900 ×1900 ×1900 ×1900
base 5# 6# 6# 6# 8# 8# 8# 10# 10#
Weight Dry Weight 400 600 800 1060 1260 1500 1800 2100 2500
Wet Weight 550 900 1200 1650 2260 2800 3200 3900 4600
