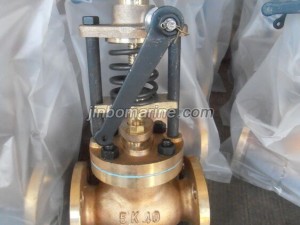

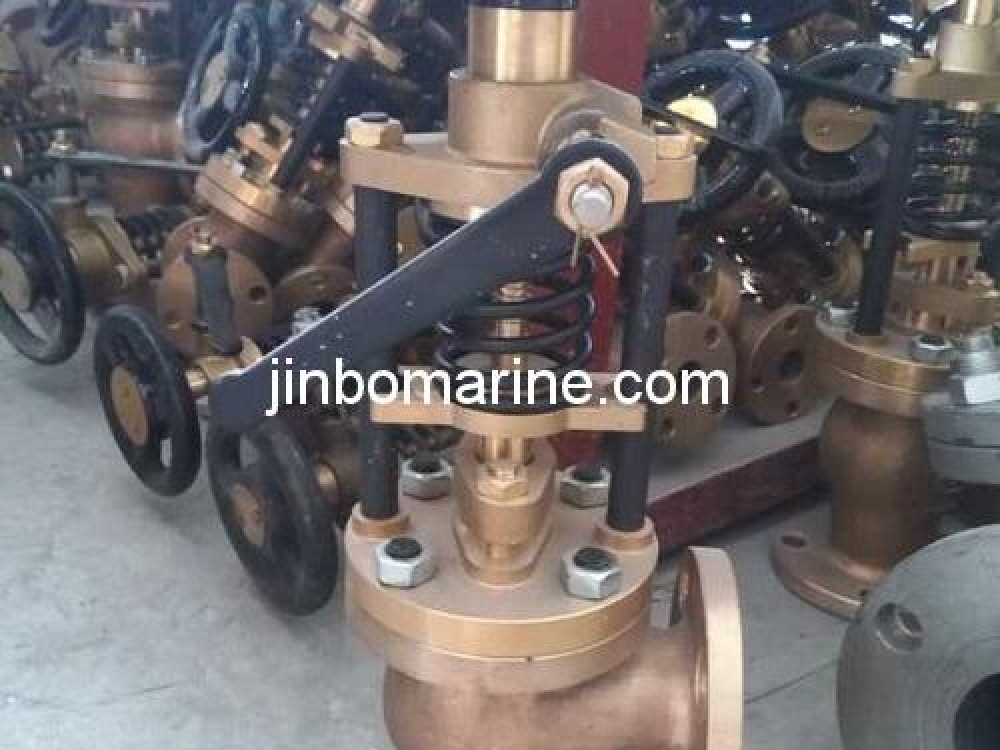

Marine Bronze Angle Emergency Shut-Off Valve JIS F7399 5K

Marine Bronze Emergency Shut-Off Angle Valve is also can be called as Marine Bronze Angle Quick Closing Valve.

Operation type: Manual (Lever) or Pneumatically operated

Design Standard: JIS F7399-1996

Test Standard: JIS 7400-1996

Hydraulic Test Pressure:Body- 0.7Mpa, Seat-0.2Mpa,Seal for quick closing-0.1Mpa

Flange size as per JIS B2220 - 5K or 10K

Body: Bronze (BC6)

Bonnet: Bronze (BC6)

Seat: Brone (BC6)

Disc: Bronze (BC6)

Stem: Brass (C3771BD)

Operation Spindle: SUS403

Operation Lever: SUS403

Handwheel: FC200 (Cast iron)

Gasket: non-asbestos
