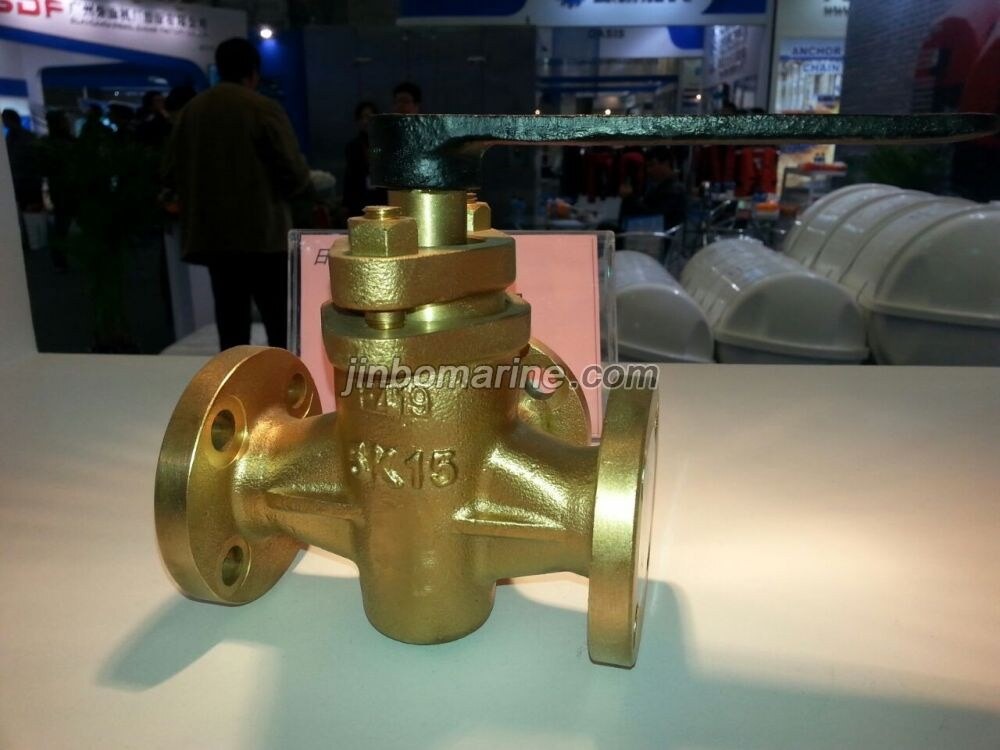

Marine Bronze Flanged Cock JIS F7381
- Category:JIS Marine Cock
- Material:Bronze
- Standards:JIS F7381
- Certificate:CCS, BV, ABS, GL, LR, DNV, NK,RINA, KR,IRS
- IMPA Code:751601~751616
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
China Marine Bronze Flanged Cock JIS F7381:
Design Standard: JIS F7381-1996
Test Standard: JIS F7400-1996
Max Working Pressure； 0.5Mpa
Hydraulic Test Pressure: Body-7.5Mpa, Plug-5.5Mpa
Flange size as per JIS B2220 5K
Suitable Medium: water, fuel oil, Lub oil
*There are two way cock, and three way cock. 3 way cock has T type & L type.
Main Material:
1.Body:Bronze(BC6)
2.Plug:Bronze(BC6)
3.Packing gland: Brass
4.Seal Ring: Brass
5.Handle: Steel
6.Stud: Brass
7. Hexagon Nut: Brass
8.Packing: Asbestos

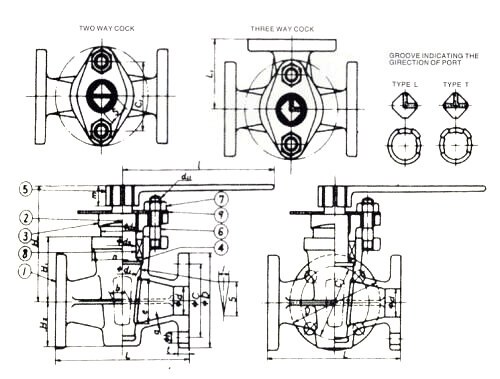

Main Size List(mm):
| IMPA | Size | L | D | C | No of bolt hole | d | H |
| Two-Way | |||||||
| 751601 | 25 | 130 | 95 | 75 | 4 | 12 | 105 |
| 751602 | 32 | 160 | 115 | 90 | 4 | 15 | 125 |
| 751603 | 40 | 170 | 120 | 95 | 4 | 15 | 135 |
| 751604 | 50 | 190 | 130 | 105 | 4 | 15 | 163 |
| 751605 | 65 | 220 | 155 | 130 | 4 | 15 | 201 |
| L type Three-Way | |||||||
| 751607 | 25 | 130 | 95 | 75 | 4 | 12 | 105 |
| 751608 | 32 | 160 | 115 | 90 | 4 | 15 | 125 |
| 751609 | 40 | 170 | 120 | 95 | 4 | 15 | 135 |
| 751610 | 50 | 190 | 130 | 105 | 4 | 15 | 163 |
| 751611 | 65 | 220 | 155 | 130 | 4 | 15 | 201 |
| T type Three-Way | |||||||
| 751612 | 25 | 130 | 95 | 75 | 4 | 12 | 105 |
| 751613 | 32 | 160 | 115 | 90 | 4 | 15 | 125 |
| 751614 | 40 | 170 | 120 | 95 | 4 | 15 | 135 |
| 751615 | 50 | 190 | 130 | 105 | 4 | 15 | 163 |
| 751616 | 65 | 220 | 155 | 130 | 4 | 15 | 201 |
