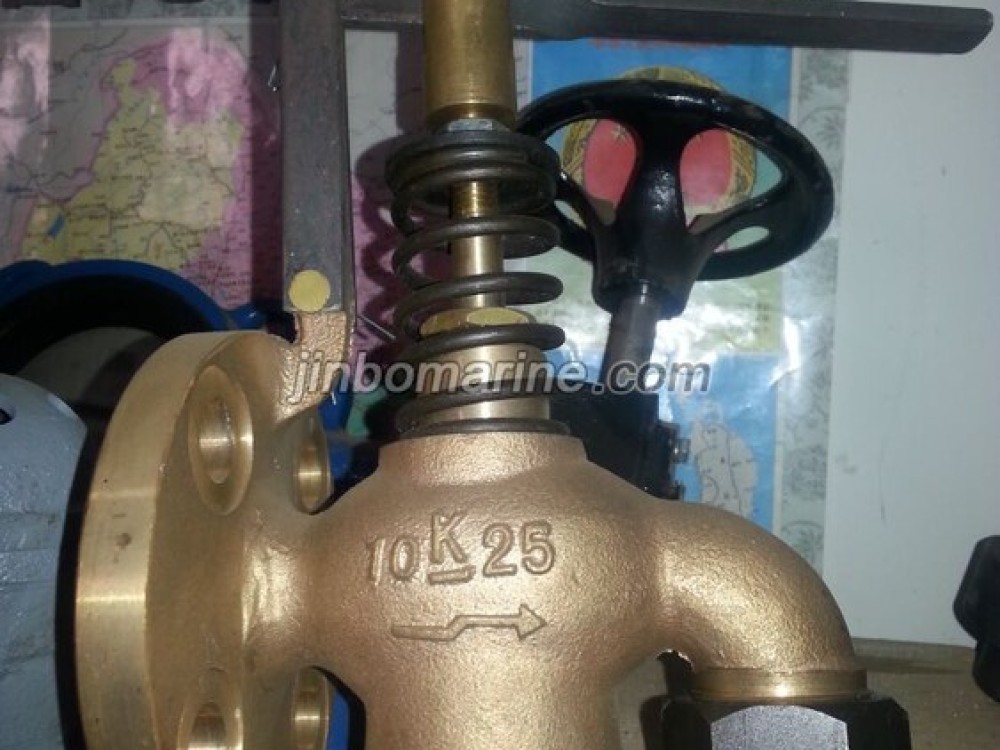

China Marine Bronze Fuel Oil Tank Self-Closing Drain Valve JIS F7398U 10K:


Marine Bronze Fuel Oil Tank Self-Closing Drain Valve is spring loaded valve, used on the marine fuel oil pipe system.

Design Standard: JIS F7398-1996

Test Standard: JIS 7400-1996

Hydraulic Test Pressure: Body-0.15Mpa, Seal-0.11Mpa

Flange size as per JIS B2220 - 10K

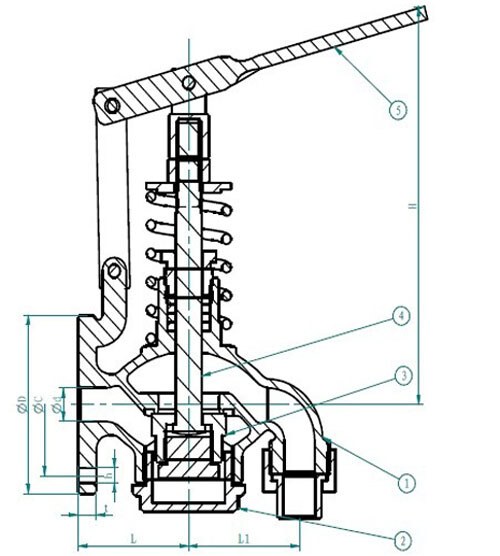

Main Material:

1.Body: Bronze (BC6)

2.Bonnet: Bronze (BC6)

3.Disc: Bronze (BC6)

4.Stem: Brass (C3771BD)

5.Lever: SS400

6. Gasket: non-asbestos

Main Size List(mm):

DN d L L1 D C NO. h t H
10K15U 15 55 55 95 70 4 15 12 179
10K20U 20 65 65 100 75 4 15 14 187
10K25U 25 65 65 125 90 4 19 14 187
10K40U 40 90 100 140 105 4 19 16 229
10K50U 50 115 130 155 120 4 19 16 252
10K65U 65 135 155 175 140 4 19 18 252
