Marine Bronze Globe Valve JIS F7301 5K
Marine Bronze Globe Valve or Marine Brass Globe Valve can be called as Marine Bronze/Brass Stop Valve. Function: Open/Close the pipe system Design Standard: JIS F7301-1996 ...
Loading product images...

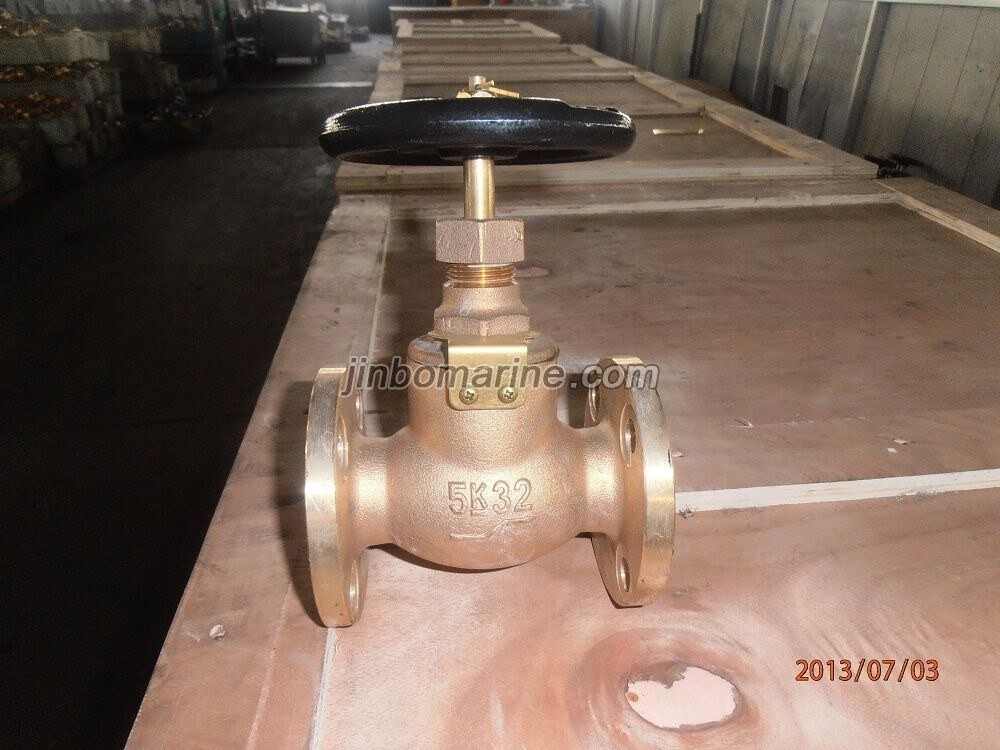

Marine Bronze Globe Valve JIS F7301 5K
PDF Datasheet
We can supply according to your requirement.
China Marine Bronze Globe Valve JIS F7301 5K:
Marine Bronze Globe Valve or Marine Brass Globe Valve can be called as Marine Bronze/Brass Stop Valve.
Function: Open/Close the pipe system
Design Standard: JIS F7301-1996
Test Standard: JIS F7400-1996
Test Pressure: Body-1.05Mpa, Seat-0.77Mpa
Flange Size as per JIS B2220-5K
*DN15-DN40 with screwed bonnet, DN50-DN65 with bolted bonnet
Main Material:
1-Body: Bronze (BC6)/ Brass
2-Disc:Bronze (BC6) / Brass
3-Stem: Brass (C3771BD)
4-Bonnet:Bronze (BC6) /Brass
5-Handwheel: Cast Iron (FC200)

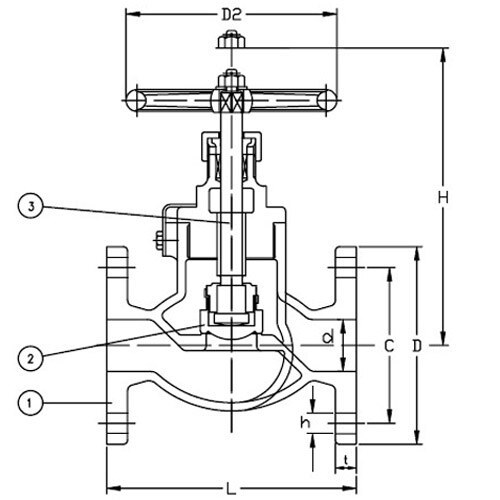

Main Size List(mm):
| IMPA Code | Size | Face to Face (L) | Flange diam. (D) | Pitch (C) | No of Bolt Hole | h | t | H | D2 |
|---|---|---|---|---|---|---|---|---|---|
| 750121 | 15 | 100 | 80 | 60 | 4 | 12 | 9 | 130 | 80 |
| 750122 | 20 | 110 | 85 | 65 | 4 | 12 | 10 | 140 | 100 |
| 750123 | 25 | 120 | 95 | 75 | 4 | 12 | 10 | 160 | 125 |
| 750124 | 32 | 140 | 115 | 90 | 4 | 15 | 12 | 170 | 125 |
| 750125 | 40 | 160 | 120 | 95 | 4 | 15 | 12 | 190 | 140 |
| 750126 | 50 | 210 | 130 | 105 | 4 | 15 | 14 | 235 | 140 |
| 750127 | 65 | 250 | 155 | 130 | 4 | 15 | 14 | 260 | 160 |
