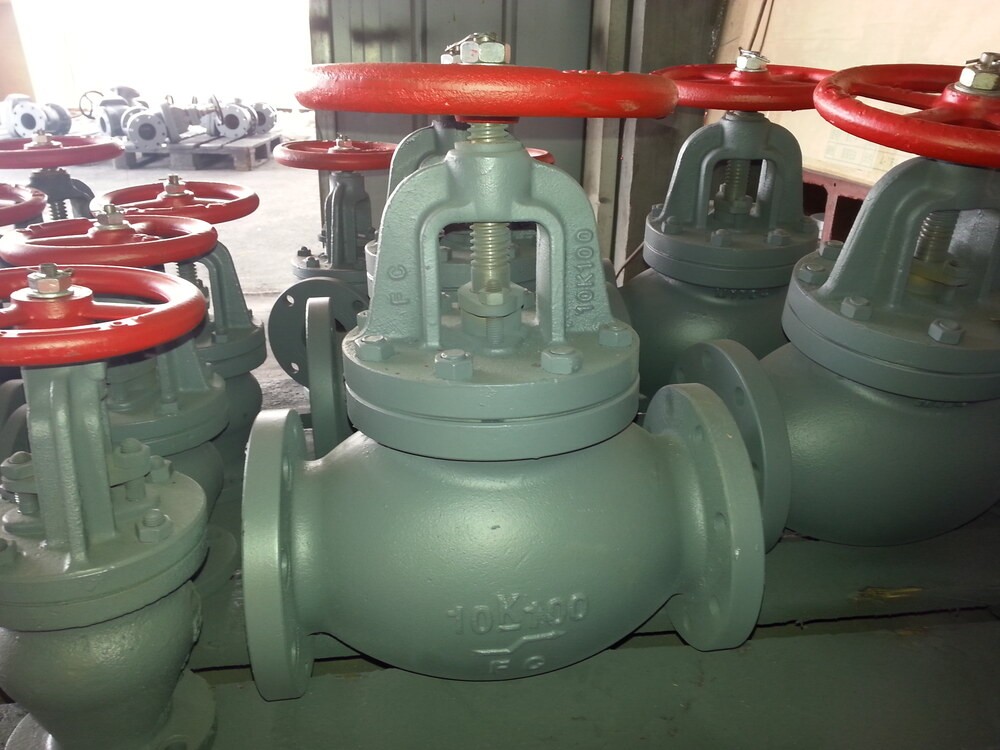

Marine Cast Iron Globe Valve JIS F7307 10K

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

China Marine Cast Iron Globe Valve JIS F7307 10K:

Marine Cast Iron Globe Valve is suitable for the pipe system with the medium fresh water, air & other gas, oil and steam with the temperature not over 205 centigrade degree.

Design Standard: JIS F7307-1996

Test Standard: JIS 7400-1996

Hydraulic Test Pressure: Body-2.1Mpa, Seat-1.54Mpa

Flange size as per JIS B2220 -10K

Main Material:

Body: Cast Iron (FC200)

Bonnet: Cast Iron (FC200)

Packing Gland: Bronze (BC6) or Stainless Steel (2Cr13)

Stem: C3771BD (Brass) or SUS403

Seat: Bronze (BC6) or Stainless Steel (2Cr13, SCS2)

Disc: Bronze (BC6) or Stainless Steel (2Cr13, SCS2)

Gasket: non-asbestos

Handwheel: Cast Iron (FC200)

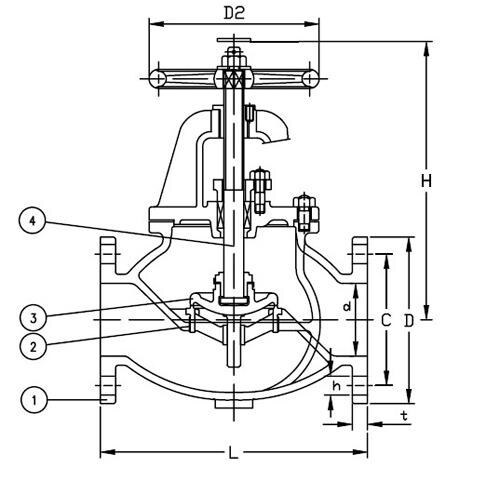

Main Size List(mm):

IMPA CODE Size L D C t H No of Bolt h D2
750231 50 220 155 120 20 285 4 19 160
750232 65 270 175 140 22 310 4 19 200
750233 80 300 185 150 22 320 8 19 200
750234 100 350 210 175 24 370 8 19 250
750235 125 420 250 210 24 420 8 23 280
750236 150 490 280 240 26 470 8 23 315
750237 200 570 330 290 26 555 12 23 355
750238 250 740 400 355 30 680 12 25 450
750239 300 840 445 400 32 770 16 25 500
