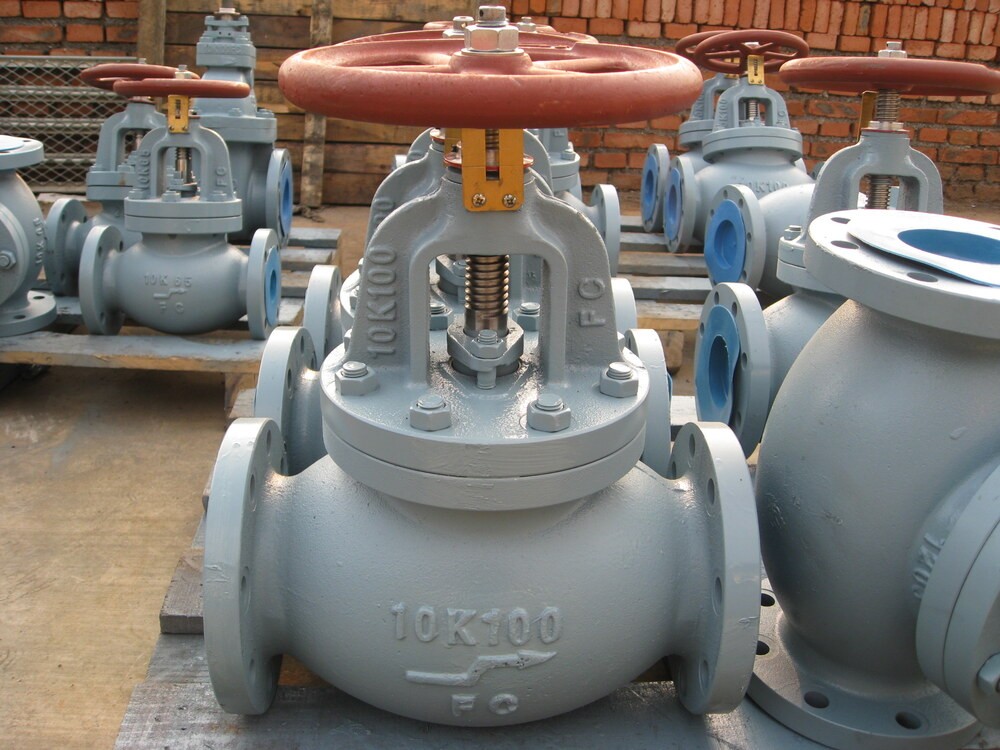

China Marine Cast Iron Screw Down Check Globe Valve JIS F7375 10K:

Marine Cast Iron Screw Down Check Globe Valve also can be called as Marine Cast Iron SDNR Valve or SDNR Globe Valve. It is suitable for the pipe system with the medium fresh water, air & other gas, oil and steam with the temperature not over 205 centigrade degree.

Design Standard: JIS F7375-1996

Test Standard: JIS 7400-1996

Hydraulic Test Pressure: Body-2.1Mpa, Seat-1.54Mpa

Flange size as per JIS B2220 -10K

* The standard one is without indicator, if the customer needs the indicator for the SDNR Valve, pls state when inquiry or order.

Main Material:

Body: Cast Iron (FC200)

Bonnet: Cast Iron (FC200)

Packing Gland: Bronze (BC6) or Stainless Steel (2Cr13)

Stem: C3771BD (Brass) or SUS403

Seat: Bronze (BC6) or Stainless Steel (2Cr13, SCS2)

Disc: Bronze (BC6) or Stainless Steel (2Cr13, SCS2)

Gasket: non-asbestos

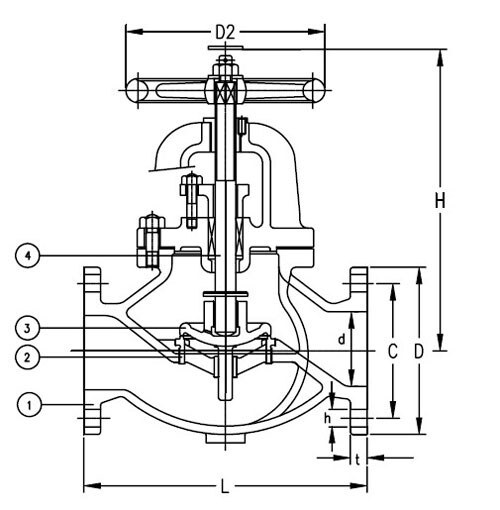

Main Size List(mm):

IMPA CODE Size L D C t H No of Bolt h D2
751131 50 220 155 120 20 285 4 19 160
751132 65 270 175 140 22 310 4 19 200
751133 80 300 185 150 22 320 8 19 200
751134 100 350 210 175 24 370 8 19 250
751135 125 420 250 210 24 420 8 23 280
751136 150 490 280 240 26 470 8 23 315
751137 200 570 330 290 26 555 12 23 355
751137 250 740 400 355 30 680 12 25 450
751137 300 840 445 400 32 770 16 25 500
