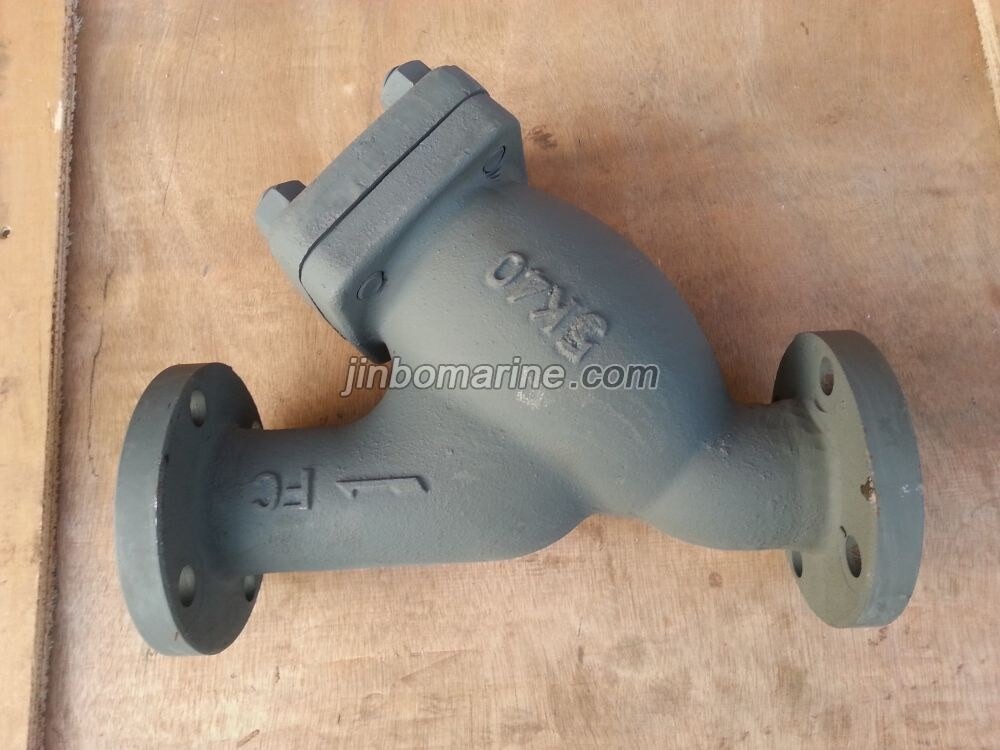

Marine Cast Iron Y strainer JIS F7220 5K

Request a Quote Not what you need, please send your RFQs via Email.

Details

China Marine Cast Iron Y strainer JIS F7220 5K:

Y Strainer is normally installed in the inlet side of the hydraulic control valve,relief valve, relief valve, inlet pressure water valves and other equipments, used to remove the impurities in the medium in order to protect the equipment and pipe fittings.

Design Standard: JIS F7220-1996

Test Standard: JIS 7200-1996

Hydraulic Test Pressure: Body- 1.05Mpa

Flange size as per JIS B2220 - 5K

Marine Material:

1.Body-Cast Iron (FC200)

2.Bonnet-Cast Iron (FC200)

3.Strainer-Stainless Steel (SUS304)

4.Gasket:non-asbestos

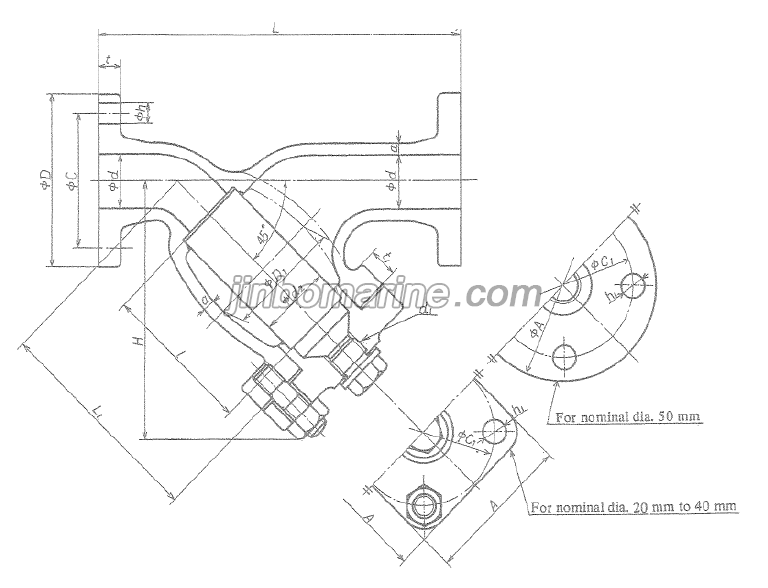

Main Size List(mm):

DN
d L D C Hole (n-d) t H
20 20 200 85 65 4-12 14 127
25 25 225 95 75 4-12 14 155
32 32 260 115 90 4-15 16 164
40 40 280 120 95 4-15 16 180
50 50 320 130 105 4-15 16 208
65 65 350 155 130 4-15 18 253
80 80 373 180 145 4-19 18 268
100 100 390 200 165 8-19 20 286
125 125 410 235 200 8-19 20 295
150 150 430 265 230 8-19 20 318
