Marine Clear View Screen

Request a Quote Not what you need, please send your RFQs via Email.

Details

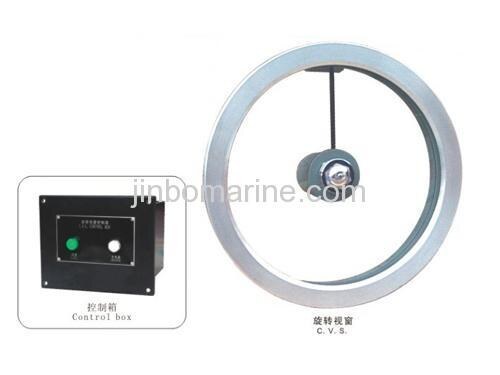

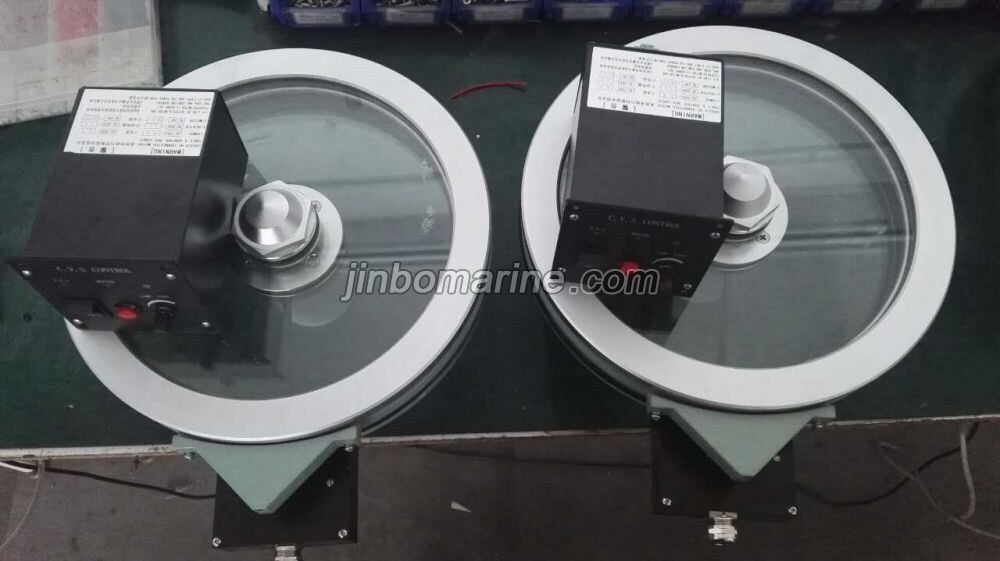

China Marine Clear View Screen:

Marine Clear View Screen made of double layer glass structure for preventing rain and water, better visual field under normal condition. Marine Clear View is suitable for oil tankers, chemical tankers and high speed naval ships.

Ship Clear View Screen has the feature of removing the rain, snow and sea water from the window with the centrifugal force generated from the high speed rotation of glass driven by the motor, keep clear vision.

Main Specification:

Voltage: AC220V, AC110V, DC24V

Frequency: 50Hz/60Hz

Input Power:

Motor Power <=90W

Heater Power <=250W

Protection Grade:

Outdoor IP56 Indoor IP22

Thickness of Mounting Wall:10-22mm

Main Model

External Diameter (mm) Diameter of transparent glass (mm) Dimension of mounting wall (mm) Weight (kgs)
370 300 341 10.5
420 350 391 12.5

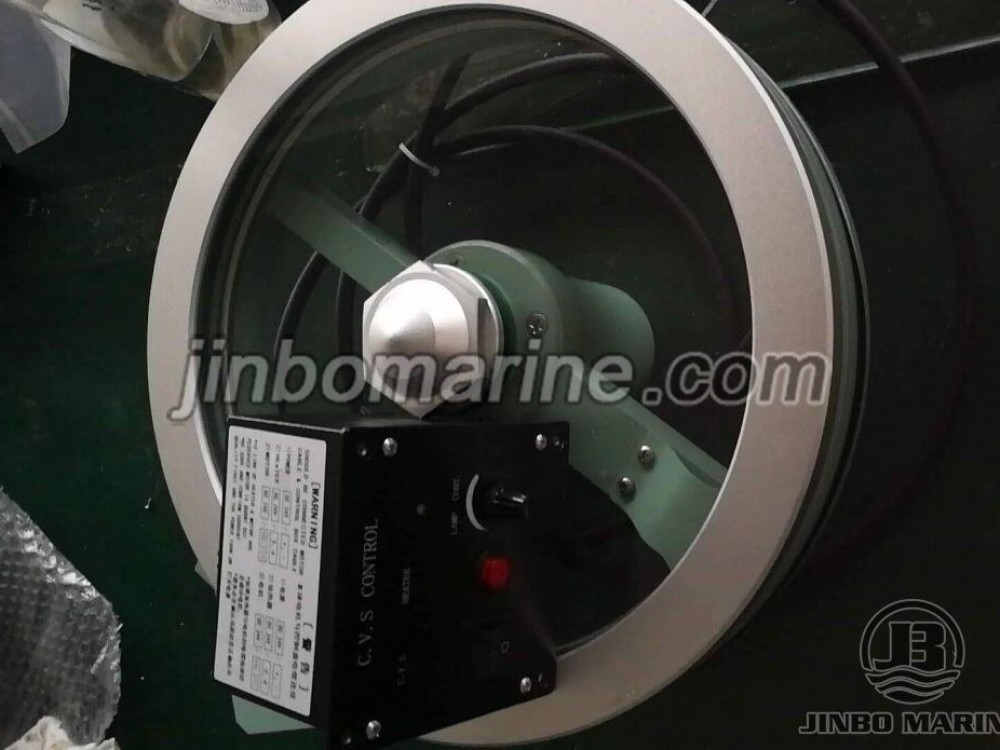

300mm Marine Clear View Screen, Glass thickness 8mm
