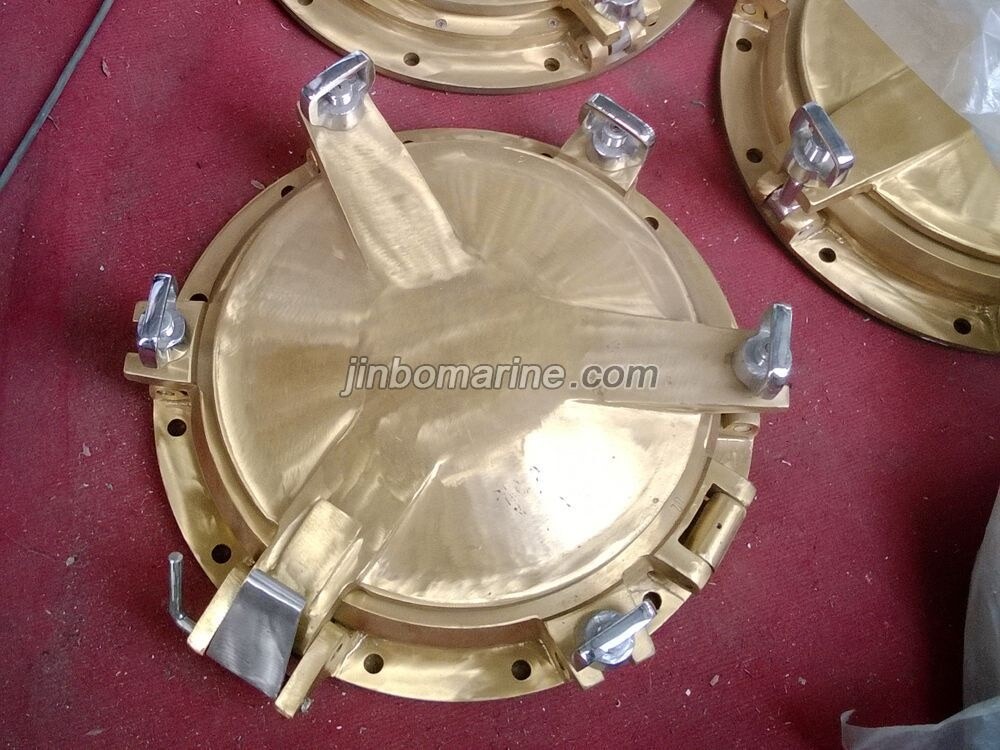

Marine Copper Porthole with Storm Cover
- Category:Marine Window
- Material:Copper
- Standards:GB/T14413-93
- Certificate:CCS, BV, ABS, GL, LR, DNV, NK,RINA, KR,IRS
- Fob Price:Get Latest Price Now
- Place of Origin:China
Details
Marine Copper Porthole with Storm Cover:
Standard: GB/T14413-93
It is also be called as side scuttle, the material can be aluminum, copper or steel, is used for sea-going ships and warships, also can be used for inland ship.
The side scuttle can be with or without storm cover, the storm cover also be called as deadlight.
1. List for model of porthole and the principal characteristics of scope:
|
Name |
Type |
Clear Size (D) |
Opening Type |
Mounting Type |
Material code number |
Opening and fastening type of deadlight |
Glass |
ApplicationPlace |
||
|
Opening |
Non-opening |
Bolted |
Welded |
|||||||
|
Heavy |
A |
200 |
Left opening type, right opening type, common hinge type |
Fixed type |
Bolted or welded |
112 |
212 or 222 |
Hook (G) or Pawl (J) |
Transparent or Frosted |
The spaces below bulkhead deck or freeboard of marine ships, which are allowed to cut openings on the sides and required to be watertight and gastight |
|
250 |
||||||||||
|
300 |
||||||||||
|
350 |
||||||||||
|
400 |
||||||||||
|
Medium |
B |
200 |
112 or 222 or 333 |
212 or 222 or 233 |
The sides above bulkhead deck or free board deck of passenger ships, or the ends o superstructures. Both sides and ends of the first tier of superstructure on the freeboard deck of ships other than passenger ship. |
|||||
|
250 |
||||||||||
|
300 |
||||||||||
|
350 |
||||||||||
|
400 |
||||||||||
|
450 |
||||||||||
|
Light |
C |
200 |
Opening |
220 or 330 or 110 |
210 or 220 or 230 |
Nothing |
The sides and rear-ends of first tier of superstructure above bulkhead deck or freeboard deck of passenger ships or all tiers above the first tier of superstructure. The sides and rear-ends of all tiers above the first tier of superstructure on free board deck of ships other than passenger ships. |
|||
2.Opening and Fastening models of Storm Cover:
|
Clear Size (D) |
200 |
250 |
300 |
350 |
400 |
450 |
|
|
minimum distance of side scuttle centre to ceiling |
Paw (J) |
300 |
350 |
400 |
450 |
540 |
580 |
|
Hook (G) |
selected by user |
||||||
3.Main Size List(mm):
| Model | D | D1 | D2 | D3 | D4 | D5 | h | t | a | No of fasterners | Bolts for installation | Wall Cut Out Size | |||
| Storm Cover | Glass Holder | Thread | Quantity | ||||||||||||
| A | LB,RB,SB,NB | 200 | 245 | 204 | 250 | 350 | 310 | 155 | 8 | 45° | 2 | 3 | M12 | 8 | 253 |
| 250 | 295 | 254 | 305 | 400 | 363 | 182 | 8 | 48° | 2 | 3 | M16 | 8 | 308 | ||
| 300 | 350 | 304 | 360 | 450 | 414 | 207 | 10 | 31° | 3 | 3 | M16 | 12 | 363 | ||
| 350 | 400 | 354 | 410 | 500 | 464 | 232 | 12 | 31° | 3 | 3 | M16 | 12 | 413 | ||
| 400 | 450 | 404 | 460 | 550 | 514 | 257 | 12 | 31° | 3 | 3 | M18 | 12 | 463 | ||
| Model | D | D1 | D2 | D3 | D4 | D5 | h | t | a | No of fasterners | Bolts for installation | Wall Cut Out Size | |||
| Storm Cover | Glass Holder | Thread | Quantity | ||||||||||||
| B | LB,RB,SB,NB | 200 | 245 | 204 | 250 | 350 | 310 | 155 | 8 | 45° | 2 | 3 | M12 | 8 | 253 |
| 250 | 295 | 254 | 305 | 400 | 363 | 182 | 8 | 48° | 2 | 3 | M16 | 8 | 308 | ||
| 300 | 350 | 304 | 360 | 450 | 414 | 207 | 10 | 31° | 3 | 3 | M16 | 12 | 363 | ||
| 350 | 400 | 354 | 410 | 500 | 464 | 232 | 12 | 31° | 3 | 3 | M16 | 12 | 413 | ||
| 400 | 450 | 404 | 460 | 550 | 514 | 257 | 12 | 31° | 3 | 3 | M18 | 12 | 463 | ||
| 450 | 500 | 454 | 510 | 600 | 564 | 282 | 15 | 31° | 3 | 4 | M20 | 12 | 523 | ||
