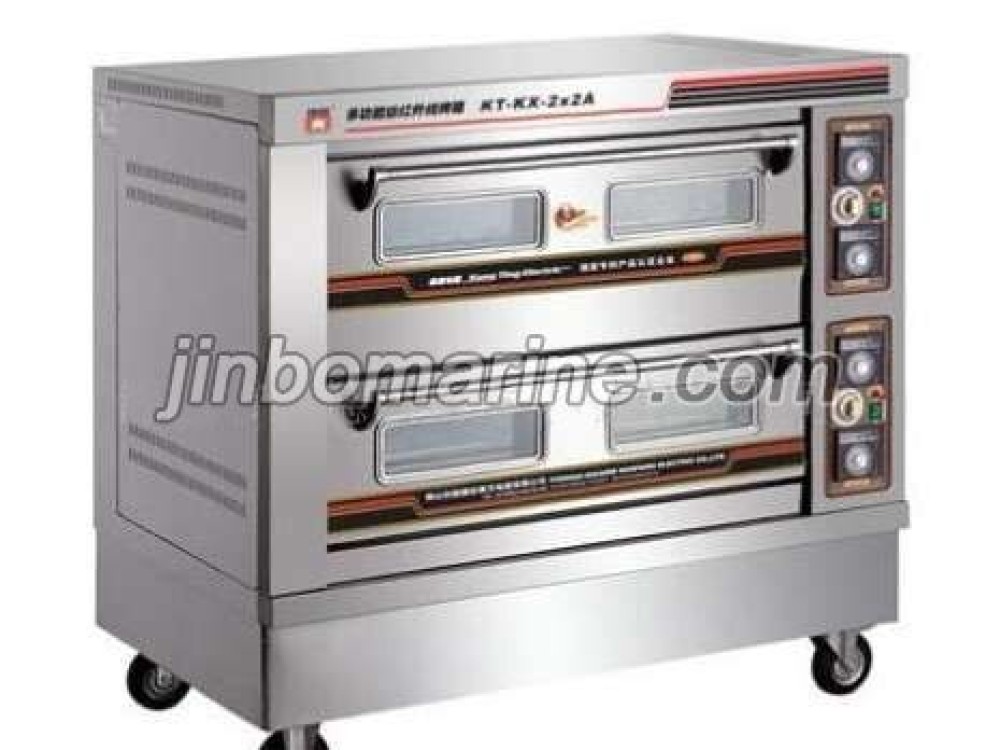

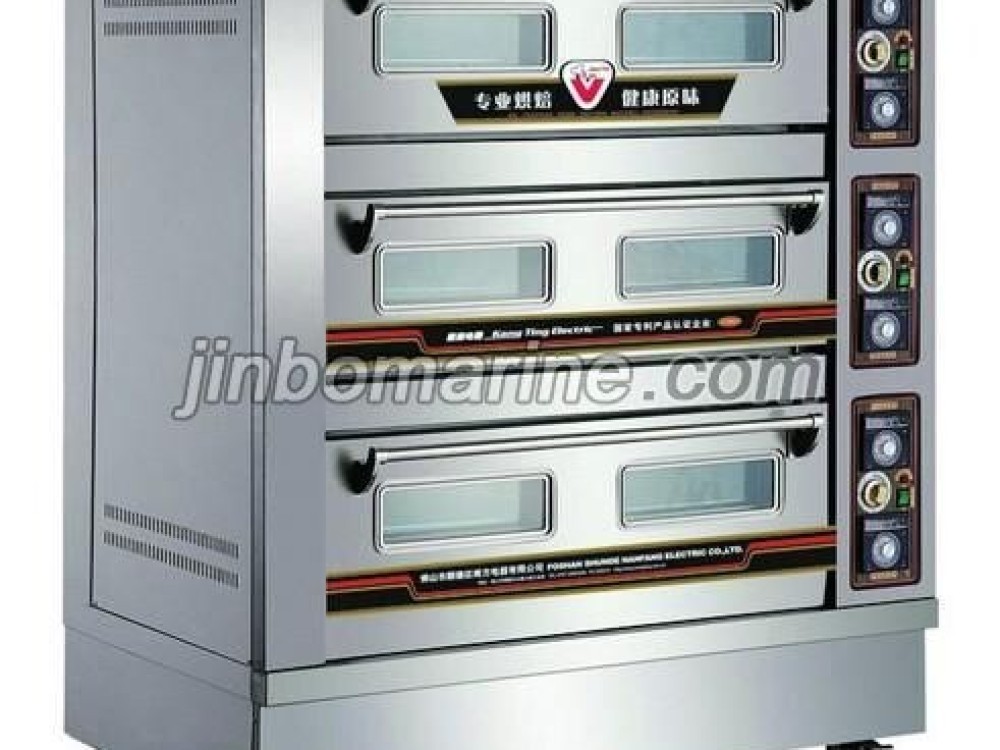

Marine electric oven
- Category:Electric Heater
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
Product Description
All stainless steel structure
The oven with upper and lower two sets of heater and independent control
The oven temperature at 30 ℃, 300 ℃ range can be arbitrary set, and automatic constant temperature
German EGO temperature control switch
There are a variety of configuration combined type to choose
Equipped with fixed bottom adjustable feet, convenient installation
Technical Data
| Model | DKX-3 | DKX-9 | DKX-11 | DKX-15 |
| Electric system | 380V/415V-3PH-50Hz 440V/480V-3PH-60HZ | |||
| Oven power(KW) | 3 | 9.6 | 11.2 | 14.4 |
| Boundary dimension(mm) | 800*800*970 | 800*800*1300 | 800*800*1630 | 800*800*1630 |
| Weight (kg) | 85 | 110 | 170 | 180 |
| Remark |
one oven one storage tank |
two ovens one storage tank |
two ovens one storage tank one fermentation tank |
three ovens one storage tank |
