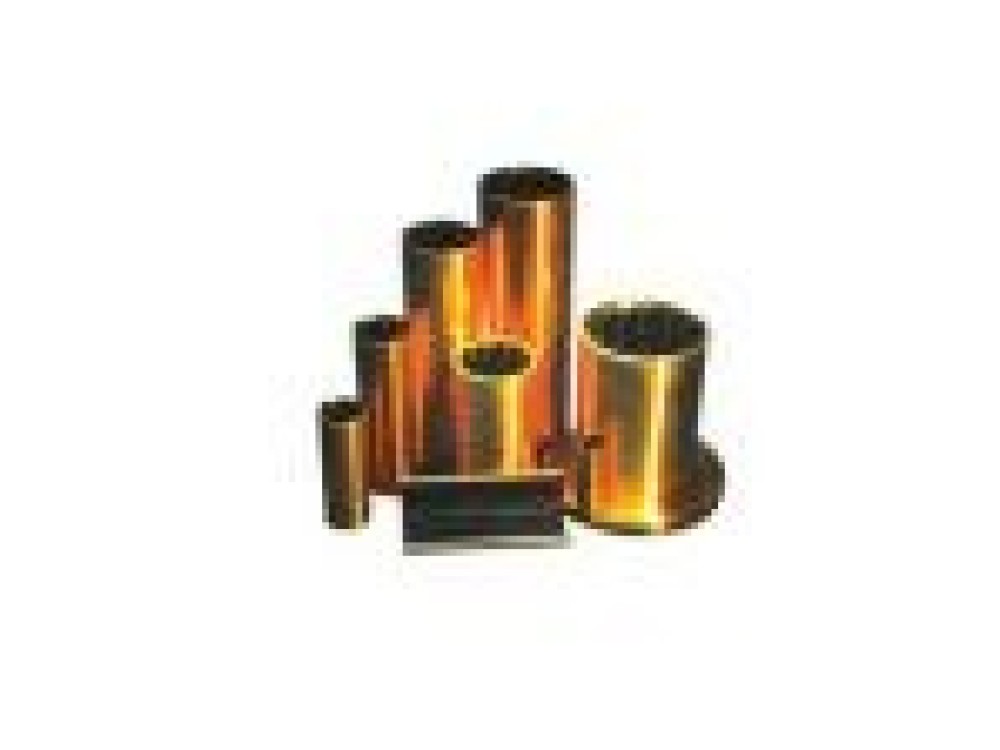

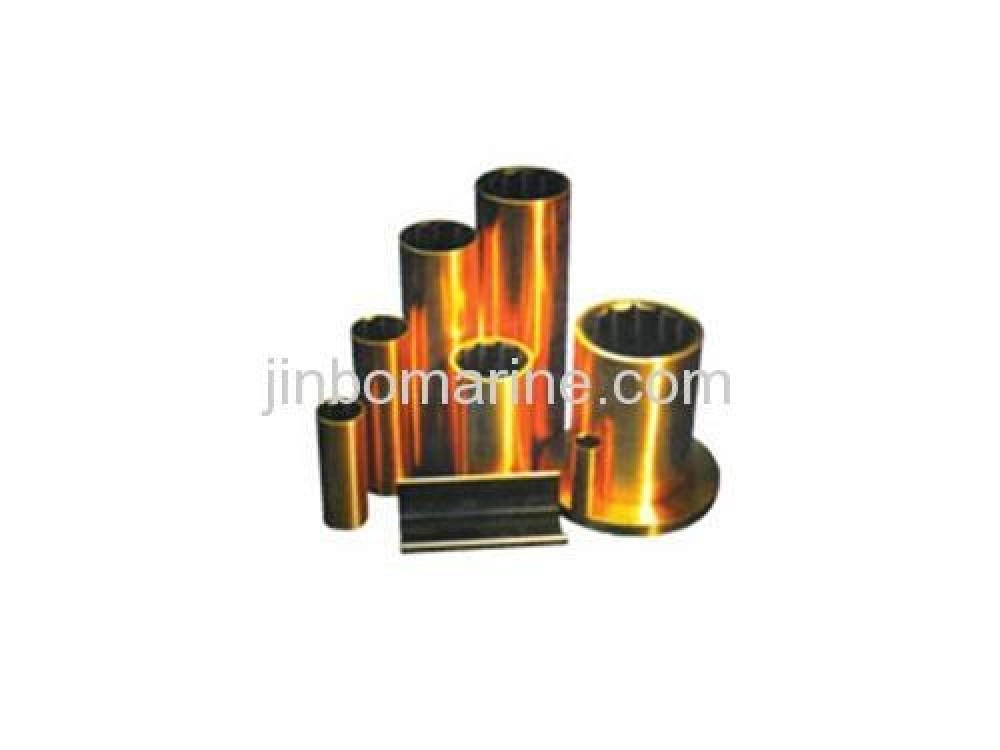

Marine Integral Type Rubber Bearing CB*769-86
- Category:Stern Tube Bearing
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
China Marine Integral Type Rubber Bearing CB*769-86:
Reliable quality with competitive price
| D (mm) | D1(mm) | L (mm) | Wight (kg) | ||
| Normal Type | Extension Type | Normal Type | Extension Type | ||
| 40 | 64 | 120 | 140 | 1.01 | 1.178 |
| 45 | 68 | 135 | 155 | 1.114 | 1.297 |
| 50 | 74 | 150 | 170 | 1.488 | 1.686 |
| 55 | 78 | 150 | 170 | 1.32 | 1.496 |
| 60 | 84 | 165 | 210 | 1.729 | 2.2 |
| 65 | 88 | 180 | 230 | 1.795 | 2.294 |
| 70 | 96 | 190 | 250 | 2.733 | 3.6 |
| 75 | 102 | 210 | 270 | 3.225 | 4.185 |
| 80 | 108 | 220 | 290 | 3.661 | 4.825 |
| 85 | 114 | 240 | 300 | 4.551 | 5.688 |
| 90 | 120 | 250 | 320 | 5.367 | 6.87 |
| 95 | 125 | 260 | 340 | 5.817 | 7.603 |
| 100 | 130 | 280 | 350 | 6.531 | 8.164 |
| 105 | 137 | 290 | 370 | 7.681 | 9.8 |
| 110 | 144 | 300 | 385 | 8.953 | 11.49 |
| 120 | 156 | 330 | 420 | 11.963 | 15.226 |
| 125 | 163 | 163 | 440 | 14.227 | 18.412 |
| 130 | 170 | 170 | 450 | 17.193 | 21.492 |
| 140 | 182 | 182 | 480 | 19.663 | 24.837 |
| 150 | 194 | 194 | 520 | 24.575 | 31.168 |
| 160 | 206 | 206 | 550 | 30.24 | 37.8 |
| 170 | 218 | 218 | 580 | 35.956 | 45.396 |
| 180 | 228 | 228 | 620 | 38.594 | 47.857 |
| 190 | 238 | 238 | 650 | 42.053 | 52.567 |
| 200 | 250 | 250 | 680 | 50.162 | 62.019 |
