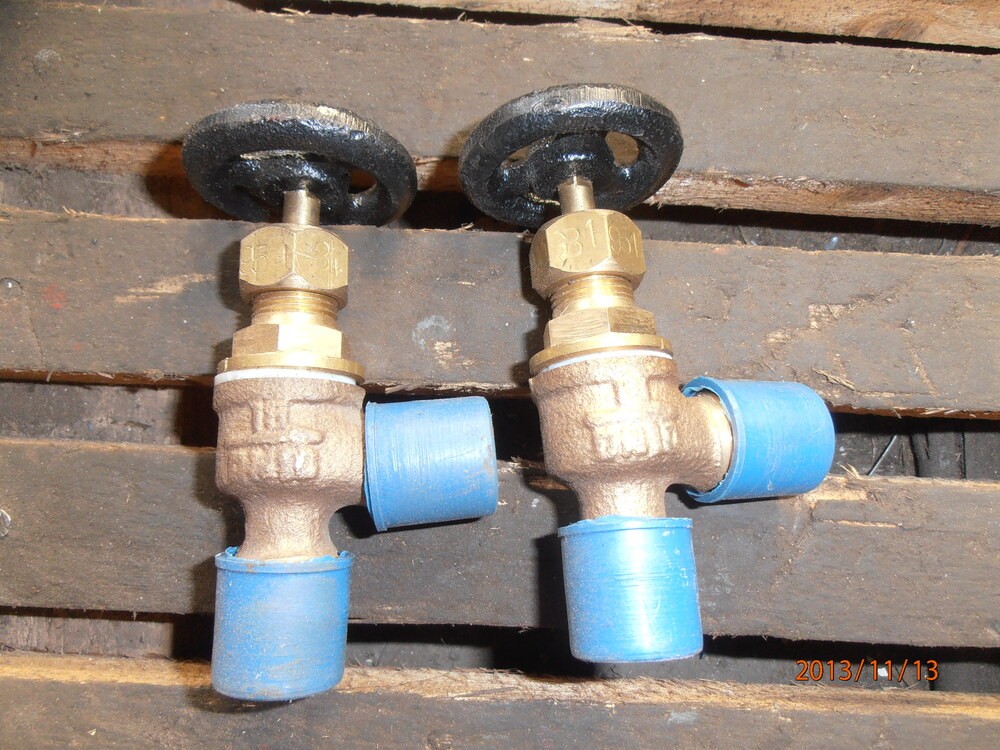

Marine Low Pressure Bronze Male Threaded Stop Valve GB/T1951-2008

Request a Quote Not what you need, please send your RFQs via Email.

Details

China Marine Low Pressure Bronze Male Threaded Stop Valve GB/T1951-2008:

Design Standard:GB/T1951-2008

Test Standard: GB/T600

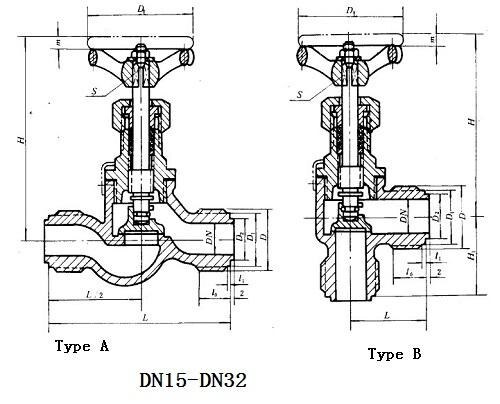

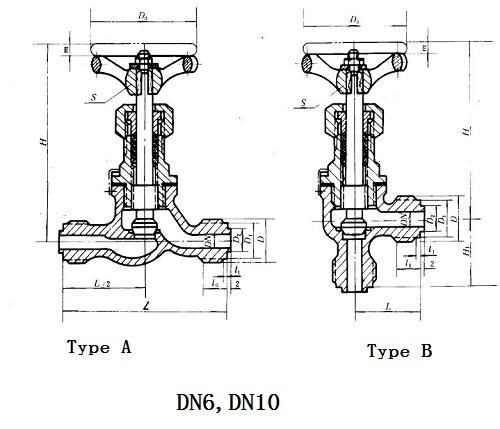

Type A-Straight type

Type B-Angle type

Test Pressure: Body---2.4Mpa, Seal---1.76Mpa

Nominal Pressure(Mpa) Nominal Diameter(mm) Applicable medium
1.6 6-32 sea water,fresh water, fuel oil,lubrication oil and steam not over 250℃

Main Parts & Material:

Body-Bronze

Bonnet-Bronze

Disc-Bronze

Stem-Bronze

Main Size List(mm):

DN
(mm)
Structure Dimension thread joint hand wheel lift range m≈ Weight(kg)
L H≈ H1
A B A B B D D1 D2 L0 L1 D0 S1 A B
6 78 34 90 77 32 M18×1.5 15.8 9 13 2 50 6 5 0.34 0.28
10 80 34 90 78 32 M22×1.5 19.8 3 14 2 50 6 5 0.40 0.32
15 95 46 100 91 40 M30×2 27 19 19 3 50 6 5 0.60 0.53
20 110 49 112 100 44 M36×2 33 24 19 3 65 7 6 0.98 0.96
25 125 53 128 113 48 M42×2 39 29 20 3 80 8 8 1.38 1.33
32 145 58 136 121 56 M48×2 45 36 20 3 80 8 9 1.60 0.55
