Marine Offshore Personal Transfer Basket
- Category:Personal Transfer Basket
- Material:PP rope etc
- Certificate:ABS,CCS can be apply.
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
China Marine Offshore Personal Transfer Basket:

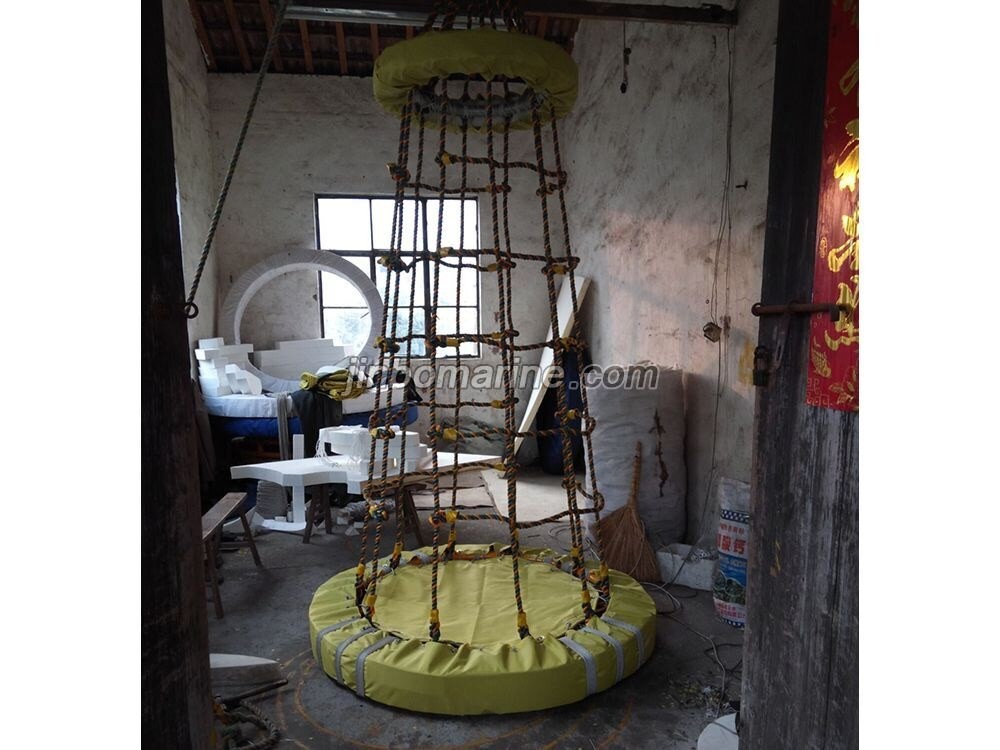

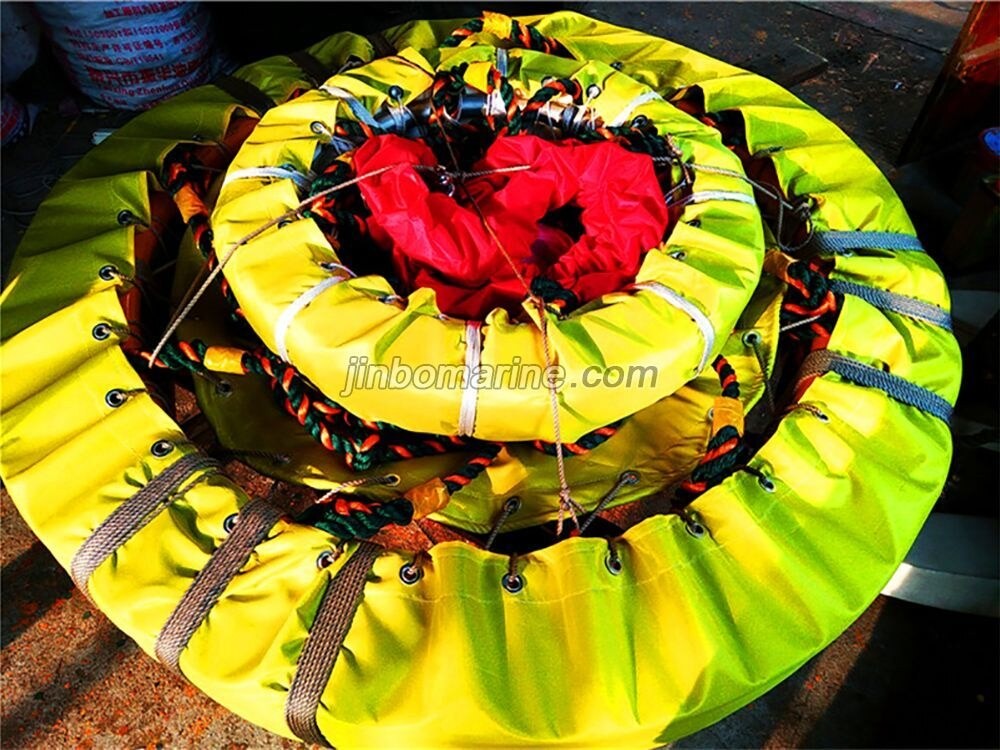

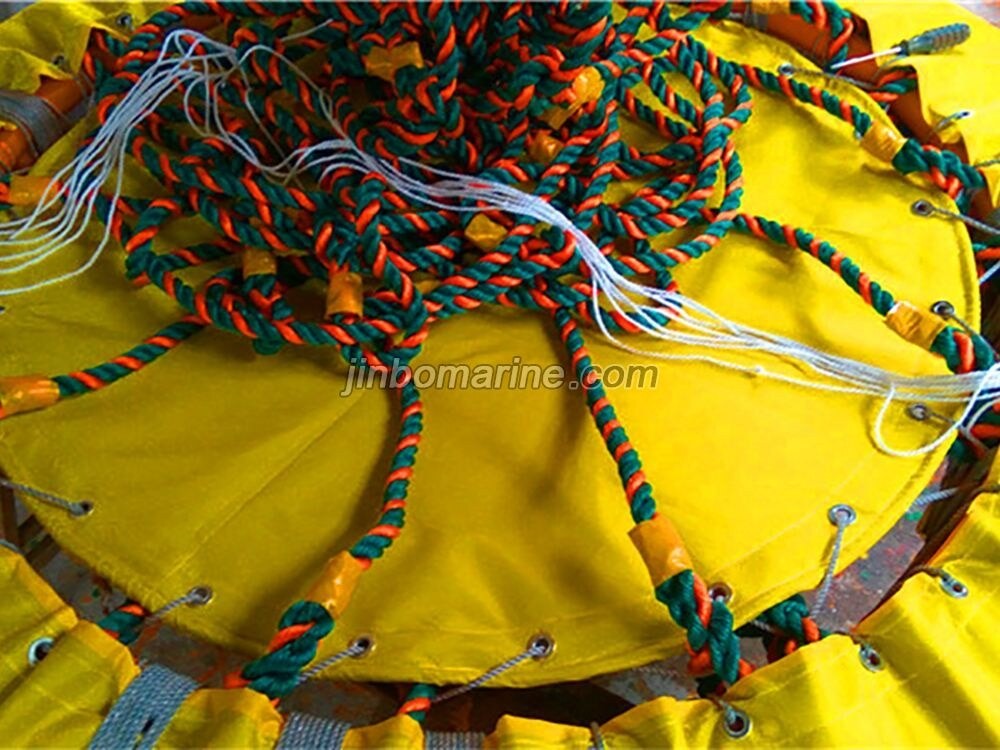

Marine Offshore Personal Transfer Basket
Our transfer baskets are simple equipments for carrying people and supplies,especially suitable for all kinds of vessel work platform.
And they are composed of top ring,middle ring,sling,rope net,foamed plastic liner,under pan and stabilizing device.
Specification:
Horizontal type(model HY).

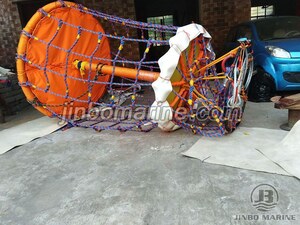

Vertical type(model HYL) .
| Model | Total height | Board diameter | Capacity | SWL | Weight | Volume |
| (mm) | (mm) | (Persons) | (kg) | (kg) | (m3) | |

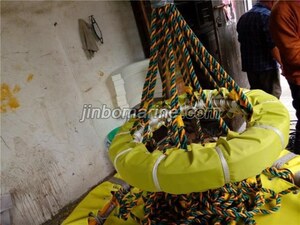

| HY-4 | 6320 | 1420 | 4 | 380 | 70 | 0.45 |
| HY-6 | 10050 | 1600 | 6 | 570 | 95 | 0.65 |
| HY-8 | 10050 | 1860 | 8 | 760 | 100 | 0.75 |
| HY-10 | 10050 | 1860 | 10 | 950 | 150 | 0.8 |
| HY-18 | 10050 | 2500 | 18 | 1700 | 150 | 1.6 |
| HYL-4 | 6320 | 1420 | 4 | 380 | 250 | 5.5 |
| HYL-6 | 6320 | 1550 | 6 | 570 | 270 | 6 |
| HYL-8 | 6320 | 1600 | 8 | 760 | 280 | 6.5 |
| HYL-10 | 6320 | 1640 | 10 | 950 | 290 | 7 |
| HYL-12 | 6320 | 1950 | 12 | 1140 | 380 | 11 |
