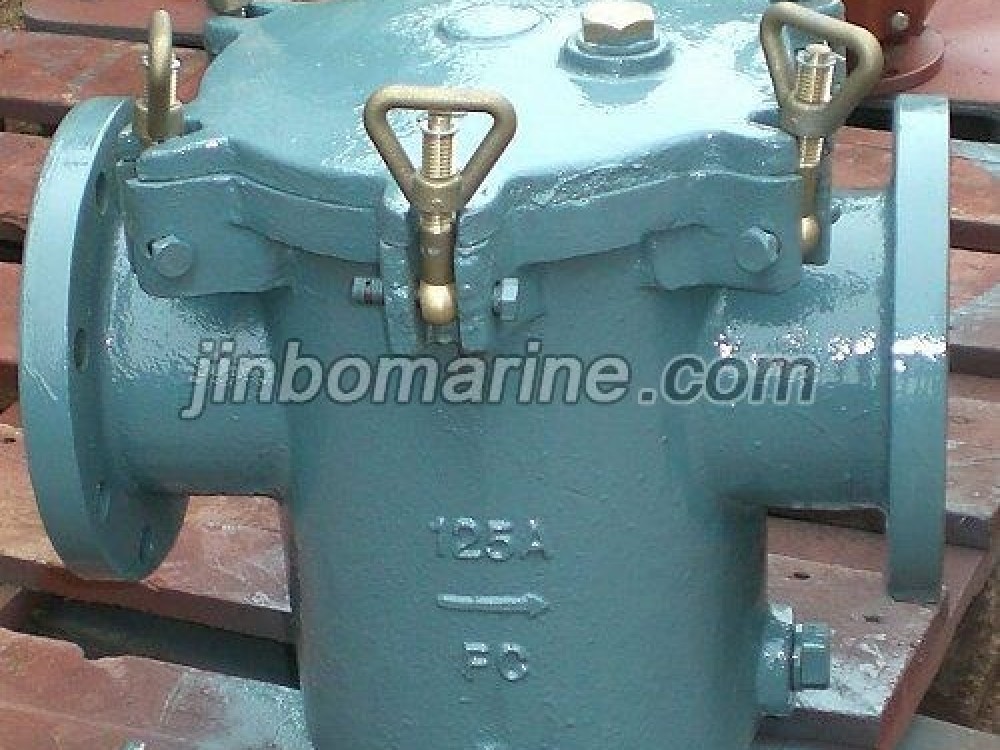

Marine Sea Water Strainer JIS F7121 S Type (DN125-DN400)

Request a Quote Not what you need, please send your RFQs via Email.

Details

China Marine Sea Water Strainer JIS F7121 S Type (DN125-DN400):

Marine Sea Water Strainer JIS F7121 also can be called as marine can water filter(strainer) or marine basket water filer(strainer).

Design Standard: JIS F7121-1996

Test Standard: JIS 7200-1996

Hydraulic Test Pressure: Body- 0.3Mpa

Flange size as per JIS B2220 - 5K/10K

Type: S, LA, LB

Main Material:

Body: Cast Iron (FC200)

Bonnet: Cast Iron (FC200)

Strainer: Stainless Steel (SUS304)

Gasket: non-asbestos

Yoke: FCD450

Air Vent Plug: Brass

Drain Plug: Brass

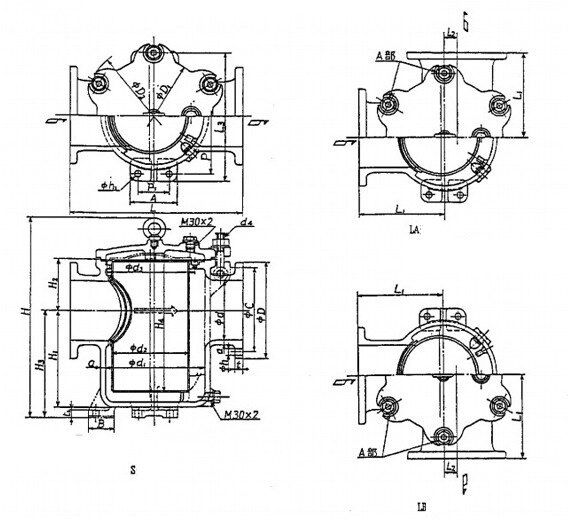

Main Size List(mm):

DN
d L L1 D C h t H
125 125 400 200 235 200 19 20 485
150 150 460 230 265 230 19 22 575
200 200 550 275 320 280 23 24 665
250 250 680 340 385 345 23 26 825
300 300 760 380 430 390 23 28 920
350 350 820 410 480 435 25 30 1030
400 400 880 440 540 495 25 30 1135
*The flange size in the list is according to 5K
