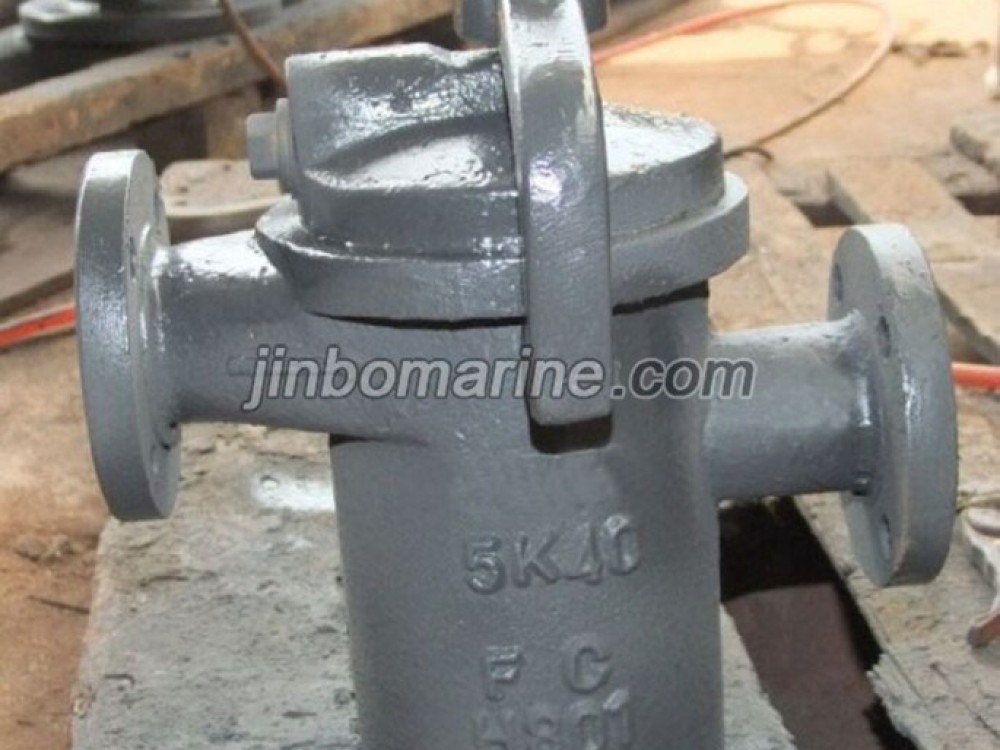

Marine Simplex Oil Strainer JIS F7209

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

China Marine Simplex Oil Strainer JIS F7209:

Design Standard: JIS F7209-1996

Test Standard: JIS F7200-1996

Test Pressure: Body-0.74Mpa

Flange size as per JIS B2220-5K or 10K

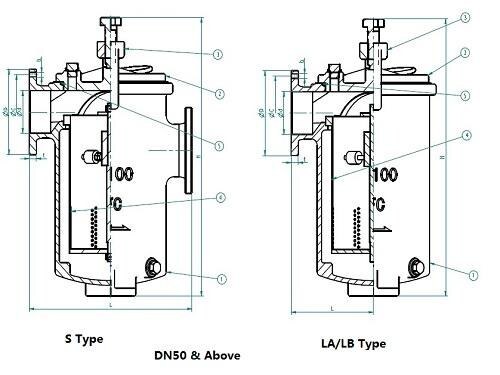

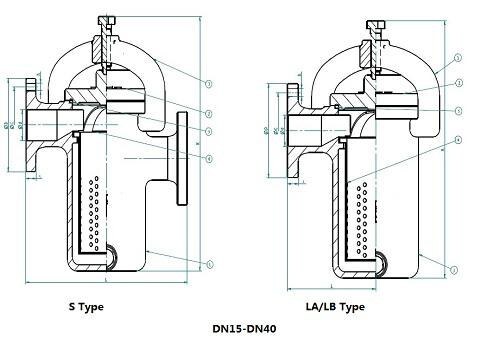

*JIS F7209 has three types, S type, LA type & LB type.

DN size can be from DN15 to DN400

Main Material:

Body:Cast Iron (FC200)

Bonnet:Cast Iron (FC200)

Yoke:Nodular Cast Iron (FCD450)

Strainer:Carbon Steel (SS400) or Stainless Steel (SUS304 or SUS316)

Plug:Brass

O-Ring: NBR

Main Size List(mm):

DN
d L L (LA/LB) D C No of Bolt Hole h t H
5K20 25 190 85 65 4 12 14 240
5K25 25 190 95 95 75 4 12 14 240
10K25 25 190 95 125 90 4 19 16 240
5K32 32 260 130 115 90 4 15 18 328
10K32 32 260 130 135 100 4 19 20 328
5K40 40 260 130 120 95 4 15 16 328
10K40 40 260 130 140 105 4 19 20 328
5K50 50 280 140 130 105 4 15 16 405
10K50 50 280 140 155 120 4 19 20 405
5K65 65 340 170 155 130 4 15 18 495
10K65 65 340 170 175 140 4 19 22 495
5K80 80 370 185 180 145 4 19 18 525
10K80 80 370 185 185 150 8 19 22 525
5K100 100 420 210 200 165 8 19 20 651
10K100 100 420 210 210 175 8 19 24 651
