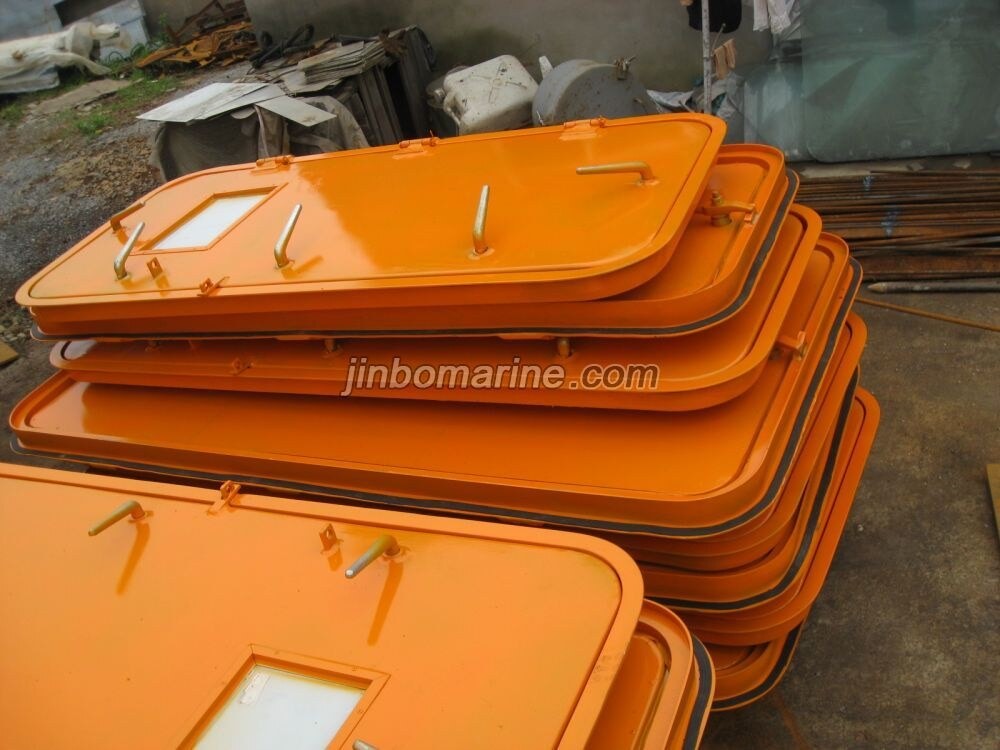

Marine Single-Leaf Aluminum Weathertight Door
PDF Datasheet
We can supply according to your requirement.

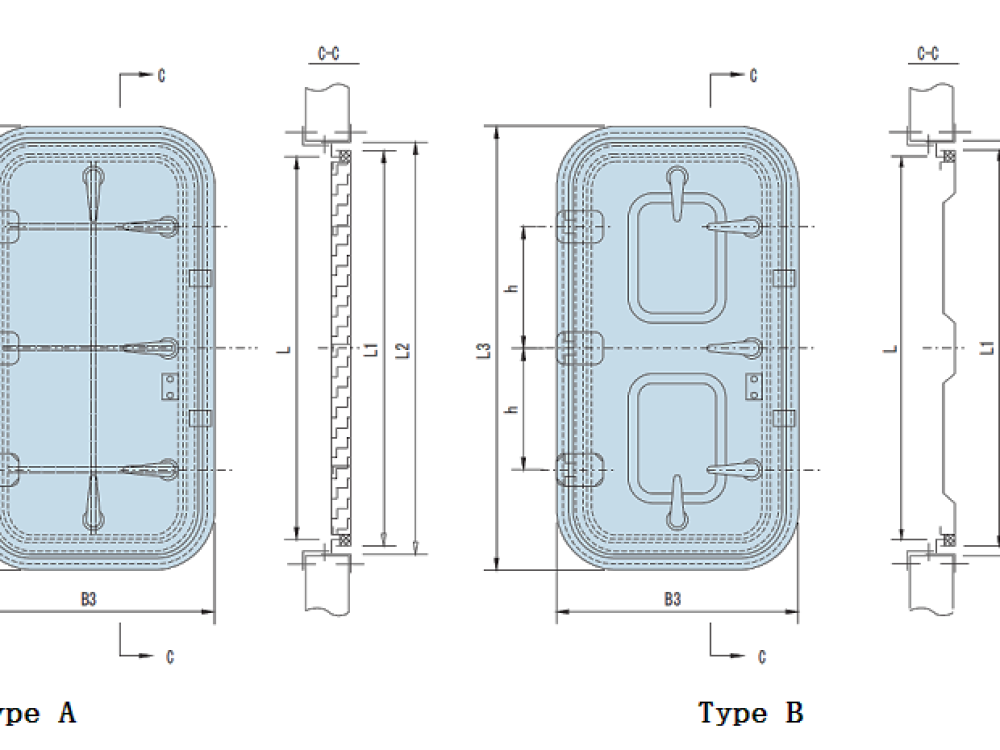

Marine Single-Leaf Aluminum Weathertight Door Drawing
China Marine Single-Leaf Aluminum Weathertight Door:
Standard: CB/T454-97
The aluminum weathertight door is used as the doorway of superstructure above freeboard deck or deck house. Operated by dog clips.
Type A-Framed Aluminum weathertight door
Type B-Molded Aluminum weathertight door
Material: Aluminum Alloy LF5
Main Size List(mm):
| Size of Doorway | Size of Door | Opening Size of Wall | h | Qty of clip |
| BXLXR | B1XL1XR1 | B2XL2XR2 | ||
| 500X1000X100 | 540X1040X120 | 580X1080X140 | 300 | 4 |
| 500x1200x100 | 540X1240X120 | 580X1280X140 | 400 | 5 |
| 500x1400x100 | 540X1440X120 | 580X1480X140 | 500 | 5 |
| 600X1200X100 | 640X1240X120 | 680X1280X140 | 400 | 5 |
| 600X1400X100 | 640X1440X120 | 680X1480X140 | 500 | 5 |
| 650X1600X100 | 690X1640X120 | 730X1680X140 | 600 | 5 |
