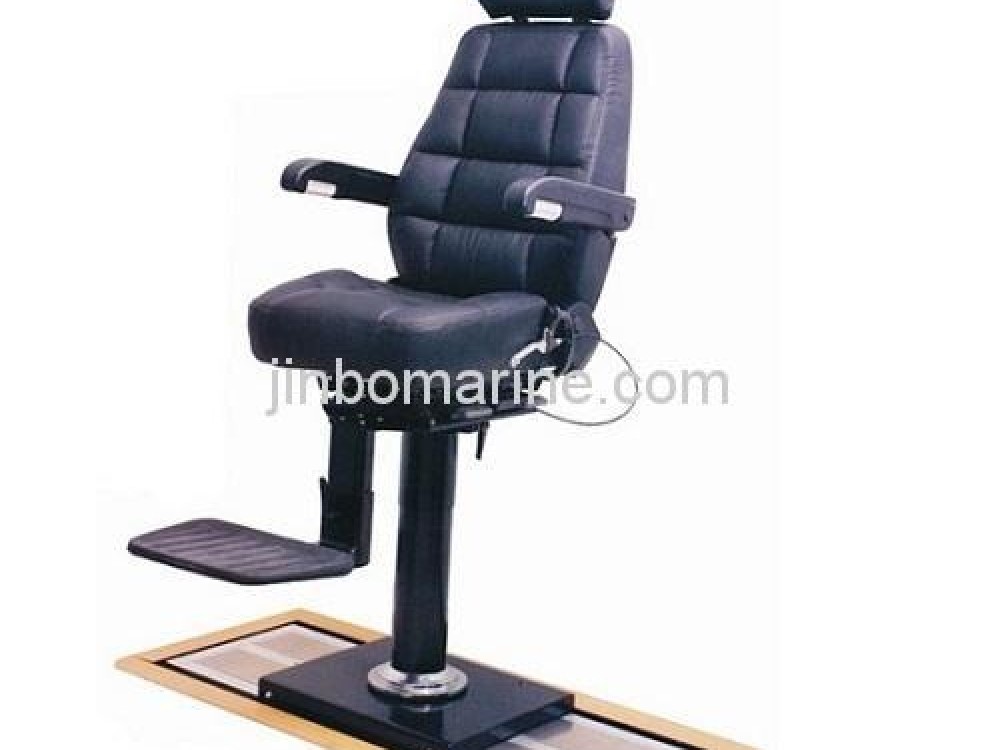

Marine Steel Pilot Chair with Rail TR-003

Request a Quote Not what you need, please send your RFQs via Email.

Details

China Marine Steel Pilot Chair with Rail TR-003:

Marine Steel Pilot Chair with Rail Model No. TR-003

Features:

1. Round steel pillar pedestal with air operated lifting system

2. Wire control guide rail type

3. Meet the ergonomics design

4. Seat movable on the strong slide way

5. Adjustable backrest and headrest

6. Seat height can be adjusted for angle

7. Movable seat forward and back

8. Foldable/angle adjustable comfort armrests

9. Swivel-mechanism 360,Multi-point positioning

10. Height adjustable/foldable footrest

11. Strong lifting column/Saltwater resistant/shock absorber in column

Material:

1. The slide guide rail and positioning base:steel. The Mosaic Bevel edge decorative: stainless steel material;

2. Mobile base, lifting columns: the steel and Stainless steel products .

3. Seat lifting tilted, and moved back and forth, back of a chair Angle adjustment :The steel structure;

4. The seat back and seat cushion :steel inner core and PU cold foaming sponge synthesis, covered by leather or cloth art;

5. Foot pedals :the steel inner core and Environmental rubber products synthesis;

6. Air pressure lifting core components and Gas Spring : German import Stabilus;

7. The chair face material is black high quality PU imitation leather, can also be

Customized True Leather or fabric. Chair face shape and color Can be customized according to customer requirements;

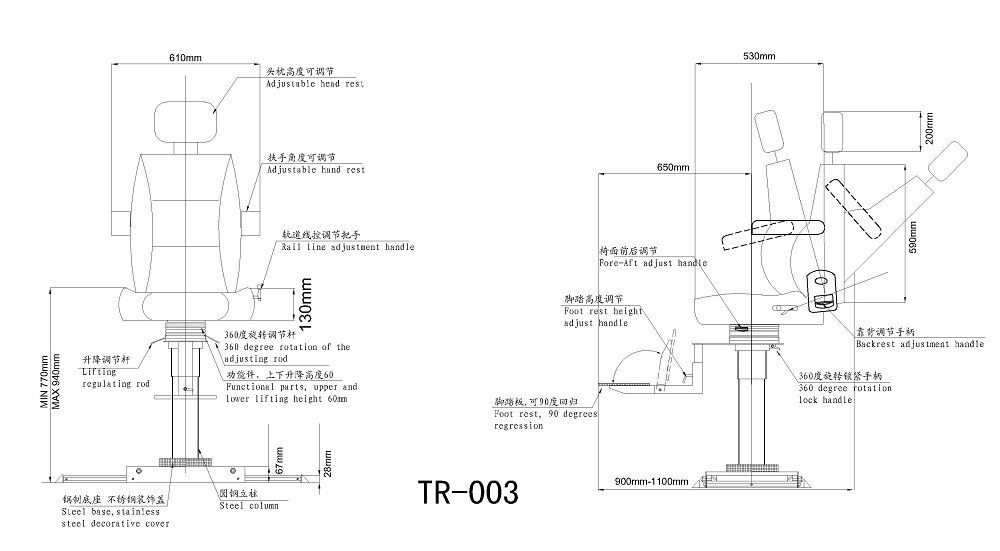

Function data:

1.Upper part of the seat can be moved back and forth of 120mm,height adjustment 60mm,seat inclination angle range of±12°;

2. Seat backrest with adjustable angle of 85°-150°,the headrest adjusted up and down50mm,handrest multi-point positioning control;

3. The seat of pneumatic lifting regulating range0-150mm;

4.The seat can rotate360°and locked ,4-point positioningcontrol;

5.Seat rail slide in0-6000mmmobile,500mmrail width and depth28mm

6. Seat pedal can rotate90°and regression, upper and lower position adjusting range of 0-50mm;

7.Seat can bear more than150FT.LBtorsion, reached AD grade standard;

Standard Slide-style driving seat track length is 1.2 m, if need to lengthen, Can be customized according to customer requirements;
