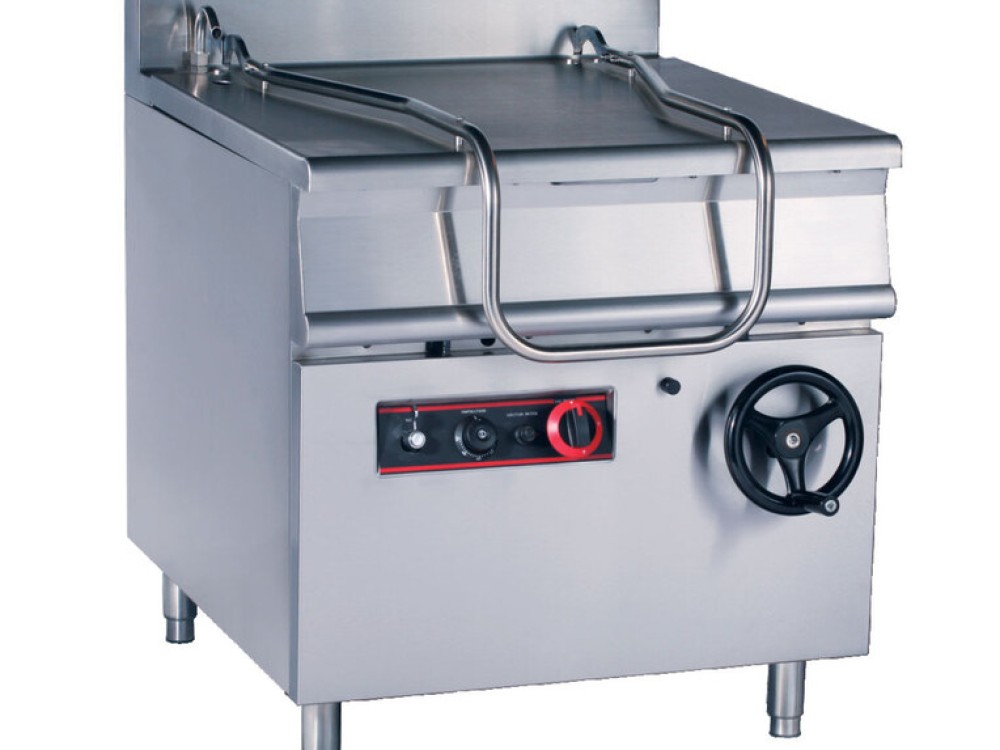

Marine tilting type electric frying pans
- Category:Electric Heater
- Material:Stainless steel
- Packing Details:Standard Export Packaging
- Delivery Time:15-20days
- Supply Ability:10 sets/month
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
Product Description
All stainless steel structure
Bottom of the rounded design, convenient and clean
According to need to choose the hand wheel or electric transmission pans
Hand wheel using turbine screw drive pan
Electrodynamic imported lifting system is tilting pan
Take pot body inadequate protection
Bottom of the pot temperature is controlled by the thermostat
Equipped with stainless steel adjustable feet, convenient installation on the ship
Technical Data
| Model | DQG-9 | DQG-10 | DQG-12 |
DQG-9D motor-driven |
DQG-12D motor-driven |
| Capacity(L) | 40 | 60 | 80 | 40 | 60 |
| Electric system | 380V/415V-3PH-50Hz 440V/480V-3PH-60HZ | ||||
| power(KW) | 9 | 10.5 | 12 | 9 | 12 |
| Boundary dimension(mm) | 700*700*850 | 800*800*850 | 800*900*850 | 700*700*850 | 800*850*850 |
| Weight (kg) | 120 | 140 | 150 | 90 | 123 |
