China ME Type Rubber Fender:

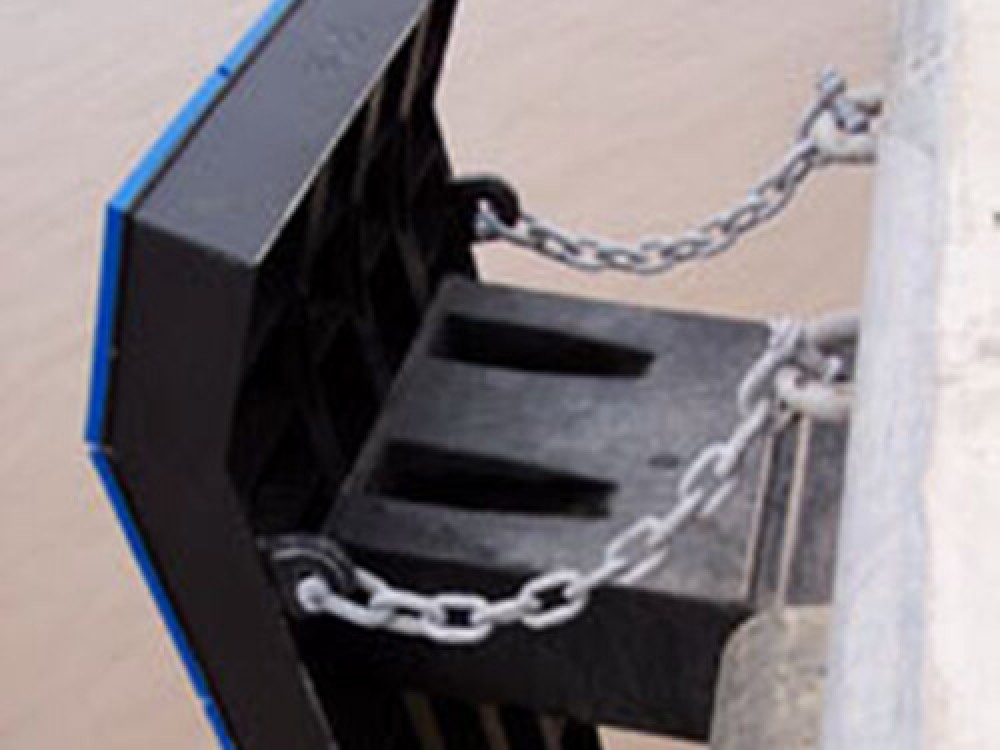

It is mainly mounted to a dock or a vessel to counteract the collision force between the dock and vessel when mooring and berthing.

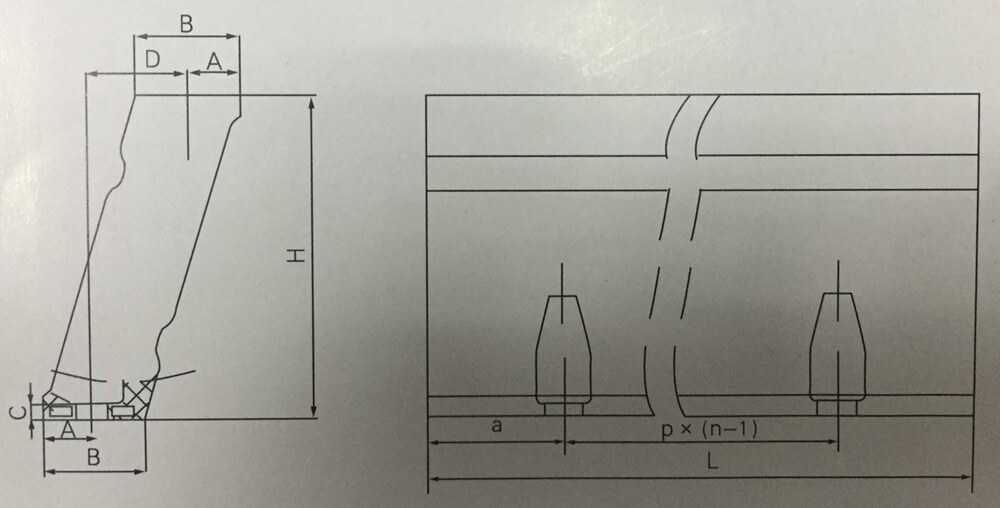

Specification:
| Type | Main Specification(mm) | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| H | A | B | C | D | L | a | p | n | Md | |
| ME300 | 300 | 47 | 94 | 15 | 94 | 2000 | 250 | 500 | 4 | M20 |
| ME400 | 400 | 63 | 125 | 17 | 124 | 2000 | 250 | 500 | 4 | M24 |
| ME500 | 500 | 87 | 158 | 20 | 142 | 2000 | 250 | 500 | 4 | M30 |
| ME550 | 550 | 87 | 172 | 20 | 170 | 2000 | 250 | 500 | 4 | M30 |
| ME600 | 600 | 87 | 188 | 20 | 199 | 2000 | 250 | 500 | 4 | M30 |
| ME750 | 750 | 118 | 235 | 26 | 230 | 2000 | 250 | 500 | 4 | M36 |
| ME800 | 800 | 129 | 250 | 26 | 240 | 2000 | 250 | 500 | 4 | M36 |
| ME1000 | 1000 | 162 | 322 | 31 | 310 | 2000 | 250 | 500 | 4 | M42 |
| ME1250 | 1250 | 202 | 401 | 36 | 388 | 2000 | 250 | 500 | 4 | M48 |
| ME1450 | 1450 | 228 | 454 | 41 | 454 | 2000 | 250 | 500 | 4 | M48 |
| ME1600 | 1600 | 257 | 500 | 50 | 480 | 2000 | 250 | 500 | 4 | M56 |
