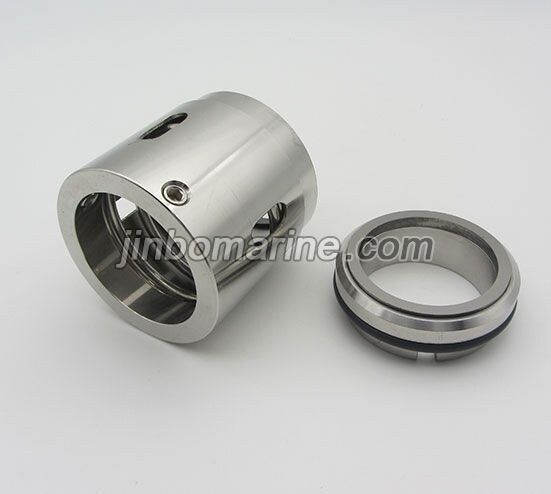

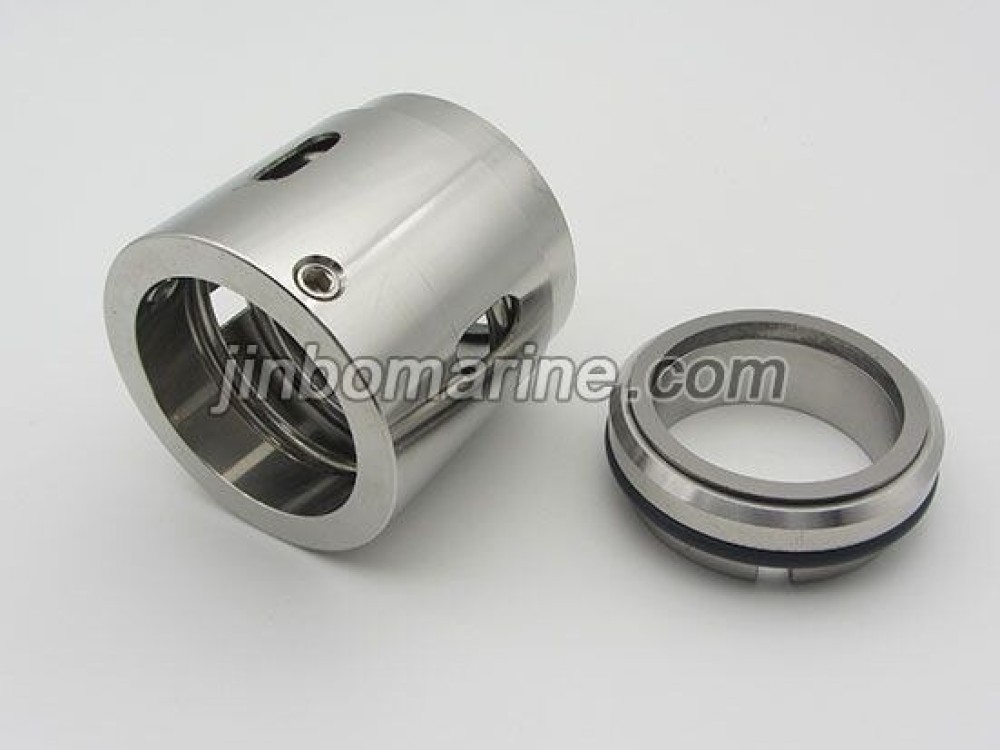

China Mechanical seals for marine pump 100CY-45:

Single face/non-balance/transmission sleeve/arbitrary rotation
The series are widely used large spring typical mechanical seals, allowing a variety of materials and end face combinations to meet a wide range of industrial needs.
The scope of work
Sealing medium: water, oil, organic solution medium corrosive liquid and medium containing solid particles
Seal chamber pressure: ≤ 1.0mpa
Speed: 3000 r/min or less
Linear velocity: ≤20m/Sec
Seal chamber temperature: 0℃ ~ +180℃ (fluorinated rubber) -20℃ ~ +90℃ (nitrile butadiene rubber)
-30℃ ~ +120℃ (ethylene propylene rubber) -40℃ ~ +230℃ (polytetrafluoroethylene)
-40℃ ~ +230℃ (teflon coated rubber)
