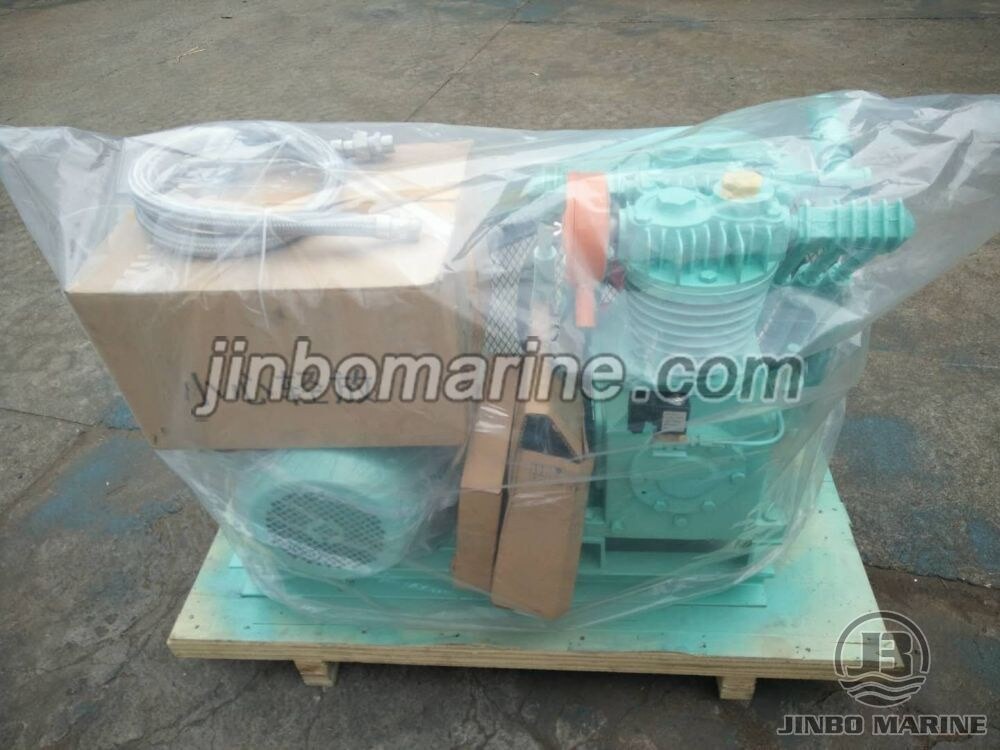

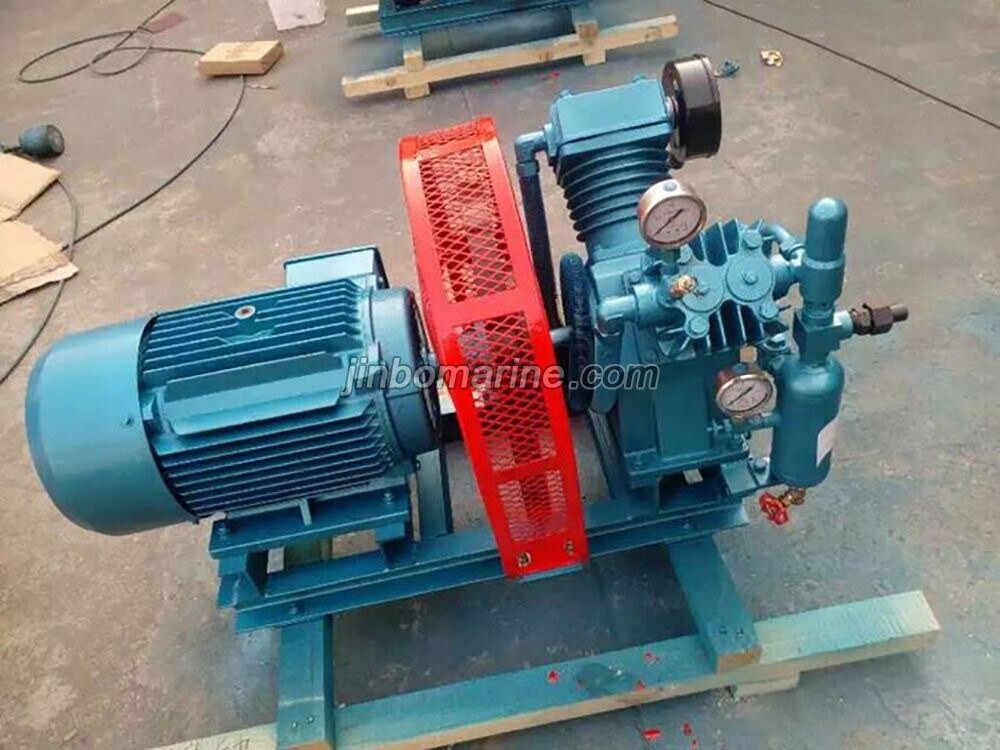

Medium Pressure 3.0MPa Air Cooling Marine Air Compressor CZF-20.4/3-C
- Category:Medium Pressure Air Cooled Marine Air Compressor
- Certificate:CCS certificate.
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
China Medium Pressure 3.0MPa Air Cooling Marine Air Compressor CZF-20.4/3-C:
It is mainly used for marine diesel engine with reliable starting performance, stable quality and national standard product. It can also be used in low pressure vessels,instrument testing.
It is suitable for air bottle equal or smaller than 0.32 m3.
Double row,Air cooling,Second stage compression,Piston type.
Four types: Belt units, Direct-linked unit, Vertical unit, Gas tank unit.
Motor parameters
Type: Y132S-4-H
Power consumption: 5.5 KW
Rotation speed: 1440 r/min
Protection class: IP44
Insulation class：F
Voltage/Frequency: AC380V/50HZ,AC440V/60HZ,220V/50HZ
Manufacture quality
1.The equipment is manufactured, assembled and tested according to the design drawings and technical documents.
2.The manufacturer shall ensure the manufacture quality.
Specification
| Model | Type | Displacement capacity | Rated pressure | Rotate speed | Motor power | Weight | Overall size | |
| m3/h | m3/min | Mpa | r/min | KW | kg | mm | ||
| CZF-20.4/3-C |
Double row Vertical type Air cooling Second stage compression Piston type |
20.4 | 0.34 | 3 | 600 | 5.5 | 210 |
940x500x830 belt type 1300x680x800 direct connect type 500x510x1290 Vertical type |
