MFEX22-10 Marine Deep Frying Pan With Fire Extinguishing System

Request a Quote Not what you need, please send your RFQs via Email.

Details

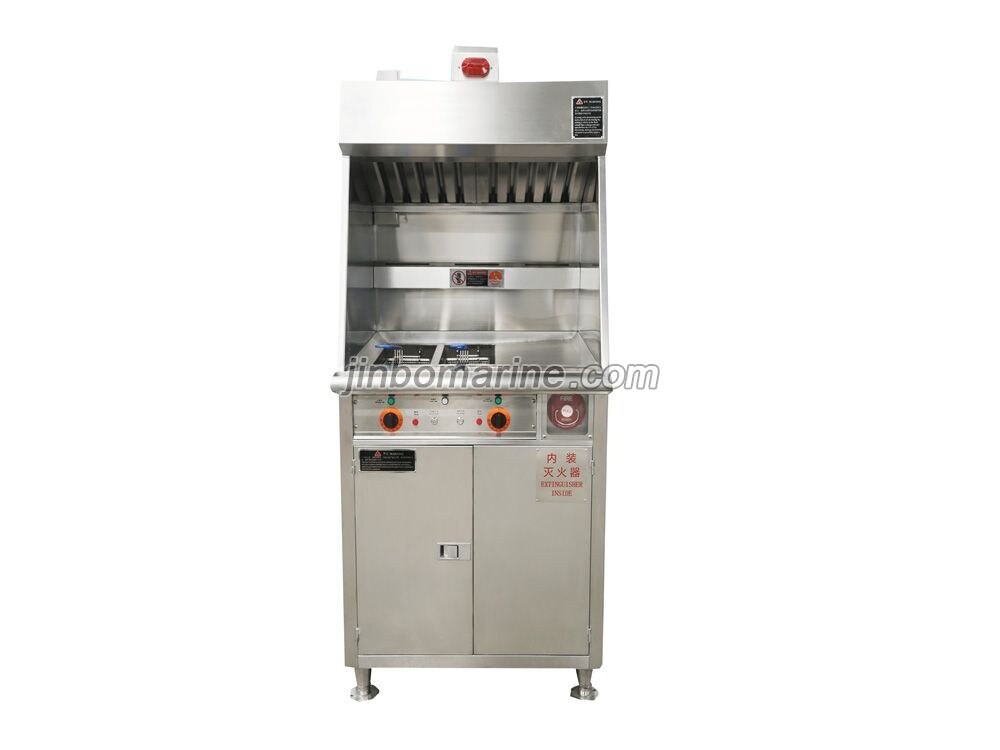

MFEX22-10 Marine Deep Frying Pan With Fire Extinguishing System

1. All stainless steel structure
2 Automatic detection, fire extinguishing, alarm and automatic power-off device
3. Manual emergency start fire extinguishing device
4. Control the normally closed open contact of the external alarm or control the power output
5. Working thermostat, protection temperature limiter failure alarm function
6. Oil pan drain valve with oil storage barrel
7 Anti-wave handrails
8. Power distribution stainless steel adjustable feet for easy installation on board

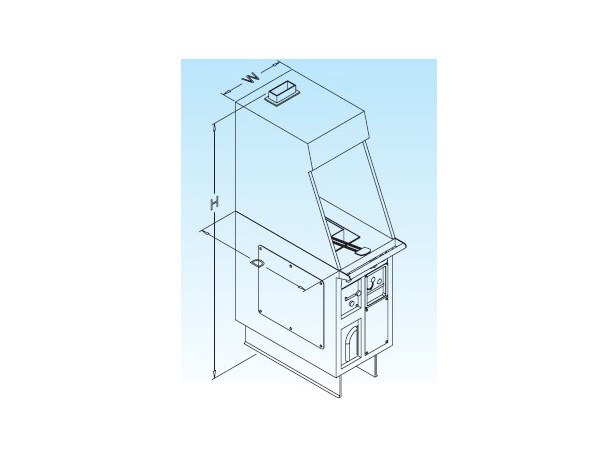

MFEX22-10 Marine Deep Frying Pan With Fire Extinguishing System Drawing

MFEX22-10 Marine Deep Frying Pan With Fire Extinguishing System Parameters

Model MFEX22-10 MFEX22-D20 Ansul-R102-10 Ansul-R102-20
Volume(L) 10 20 10 20
Voltage 380/415V-3PH-50Hz 440/480v 3ph-60Hz
Power(kw) 7.1/9 14.2/9 7 14
Size(mm) 500x800x1750 650x800x1750 480x820x1800 780x820x1800
Weight(kg) 105 130 124 158
