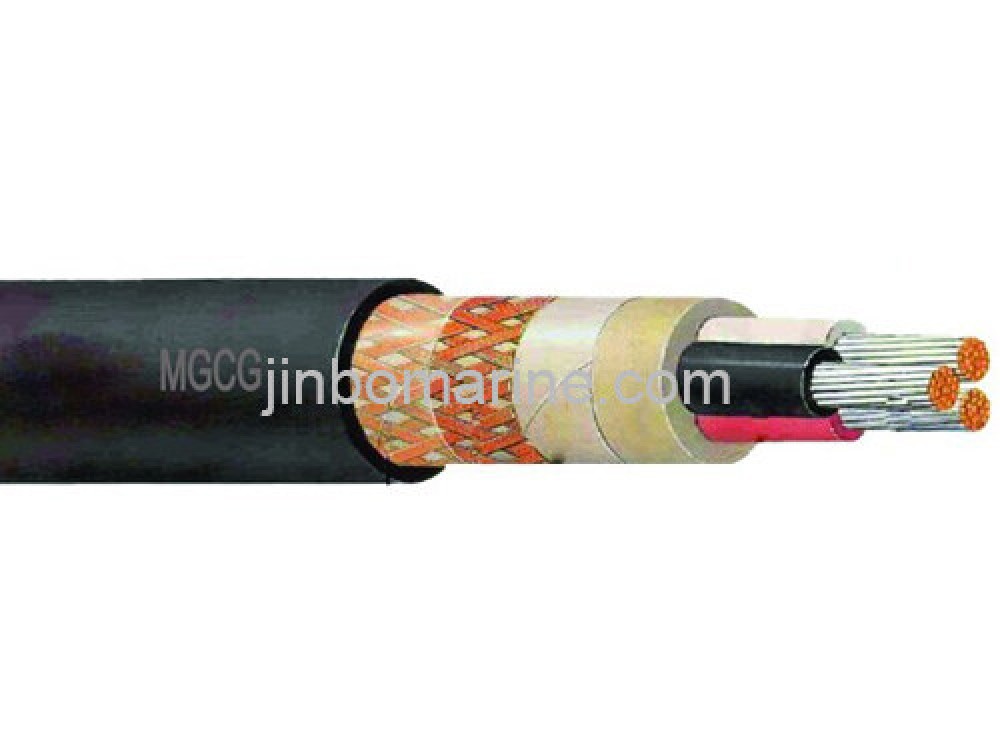

MGCG Ship Power & Lighting Cable

Request a Quote Not what you need, please send your RFQs via Email.

Details

Cable Constructure

CONDUCTOR : stranded, annealed copper wire. IEC 60228 Class 2 (Class 5 and/or tinned on request)

INSULATION : EPR.

BEDDING : Tape

SCREEN : Electrolytic copper braided screen ( 90% coverage ). MGCG (EMC) type is wrapped by a copper tape in addition to this braided screen. (100% coverage)

OUTER SHEATH : Chloroprene based flame retardant and oil resistant black outer jacket.

Standards

CONSTRUCTION : DIN 89158, IEC 60092/353

MATERIAL : IEC 60092 /350-351-359

FLAME RETARDATION : IEC 60332 /1, IEC 60332 / 3 Cat A

SHIELDING EFFECTIVENES (for EMC type) : DIN EN 50147-1

RATED VOLTAGE : 0,6/1 kV

TEST VOLTAGE : 3,5 kV

Cores & Size

Cores: 1, 2,3,4,5,7,10,12,14,16,19,24

Size (sqmm): 1.5, 2.5. 4, 6, 10, 16, 25, 35, 50, 70, 95, 120, 150, 180, 240, 300
