Mount Ship Rope Ladder

  • Category:Marine Ladder
  • Material:Wood or Aluminum
  • Standards:CB/T428-93,ISO5489-1986
  • Certificate:CCS, BV, ABS, GL, LR, DNV, NK,RINA
  • Fob Price:Get Latest Price Now
  • Place of Origin:China
Request a Quote Not what you need, please send your RFQs via Email.

Details

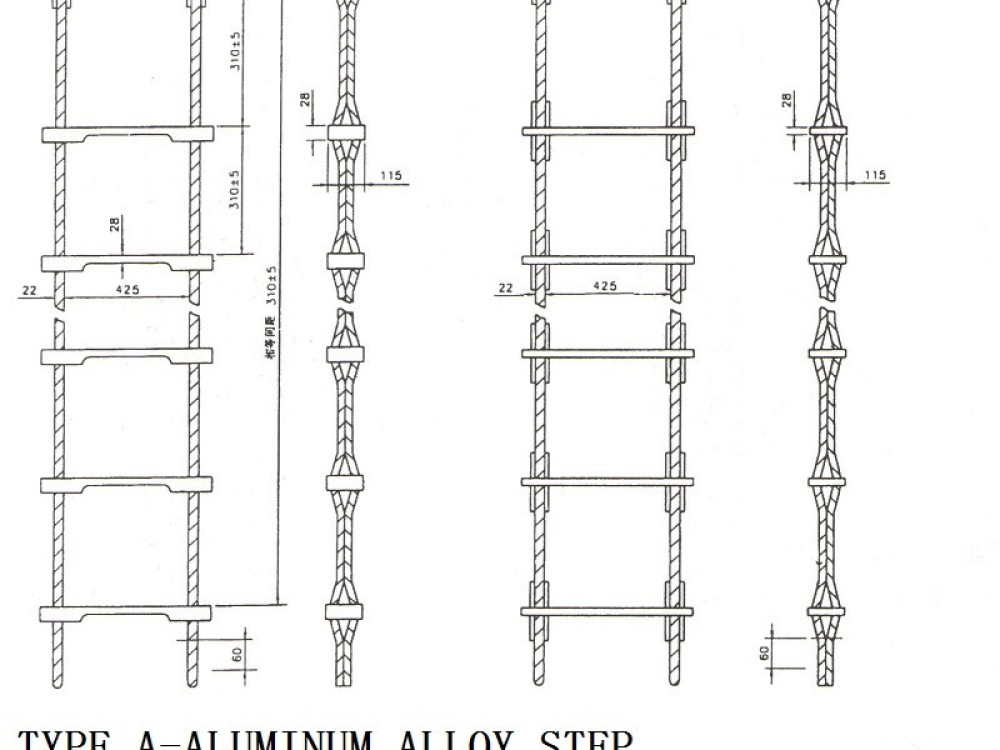

Mount Ship Rope Ladder Drawing

Mount Ship Rope Ladder Drawing

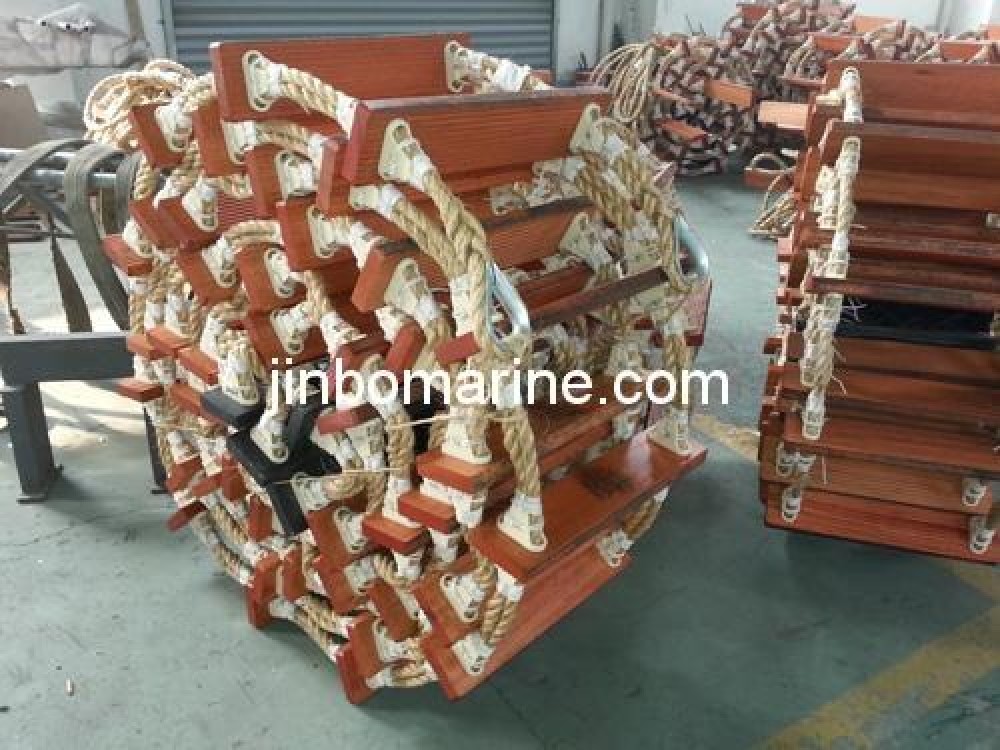

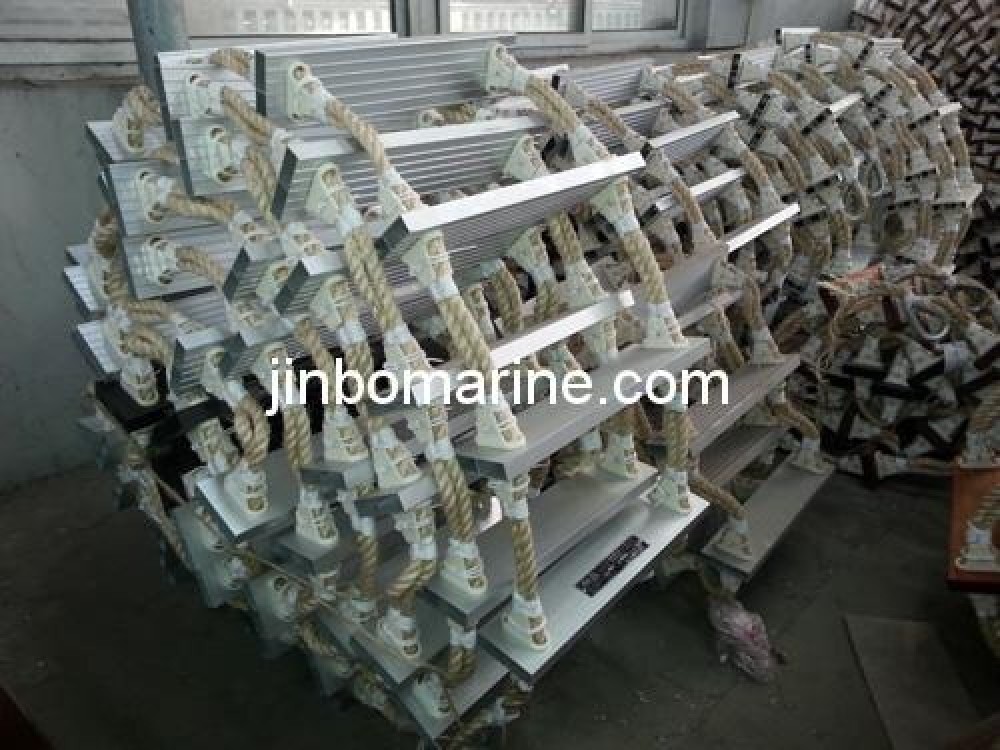

China Mount Ship Rope Ladder:

Mount Ship Rope Ladder also can be called as Embarkation Ladder.

Design & Manufacture Standard: CB/T428-93,ISO5489-1986

Embarkation Ladder is used to be a rope ladder for embarking lifeboats & rafts in emergency case. Also for crews to embark when anchoring. Light weight, sate, used widely for various ship.

Good Quality with DNV type approval certificate.

Main Material:

Rope: Manila Rope

Timble: plastick & Steel

Step:

Type Material Weight/pc
A Aluminum 0.95
B Wood 1.9
C Rubber 3.5

Main Size List(mm):

No of step Length of rope ladder (mm) Weight (kgs)
Aluminum Wood
10 3100 25.86 31.56
15 4650 33.47 43.92
20 6200 41.08 56.27
25 7750 48.69 68.64
30 9300 56.3 81
35 10850 63.91 93.36
40 12400 71.52 105.72
45 13950 79.13 118.08
50 15500 86.74 130.44
55 17000 94.35 142.86
60 18500 101.96 155.16
to add each 5 steps length increase 1500 weight increase 7.61 weight increase 12.36
Note: the length of a rope ladder is the maximum calculated value under the condition that a ship is heeling to an angle of 15°, and to be selected by the designer.
