MSD Series-Multi-stage Hydraulic Bolt Tensioner

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

China MSD Series-Multi-stage Hydraulic Bolt Tensioner:

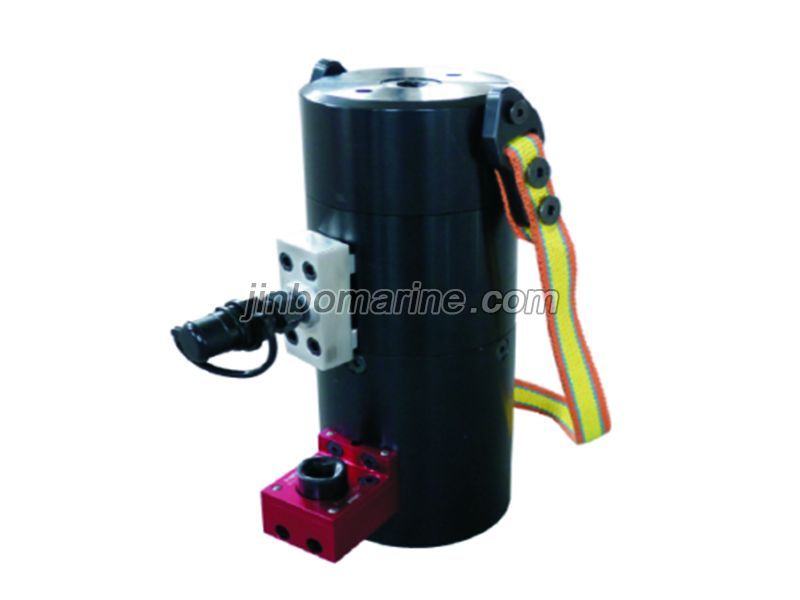

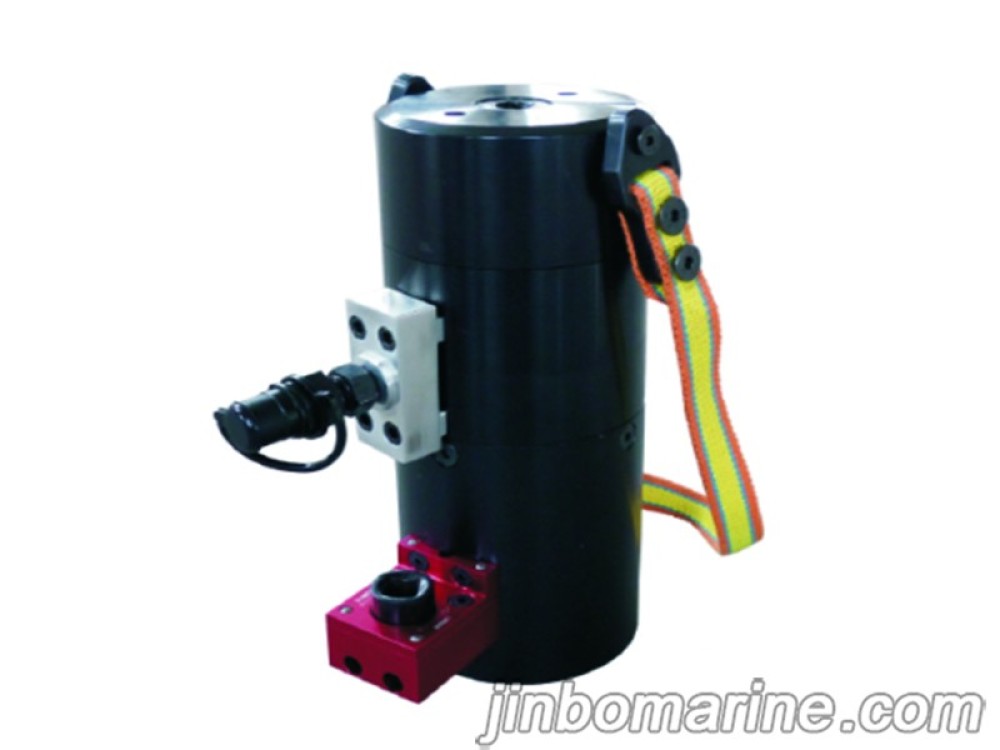

MSD Series-Multi-stage Hydraulic Bolt Tensioner

It is mainly used for 10.9 grade high-strength bolts.

Maximum service pressure: 150MPa.

The design of automatic quick return mechanism greatly reduces labor intensity.

Ultra red red warning line,three level safety protection to ensure operator safety.

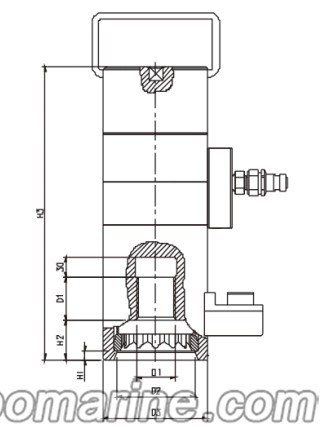

Model Thread
D1 		The Edge Of The Nut
S 		Tensile Force
KN 		D2
mm 		D3
mm 		H1
mm 		H2
mm 		H3
mm
MSD 20 M 20X2.5 30 200 44 59 6 19 182
MSD 24 M 24X3 36 290 51 65 8 24 188
MSD 27 M 27X3 41 380 56 73 10 25 192
MSD 30 M 30X3.5 46 460 62 79 12 27 198
MSD 33 M 33X3.5 50 570 67 84 14 29 240
MSD 36 M 36X4 55 670 72 90 16 32 248
MSD 39 M 39X4 60 800 78 98 18 34 253
MSD 42 M 42X4.5 65 920 84 107 20 37 256
MSD 45 M 45X4.5 70 1080 90 112 22 39 260
MSD 48 M 48X5 75 1220 95 123 24 42 268
MSD 52 M 52X5 80 1450 103 129 28 46 288
MSD 56 M 56X5.5 85 1680 107 136 31 49 328
MSD 60 M 60X5.5 90 2010 115 146 34 52 330
MSD 64 M 64X6 95 2210 121 155 37 55 346
MSD 68 M 68X6 100 2600 127 164 40 58 358
MSD 72 M 72X6 105 2880 131 177 44 62 378
MSD 76 M 76X6 110 3320 137 183 46 66 385
MSD 80 M 80X6 115 3610 143 203 50 68 414
MSD 90 M 90X6 130 4650 161 232 58 77 446
MSD 100 M 100X6 145 5830 179 252 66 85 487
