Navigation Sounder

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

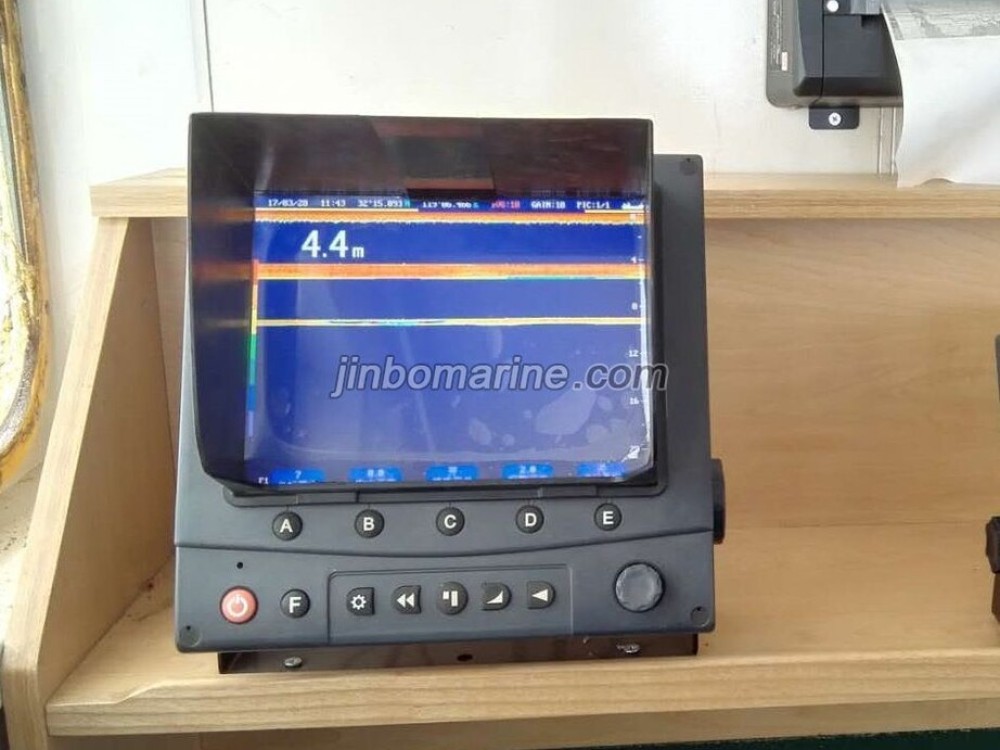

DS2008 Navigation Sounder

Specification

  • Graphical Display: 10inch color TFT LCD 640x480 pixels
  • AC adapter: AC220/110V
  • DC supply: DC24
  • Unit Weight: 3.7kgs
  • Dimension: 264x270x93mm(HxWxD)
  • Frequency: 200khz
  • Power output: 500w
  • Depth range: Smaller range scope:0-500m, larger range scope:0-800m
  • Accuracy: +/11.0% of range
  • Histroy storing: 24hours history data
  • Auto Range: yes
  • Draft Preset: 20m
  • Shallow Alarm: 10m
  • Power Alarm: Power lost alarm
  • Alarm Media: Buzze, Flashing
  • Time Scale: 30s interval time bar on LCD
  • Picture speed: 6steps plus freeze
  • Ping rate: Max 10 pings per second
  • Echo Color: 7 Colors
  • NMEA input: GPS position(GGA)
  • NMEA outpe: Depth(DPT)
  • Temperature: -10 -- 40 C(IEC60945)
  • Unit protection: IP23(IEC60529)
  • Funtion: Over voltage/Current, Polarity
  • Mounting: Desk/Ceiling/Flush mounting
  • Transducer: 600W 200khz 6c
  • Printer type: DPU-414
  • Printer interface: Serial Port
