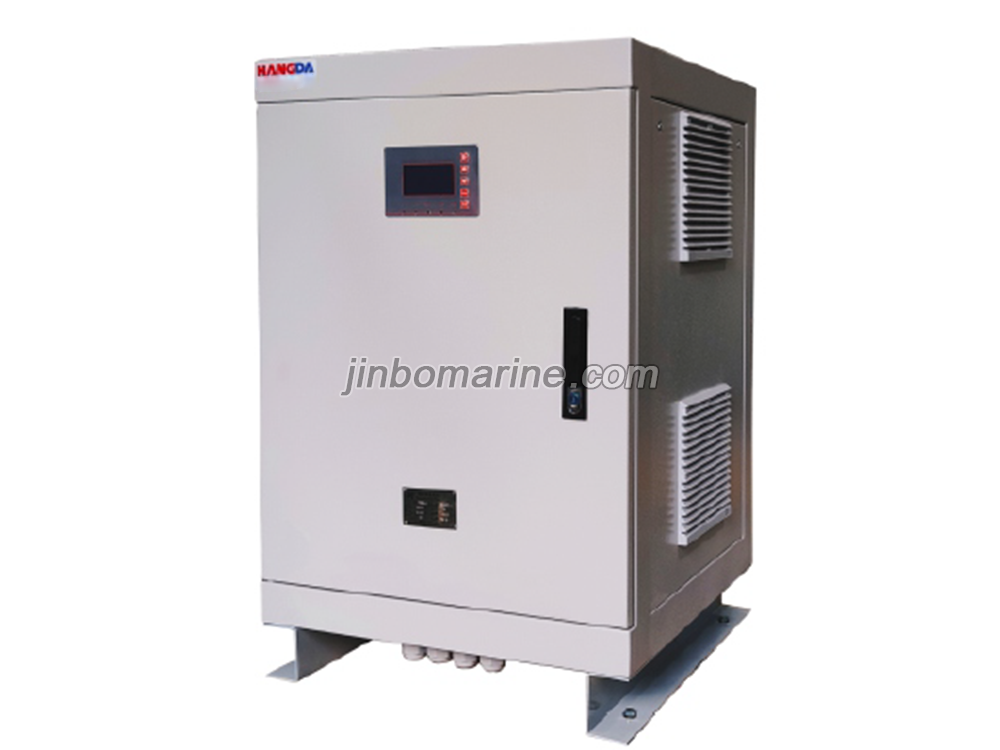

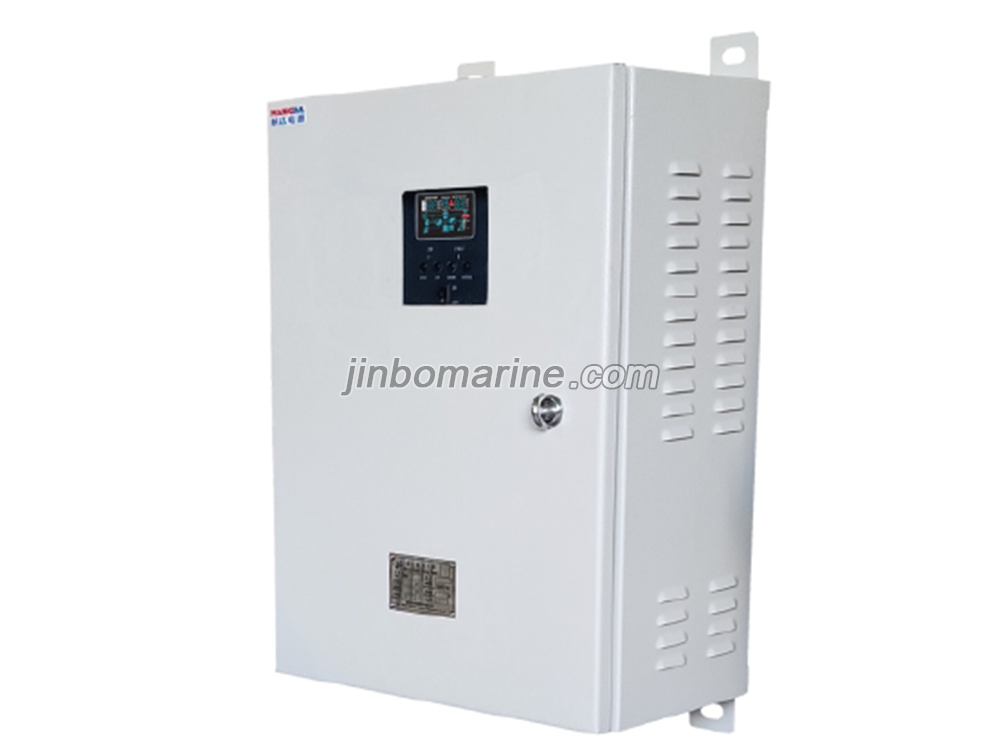

NBHD-502Ⅱ/24A-3 Marine Inverter Power Supply
- Category:Lifeboat And Rescue Boat Accessories
- Standards:IEC61000-4-2、IEC61000-4-3、IEC61000-4-4、IEC61000-4-5、IEC61000-4-6、IEC60092-101、IEC60068-2-11
- Certificate:CCS
- Fob Price:Get Latest Price Now
- Place of Origin:China
Details
Description:
NBHD-502Ⅱ/24A-3 Marine Inverter Power Supply. This series of products conform to the specifications and standards of electrical equipment in domestic and international ship industry.
1. With the help of microcomputer digital control technology, the control response speed is fast and the reliability is high.
2. Full range of protection functions: input under voltage, over-voltage protection, output overload, short circuit protection, over temperature protection.
3. It supports the function of remote switch on and off, which is convenient for remote control and management.
4. Intelligent cooling design: the fan automatically matches the speed with the load, effectively reduces the noise, and extends the service life of the fan.
5. The built-in inverter transformer design has strong impact resistance, which can effectively suppress high-frequency noise and ensure the reliable operation of the load.
6. Front maintenance design, testing and maintenance are more convenient.
7. This series of products can provide all elements customization of function, size and installation mode.
8. All series of marine inverters have been approved by China Classification Society.
Technical data:
| Model | 1KVA | 2KVA | 3KVA | 4KVA | 5KVA | 6KVA | 10KVA | 15KVA | |
| Capacity (KW) | 0.8 | 1.6 | 2.4 | 3.2 | 4 | 4.8 | 8 | 12 | |
| Input DC | Rated voltage | 12VDC/24VDC | 24VDC/484VDC | 96VDC | 220VDC | ||||
| Inverter output | Number of phase | Single-Phase | Single-Phase/Three-Phase | ||||||
| Rated voltage | 220VAC(110VAC Can be customized） | 220VAC/380VAC | |||||||
| Rated frequency | 50HZ/60HZ | ||||||||
| Output waveform | Pure sine wave | ||||||||
| Inverter efficiency | ≥85% | ||||||||
| Overload capacity |
105%＜load＜120%（10S
Turn off output） 120%＜load＜150%（3S Turn off output） 150%＜load （1S Turn off output） |
||||||||
| Features | Protection |
Input under-voltage,
input over-current, inverter over-temperature, inverter overload, output short-circuit protection |
|||||||
| Remote boot | Support remote power on / off | ||||||||
| Dry contact | Inverter fault passive dry contact output | ||||||||
| Display |
LCD or digital display
of input voltage, output voltage, output power, fault status |
||||||||
| structure |
Box size (WxDxH)mm |
400x250x550 | 500x250x650 | 800x800x1600 | |||||
| Weight（kg) | 29 | 35 | 40 | 59 | 63 | 68 | 128 | 268 | |
| Installation method | Wall-mounted | Floor-standing | |||||||
| Protection class | IP22/IP23/(IP44Can be customized） | ||||||||
| Cabinet color | RAL7035(Can be customized） | ||||||||
| Environmental parameters | Operating ambient temperature | ‐0℃~+50℃ | |||||||
| Operating environment humidity | 0~95%（Non-condensing） | ||||||||
| Cooling method | Forced air cooling | ||||||||
| Standards and certifications | standard | CCS GD22-2015、GB/T14548-93、GB/T21225-2007 | |||||||
| Certification | CCS Type approval | ||||||||
