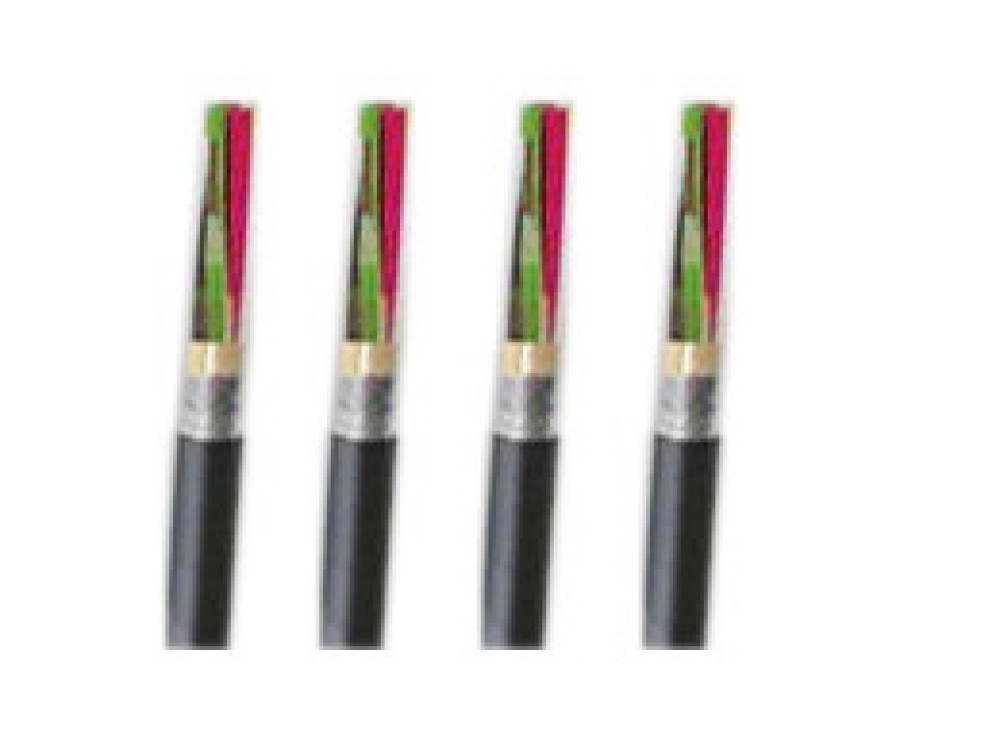

NEK 606 Water Blocked Offshore & Marine Cables Water Blocked P15 UX 0.6/1kV

Request a Quote Not what you need, please send your RFQs via Email.

Details

Applications

TheseP15 UX 0.6/1kVNEK606 Water Blocked Offshore Marinecables are partially water blocked, flame retardant, low smoke and halogen free, used for earthing and bonding services

Standards

IEC 60092-353 IEC 60092-359
IEC 60332-1 IEC 60332-3-22
IEC 60754-1,2 IEC 61034-1,2
NEK 606:2004 VG 95218 part 29?

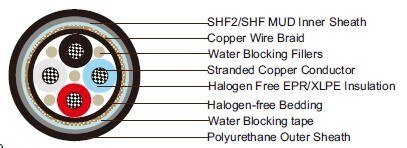

Construction

Conductors:Tinned annealed stranded copper to IEC 60228 class 2 or class 5.
Water Blocking Elements:Water blocking tape and strings for providing longitudinal water tightness.
Inner Sheath:Halogen free thermosetting compound, SHF2. When used as protective earth (PE) wire, the cables coloured yellow/green. When used as single wire, the cables coloured off-white, black, red or blue.

Outer Sheath:Polyurethane for providing transversal water tightness, PE is optional,but can not meet low smoke standard.

Electrical Characteristics

Nominal Cross Section Area mm2 10 16 25 35 50 70
Nominal Conductor Diameter mm 4 5.1 6.5 7.4 8.7 10.3
Maximum DC Resistant@20˚C O/km 1.84 1.16 0.734 0.529 0.391 0.27
Continuous Current Rating@45˚C1 Core A 72 96 127 157 196 242
Short Circuit Current 1s A 1430 2290 3580 5010 7150 10020
Operating Voltage KV 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1
Nominal Cross Section Area mm2 95 120 150 185 240 300
Nominal Conductor Diameter mm 12.2 13.8 15.1 17 19.6 21.9
Maximum DC Resistant@20˚C O/km 0.195 0.154 0.126 0.1 0.0762 0.0607
Continuous Current Rating@45˚C1 Core A 293 339 389 444 522 601
Short Circuit Current 1s A 13590 17170 21460 26470 34340 42930
Operating Voltage KV 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1

Mechanical and Thermal Properties

Bending Radius : 8×OD (during installation); 6×OD (fixed installed).

Temperature Range : -20˚C ~ +90˚C.

Dimensions and Weight

Nominal Cross Section Area mm2 10 16 25 35 50 70
Nominal Conductor Diameter mm 4 5.1 6.5 7.4 8.7 10.3
Maximum DC Resistant@20˚C O/km 1.84 1.16 0.734 0.529 0.391 0.27
Continuous Current Rating@45˚C1 Core A 72 96 127 157 196 242
Short Circuit Current 1s A 1430 2290 3580 5010 7150 10020
Operating Voltage KV 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1
Nominal Cross Section Area mm2 95 120 150 185 240 300
Nominal Conductor Diameter mm 12.2 13.8 15.1 17 19.6 21.9
Maximum DC Resistant@20˚C O/km 0.195 0.154 0.126 0.1 0.0762 0.0607
Continuous Current Rating@45˚C1 Core A 293 339 389 444 522 601
Short Circuit Current 1s A 13590 17170 21460 26470 34340 42930
Operating Voltage KV 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1
