Non-Sparking F Square Valve Handle
- Category:Marine Tools
- Material:Aluminum Bronze, Beryllium Copper
- Standards:DIN, ASME, QB/T2613.8-2005, GB/T 10686-2013, GS, FM
- Certificate:EACC, IAF
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details

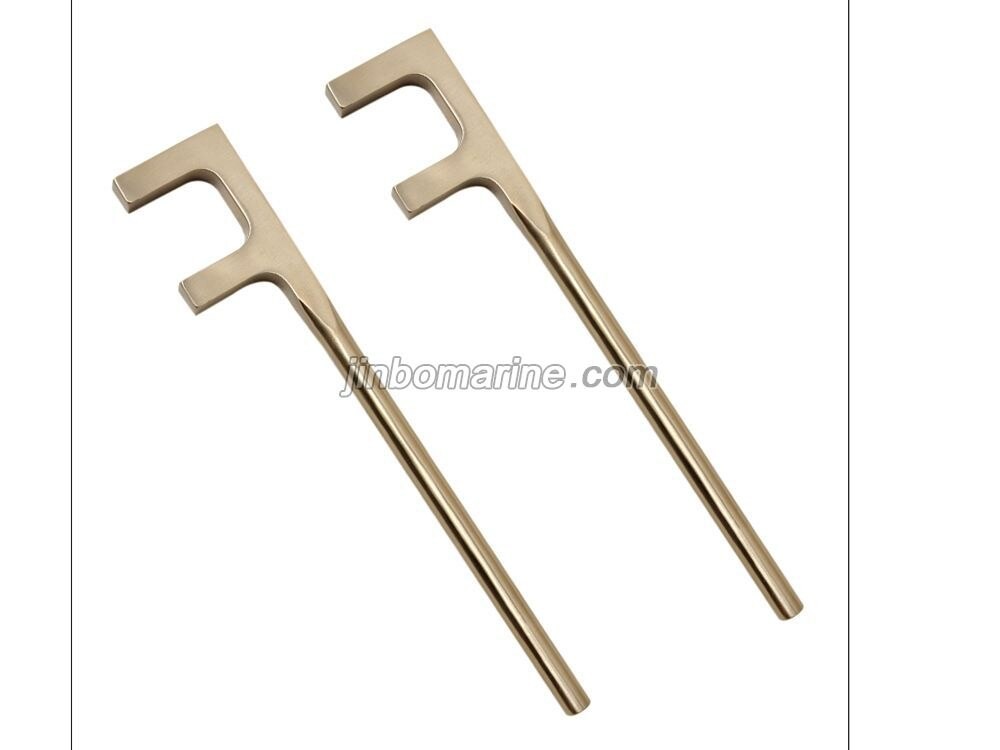

China Non-Sparking F Square Valve Handle:
TheseNon-Sparking F Square Valve Handle are made of Aluminum Bronze and Beryllium Copper, it is a high quality grade beryllium copper alloy material and a standard grade aluminum-bronze alloy. These tools are non-magnetic and non-corrosion, very suitable used for LPG and LNG vessels, and oil-gas industry etc.
|
S mm |
L mm |
H mm |
Weight (g) |
|
| Aluminum Bronze | Beryllium Copper | |||
| 30 | 200 | 44 | 340 | 405 |
| 35 | 250 | 49 | 410 | 465 |
| 40 | 300 | 50 | 540 | 595 |
| 45 | 350 | 61 | 762 | 835 |
| 48 | 375 | 62 | 790 | 865 |
| 50 | 400 | 67 | 815 | 892 |
| 55 | 450 | 73 | 1110 | 1270 |
| 60 | 500 | 79 | 1435 | 1570 |
| 65 | 550 | 80 | 1755 | 1920 |
| 70 | 600 | 80 | 1775 | 1945 |
| 75 | 650 | 85 | 2055 | 2245 |
| 80 | 700 | 91 | 2190 | 2405 |
| 85 | 750 | 97 | 2770 | 3050 |
| 90 | 800 | 103 | 3060 | 3360 |
| 93 | 850 | 107 | 3250 | 3553 |
| 96 | 900 | 110 | 3515 | 3870 |
| 100 | 1000 | 114 | 3795 | 4170 |
| 103 | 1200 | 120 | 5765 | 6330 |
