Non-Sparking Paws Type Valve Spanner With Flat Handle
- Category:Marine Tools
- Material:Aluminum Bronze, Beryllium Copper
- Standards:DIN, ASME, QB/T2613.8-2005, GB/T 10686-2013, GS, FM
- Certificate:EACC, IAF
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details

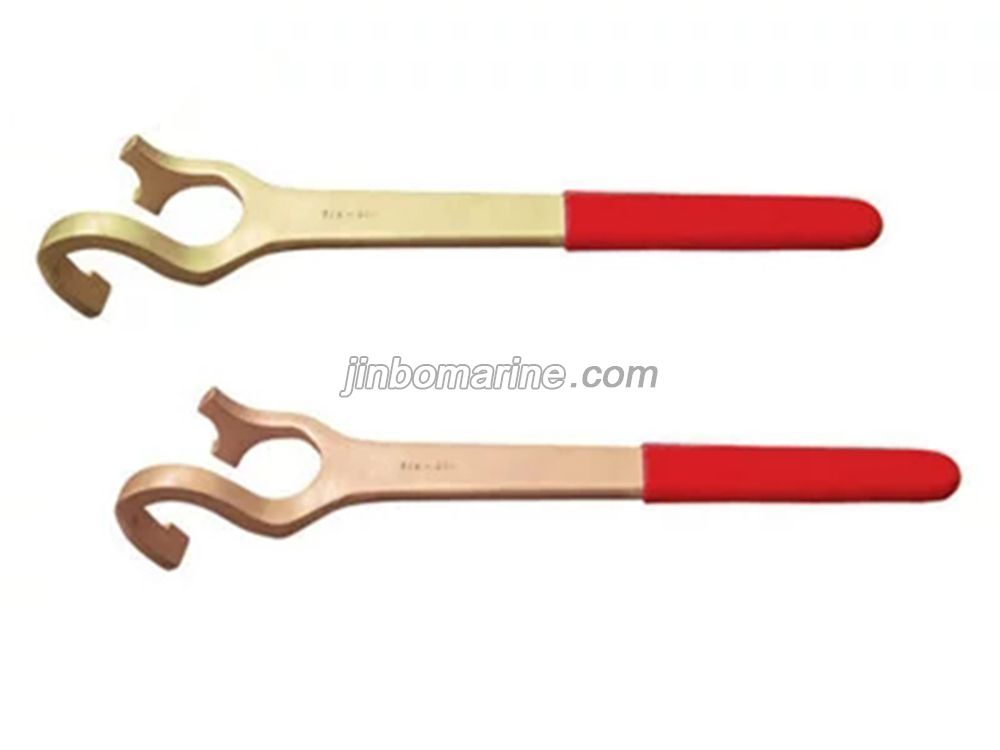

China Non-Sparking Paws Type Valve Spanner With Flat Handle:
These Non-Sparking Paws Type Valve Spanner With Flat Handle are made of Aluminum Bronze and Beryllium Copper, it is a high quality grade beryllium copper alloy material and a standard grade aluminum-bronze alloy. These tools are non-magnetic and non-corrosion, very suitable used for LPG and LNG vessels, and oil-gas industry etc.
|

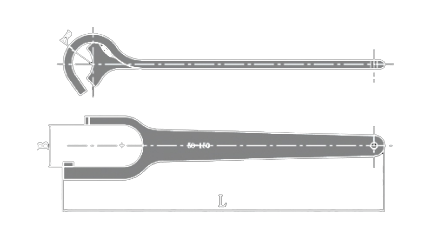

B mm |
R mm |
L mm |
Weight (g) |
|
| Aluminum Bronze | Beryllium Copper | |||
| 30 | 15 | 250 | 375 | 415 |
| 40 | 20 | 300 | 485 | 540 |
| 50 | 25 | 400 | 950 | 1050 |
| 60 | 30 | 550 | 1630 | 1800 |
| 130 | 65 | 750 | 4430 | 4900 |
